Description

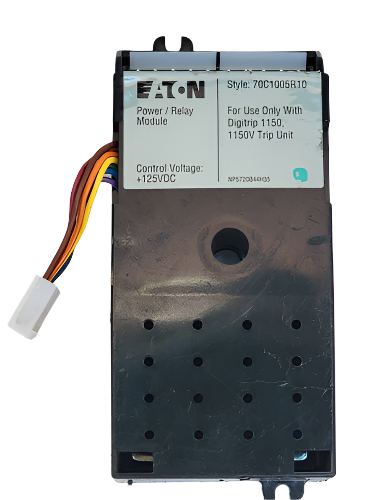

The 70C1005R10 is part of Eaton’s Power Relay Module line (Magnum series), engineered to support Digitrip™ 1150-series trip units in industrial circuit breakers.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Eaton |
| Category |
|
| Part Number |
70C1005R10 |
| Subcategory |
Relay Modules |
| Voltage |
120vAC
|
| Weight |
1.0 lbs |
| Compatible Trip Units |
Eaton Digitrip 1150 / +1150 |
| Mounting |
Magnum-series breaker frames |
| Typical Use Cases |
Remote trip, automation, interlocks |
Information About 70C1005R10
The 70C1005R10 is part of Eaton’s Magnum-series relay accessory line—compact, high-reliability modules designed to enable remote tripping and automation in power distribution systems. Specifically developed for use with Digitrip 1150 and +1150 trip units, this power relay module allows external control via a 120 VAC signal. It integrates directly into Magnum circuit breaker frames, adding automation flexibility without requiring extensive rewiring or panel modifications. Its rugged construction and straightforward installation make it a valuable component for upgrading industrial breaker systems with remote control capabilities.
Key Features:
- Trip Unit Integration: Designed for Eaton Digitrip 1150 and +1150 trip units, allowing remote or automated breaker tripping functionality.
- Remote Activation: Operates on a 120 VAC control signal, enabling simple integration into automated or interlocked protection schemes.
- Compact Form Factor: Field-installable module fits directly into Eaton Magnum breaker frames, with no additional external mounting required.
- Automation-Ready: Supports industrial applications needing coordinated protection, sequencing, or remote emergency shutdown.
- Durable Construction: Built for high-reliability in demanding power system environments—ideal for substations and switchgear panels.
- Legacy Support: Maintains backward compatibility with existing Magnum breakers, prolonging system life in retrofit scenarios.
- Tool-Free Mounting: Snap-in design simplifies field installation without additional hardware or wiring harness modifications.
- Availability: While discontinued by Eaton, the module remains available through authorized resellers and surplus suppliers.
- Weight: Approx. 1.0 lb (0.45 kg), compact enough for tight breaker compartments.
- Use Case: Common in industrial, commercial, and utility-grade breaker applications where external control or logic-based tripping is required.
The Eaton 70C1005R10 Power Relay Module provides a robust, field-proven solution for enabling remote trip functionality in Magnum breaker systems. It’s a practical upgrade or maintenance part for facility managers, OEMs, and service teams working with legacy Eaton infrastructure.
