Description

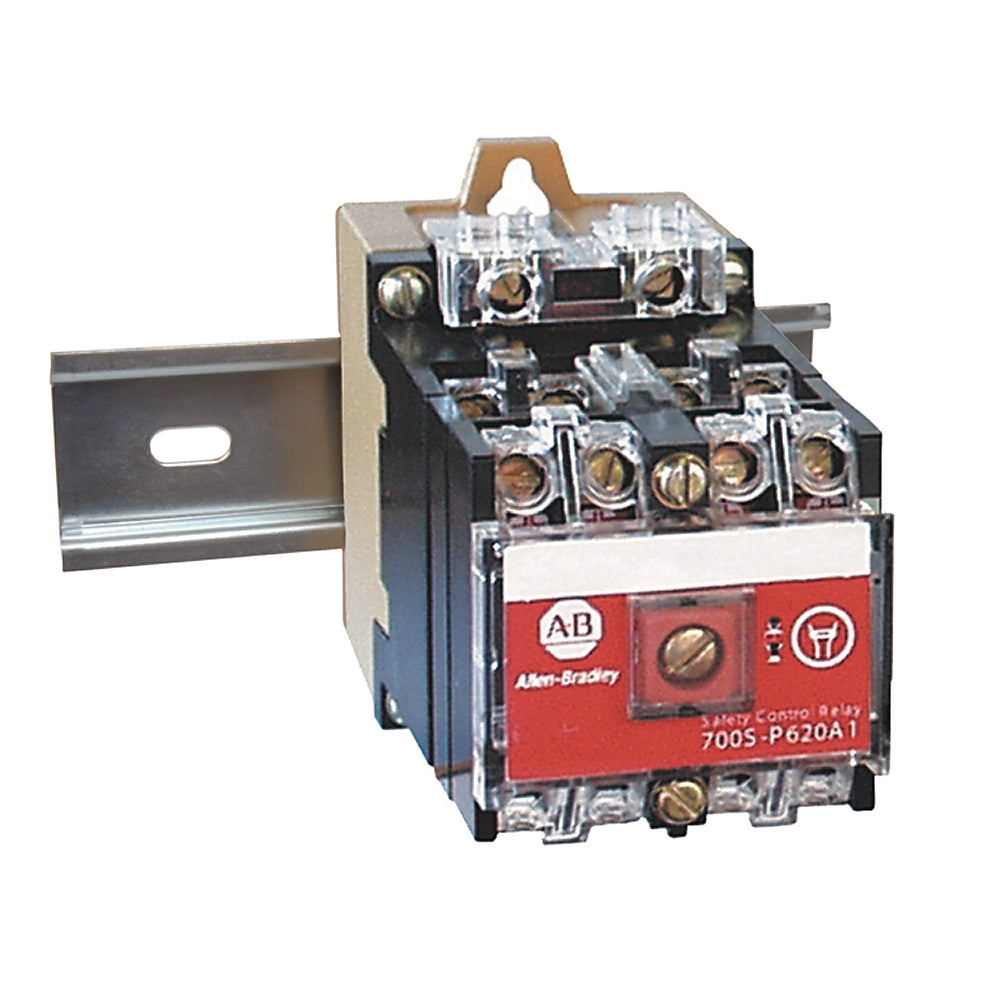

The Allen-Bradley 700S-DCP1020Z24 safety control relay is a high-reliability relay used in safety circuits and control systems requiring multiple contact configurations. With 12 total contacts (10 N.O. and 2 N.C.), it supports redundant control logic and secure signal switching.
Technical Specifications
|
Condition
|
New/Never Used Surplus
|
| Brand |
Allen-Bradley
|
|
Category
|
|
|
Part Number
|
700S-DCP1020Z24
|
| Subcatecory |
|
| Series |
700S-DCP |
| Function |
Safety Control Relay |
| Control Voltage |
24V DC |
| Contact Configuration |
10 N.O. / 2 N.C. |
| Number of Poles |
12 |
| Contact Rating |
10 A |
| Mounting Type |
DIN Rail |
| Enclosure Type |
Open Type |
| Weight |
1.54 kgs |
Information About 700S-DCP1020Z24
The 700S-DCP1020Z24 is a 12-pole safety control relay from the Allen-Bradley 700S-DCP series. It provides 10 normally open and 2 normally closed contacts and supports a control voltage of 24V DC. Rated for 10 amps, this relay is designed for DIN rail mounting and comes in an open-type configuration. The combination of high contact density and durable switching capacity makes it well-suited for use in critical control applications requiring multiple output paths.
Key Features:
-
12-Pole Configuration: Offers 10 normally open and 2 normally closed contacts for flexible control circuit design.
-
24V DC Coil Voltage: Standard control voltage for integration into DC-powered safety systems.
-
10A Contact Rating: Supports robust switching of loads up to 10 amps.
-
Open-Type Design: Suitable for installation within protective control enclosures.
-
DIN Rail Mounting: Allows for quick and secure installation within standard control panels.
-
Safety Circuit Application: Designed for safety relay logic, emergency stop functions, and interlocking systems.
The 700S-DCP1020Z24 ensures dependable operation in safety-related automation circuits with a high number of contact outputs.
