Description

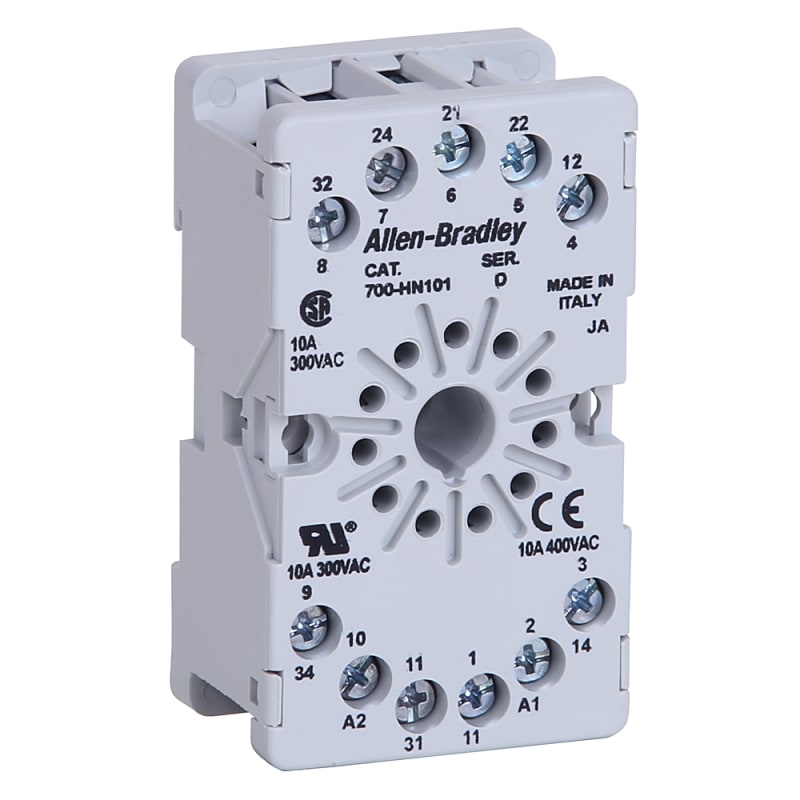

The Allen-Bradley 700-HN101 is an 11-pin relay socket designed for 700-series relays that require secure mounting and reliable electrical connection. This tube-base socket features guarded screw terminals and supports both panel and DIN-rail installation for flexible integration into control systems.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Allen-Bradley |
| Category |
Panel Accessories |
| Part Number |
700-HN101 |
| Subcategory |
Relay/Socket |
| Product Type |
Relay socket |
| Product Family |
700 Series |
| Base Type |
Tube base |
| Number of Pins |
11 |
| Current Rating |
10 A |
| Voltage Rating |
300/400 VAC |
| Terminal Style |
Screw terminal |
| Terminal Construction |
Guarded |
| Mounting Style |
Panel mount or DIN-rail mount |
| Compatible Relays |
700-HA33, 700-HR and similar 11-pin relays |
| Operating Use |
Relay interfacing and control circuit wiring |
| Housing Material |
Industrial-grade molded insulation |
| Wiring Access |
Front-accessible screw terminals |
| Application |
Control panels, automation systems, machinery wiring |
| Weight |
0.10 lbs |
Information About 700-HN101
The 700-HN101 is part of Allen-Bradley’s 700 Series relay accessory line, developed to ensure dependable mounting and wiring of plug-in relays such as the 700-HA33 and 700-HR families. Its guarded terminal design improves safety by reducing accidental shorts during installation and maintenance. The socket supports 10-amp load currents and is rated for 300/400 VAC operation, making it suitable for industrial control panels, automation equipment, and electrical distribution assemblies. With support for both DIN-rail and panel mounting, the unit adapts easily to modern or legacy enclosure layouts.
Key Features:
- 11-Pin Tube Base: Designed to accept compatible 700-series plug-in relays.
- Guarded Screw Terminals: Protects wiring points to reduce short-circuit risk during installation and servicing.
- 10 A Current Rating: Supports moderate switching loads common in control and automation applications.
- 300/400 VAC Voltage Rating: Suitable for industrial-grade relay interface circuits.
- Panel or DIN-Rail Mounting: Installs easily in new or existing control panel layouts.
- Screw-Clamp Connections: Provides secure mechanical and electrical termination for field wiring.
- Durable Insulating Base: Tube-base construction improves heat resistance and mechanical longevity.
- Compatible With Multiple Relays: Works with devices such as 700-HA33 and 700-HR plug-in relays.
- Compact Form Factor: Fits control cabinets with limited space while maintaining wiring accessibility.
- Industrial-Grade Build: Designed for continuous-duty environments with high vibration or electrical noise.
The 700-HN101 delivers the reliability and precision required for relay socketing in industrial automation and control systems.
