Description

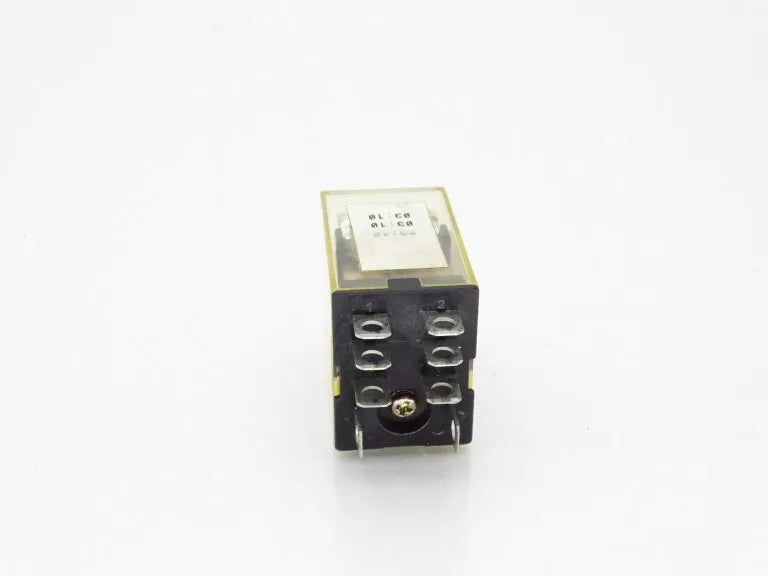

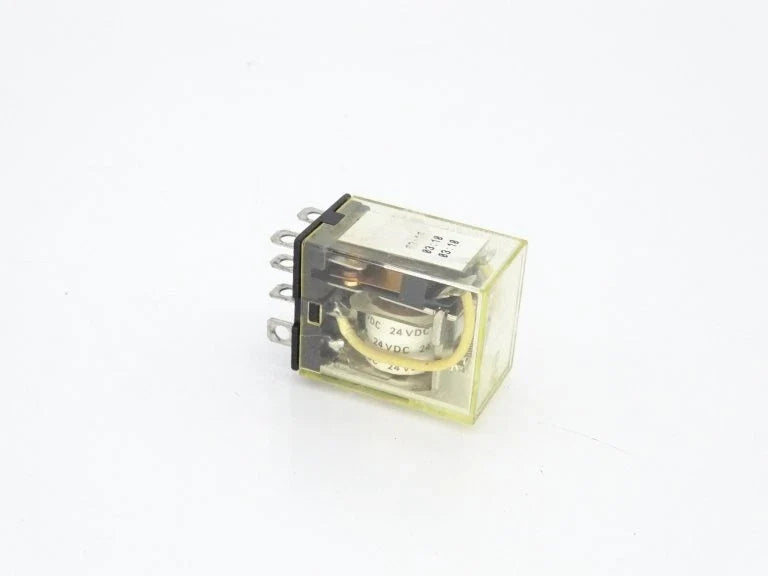

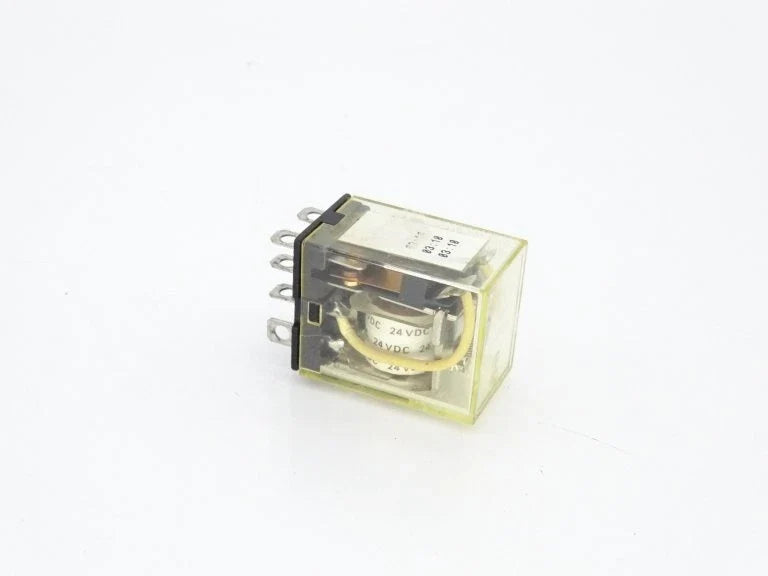

The 700-HF32Z24 is a compact miniature square base relay from Allen-Bradley, featuring a 24V DC coil and double-pole double-throw (DPDT) contact configuration.





Technical Specifications

Condition	New/Never Used Surplus
Brand	Allen-Bradley
Category	Panel Accessories
Part Number	700-HF32Z24
Subcatecory	Relay/Socket
Amperage	12 Amp
Contact Configuration	2 NO, 4 NC
Standard	CCC,KC
Voltage	24 VDC
Coil Voltage	24 V
Contact Rating	10 Amp Standard Contact
Weight	0.10 lbs





Information About 700-HF32Z24

The Allen-Bradley 700-HF32Z24 is a general-purpose miniature square base relay, designed for reliable performance in industrial control applications. It features a 24V DC coil and a double-pole double-throw (DPDT) contact configuration, providing versatile switching capabilities.

Key Features:

• Contact Configuration: DPDT (2 Form C)

• Coil Voltage: 24V DC

• Contact Rating:

  • Resistive Load: 12 A @ 250 V AC; 12 A @ 30 V DC

  • Inductive Load: 0.5 A @ 110 V DC; 0.25 A @ 220 V DC

• Power Consumption: 1 W (DC)

• Mechanical Life: 20 million operations

• Operating Time:

  • Pickup: 8 ms

  • Dropout: 3 ms

• Mounting: Plug-in with 8-blade socket (e.g., 700-HN116 or 700-HN262)

• Operating Temperature: –40 to +70 °C (–40 to +158 °F)

• Certifications: UL Recognized, CSA Certified, CE Marked

The relay's compact design and plug-in mounting facilitate easy installation and maintenance, making it suitable for various control panel applications. Its robust construction ensures durability and consistent performance in demanding industrial environments.
