Description

The Allen-Bradley 700-HC24Z24-4 is a general-purpose (GP) ice cube relay designed for industrial control applications.





Technical Specifications

Condition	New/Never Used Surplus
Brand	Allen-Bradley
Category	Relay/Socket
Part Number	700-HC24Z24-4
Subcategory	Panel Accessories
Amperage	7 Amp
Contact Configuration	4 NO, 8 NC
Standard	CCC,CE,CSA,CUL,KC,UL
Coil Voltage	24 V
Contact Rating	Silver Contacts
Type	Ice Cube
Weight	0.32 lbs





Information About 700-HC24Z24-4

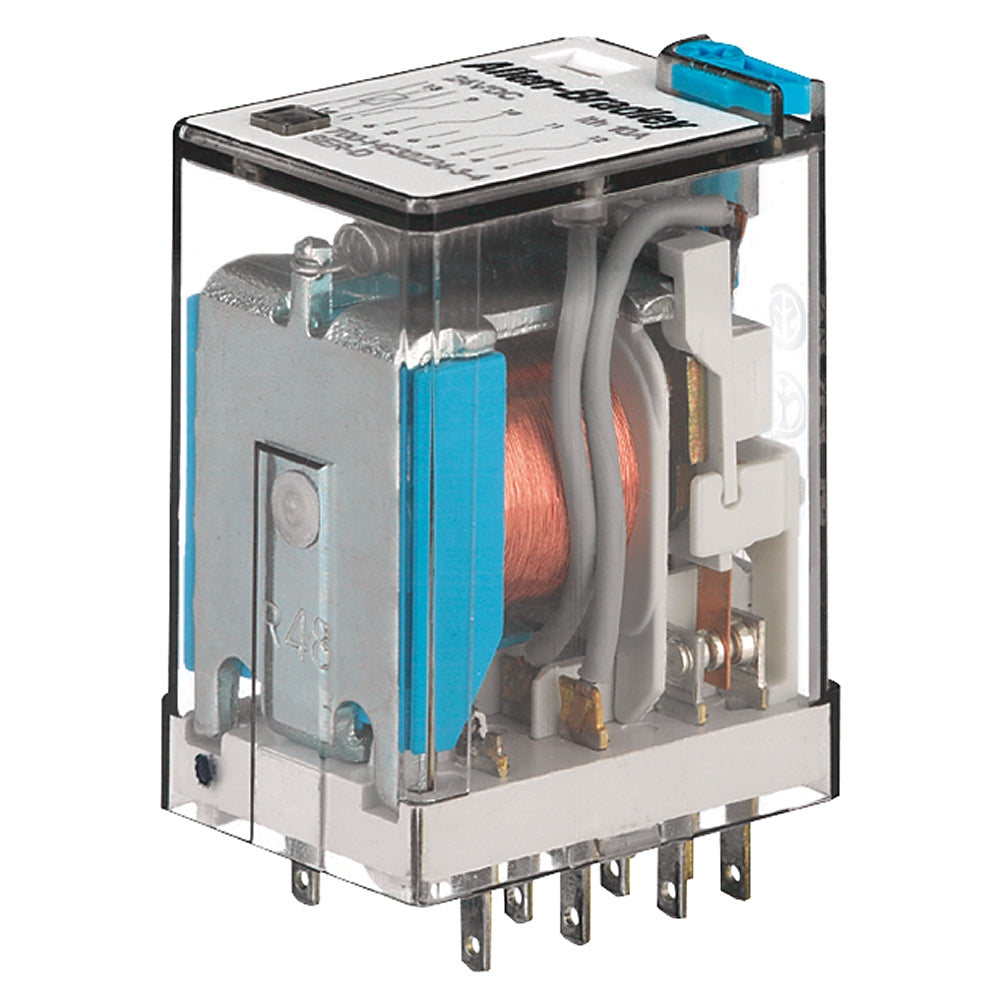

The Allen-Bradley 700-HC24Z24-4 is a general-purpose plug-in relay from the 700-HC Series, commonly referred to as an "ice cube" relay due to its compact, translucent enclosure. Designed for use in industrial control systems, this model features a 4-pole double-throw (4PDT) contact configuration and a 24V DC coil, offering reliable control for a wide range of signaling, automation, and switching applications.

Key Features:

Coil Specifications:

• Coil Voltage: 24V DC

• Power Consumption: Low power draw for energy efficiency

• Indicator Light: Built-in LED for coil status indication (varies by model)

Contact Configuration:

• Contact Type: 4PDT (Four Pole Double Throw)

• Number of Contacts: 4 Form C (SPDT x4)

• Contact Rating:

  • 10 A @ 240V AC / 28V DC (resistive load)

  • Suitable for both AC and DC control circuits

Design and Mounting:

• Plug-in base design for quick installation and replacement

• Compatible with DIN-rail and panel-mount sockets

• Compact size suitable for dense control panel layouts

• Transparent housing for visual contact inspection

Durability and Reliability:

• Mechanical life: Up to 10 million operations

• Electrical life: 100,000 operations at full load (varies by load type)

• Contacts made from durable, silver alloy for high switching reliability

Standards and Compliance:

• UL, CSA, CE certified

• RoHS compliant

• Meets IEC 61810 standards for control relays

The Allen-Bradley 700-HC24Z24-4 relay is a compact, versatile switching solution for a wide range of industrial control applications. With a 24V DC coil, 4PDT contacts, and plug-in compatibility, it ensures fast installation, reliable performance, and simplified maintenance. Ideal for control panels, automation systems, and general-purpose switching tasks, it offers trusted durability and global compliance in a space-saving form factor.
