Description
The Allen-Bradley 1492-N90 is a terminal block screwdriver featuring a hardened 3 mm diameter blade. It's designed for use with 5 mm and 6 mm wide terminal blocks, making it suitable for various industrial control wiring applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Allen-Bradley |
| Category |
|
| Part Number |
700-HA33Z24 |
| Subcategory |
|
| Amperage |
10 Amp |
| Contact Configuration |
4 NO, 2 NC
|
| Standard |
|
| Voltage |
24 VDC
|
| Contact Rating |
10 Amp Standard Contact
|
| Type |
Tube Base
|
| Poles |
3
|
| Frequency |
50/60 HZ
|
| Type of Electrical Connection |
Plug-in
|
| Base Style |
Tube
|
| Number of Pins |
11
|
| Weight |
0.18 lbs
|
Information About 700-HA33Z24

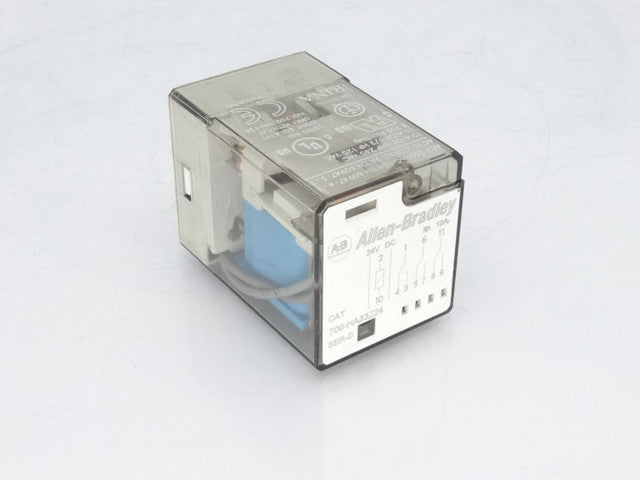

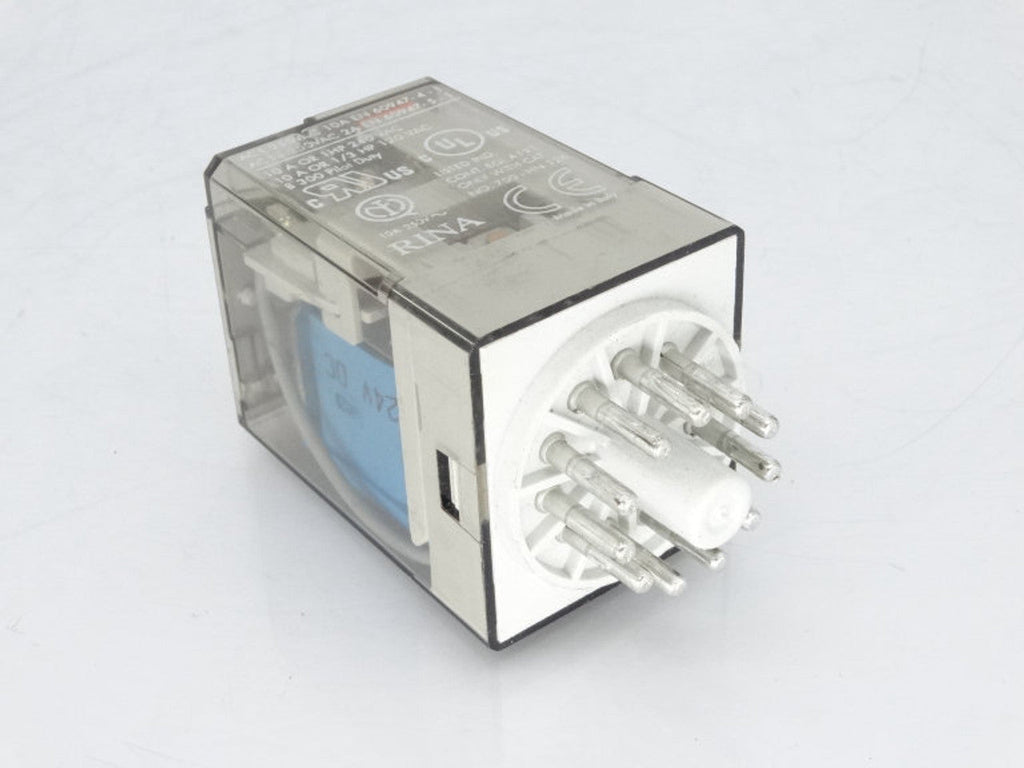

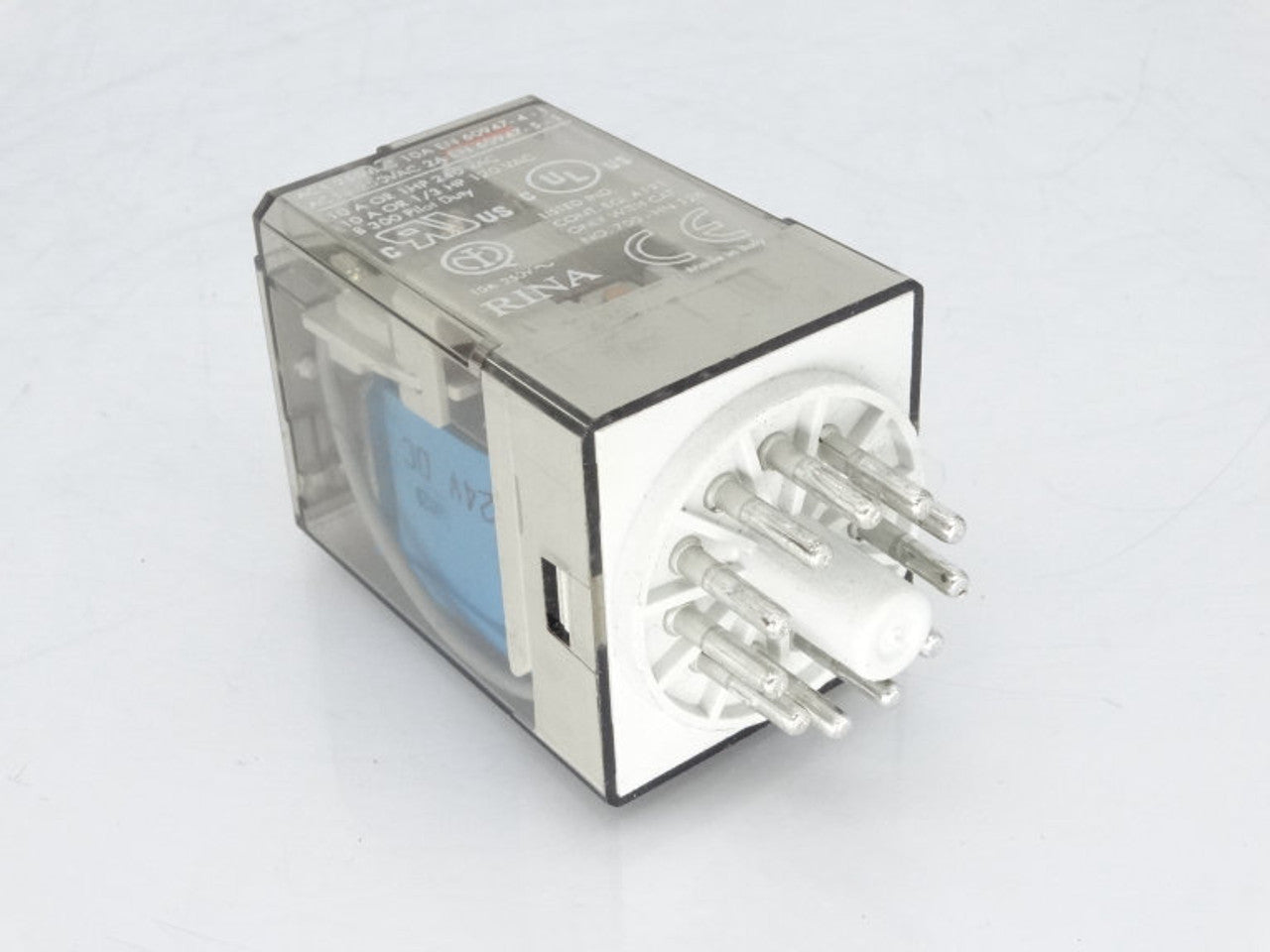

The Allen-Bradley 700-HA33Z24 is a general-purpose tube base relay designed for industrial control applications.
Key Features:
-
Contact Configuration: 3PDT (Three Pole Double Throw)
-
Coil Voltage: 24 V DC
-
Contact Rating: 10 A at 250 V AC (AC-1)
-
Base Type: 11-pin plug-in
-
Additional Options: Variants may include push-to-test button, manual override, and LED status indicator
-
Contact Material: Silver Nickel (AgNi)
-
Mechanical Life: 50 million operations
-
Electrical Life: 100,000 cycles at rated load
-
Operating Temperature: -40°C to +70°C
-
Protection Rating: IP40
-
Mounting: Plug-in socket compatible
This relay is part of the 700-HA series, suitable for applications in machine tools, pulp and paper, and transportation industries. It offers reliable performance with options for enhanced functionality depending on the specific variant.
