Description

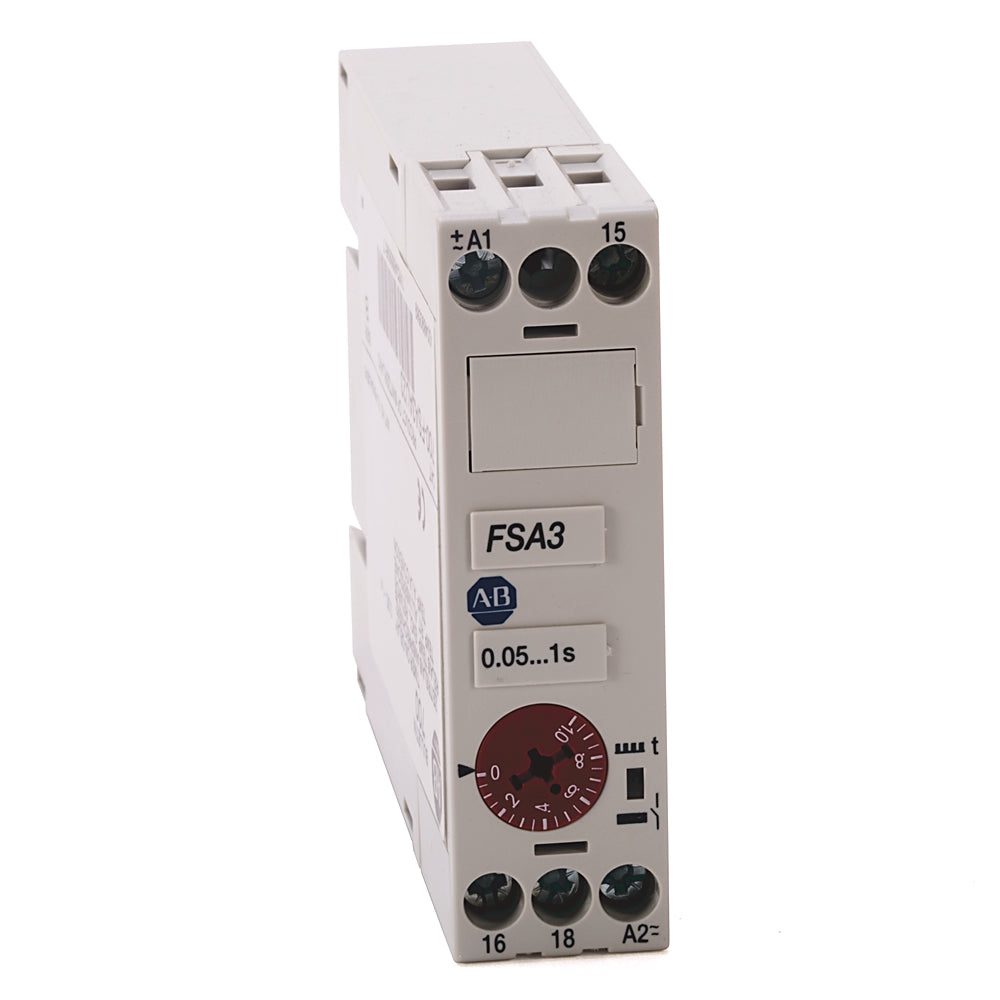

The Allen-Bradley 700-FSK3CU23 is a high-performance timing relay designed for precision time delay functions in industrial automation systems. It supports DIN rail mounting and offers dependable timing control in a wide voltage range.
Technical Specifications
|
Condition
|
New/Never Used Surplus
|
| Brand |
Allen-Bradley
|
|
Category
|
|
|
Part Number
|
700-FSK3CU23
|
| Subcatecory |
|
| Series |
700-FS Series |
| Function Type |
One Shot / Watchdog (Pulse Controlled) |
| Time Range |
0.5 – 10 seconds |
| Output Contacts |
1 C/O (SPDT) |
| Input Voltage |
24–48V DC / 24–240V AC 50/60Hz |
| Mounting Type |
DIN Rail |
| Contact Rating |
Standard Industrial |
| Enclosure Type |
Open Style |
| Weight |
0.09 kgs |
Information About 700-FSK3CU23
The 700-FSK3CU23 is part of the Allen-Bradley 700-FS series — a line of general-purpose, high-performance timing relays built to deliver reliability and versatility in automation applications. This specific model supports pulse-controlled “one-shot” and “watchdog” timing functions, making it suitable for monitoring events that require quick, repeatable timing precision. It features a single changeover contact (SPDT) output and a timing range from 0.5 to 10 seconds, adjustable via the front dial.
Key Features:
-
Timing Function: One Shot / Watchdog (Pulse Controlled): Ensures reliable and accurate time-based control of industrial processes.
-
Time Range: 0.5 – 10 Seconds: Adjustable delay range suited for short-cycle timing operations.
-
Output: 1 C/O Contact (SPDT): Provides flexible switching for various control signals or devices.
-
Wide Input Voltage Range: Operates with both 24–48V DC and 24–240V AC at 50/60Hz, enhancing installation flexibility.
-
Mounting Type: DIN Rail: Designed for simple and secure mounting in control cabinets or enclosures.
The 700-FSK3CU23 offers efficient time delay control with versatile voltage compatibility and a compact footprint for modern automation panels.
