Description

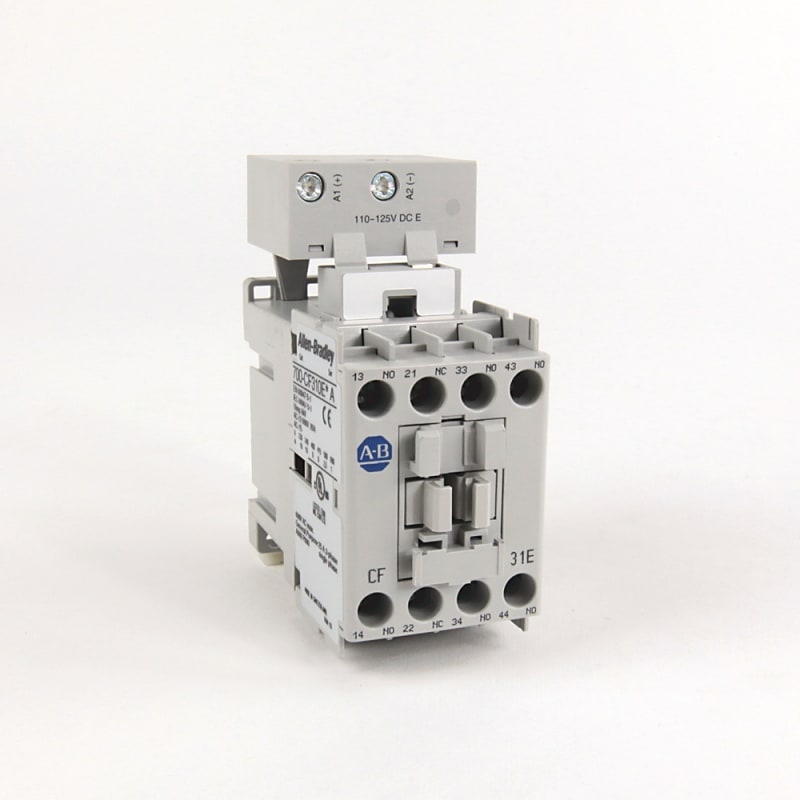

The Allen-Bradley 700-CF310EJ is an industrial control relay designed for reliable performance in demanding applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Allen-Bradley
|
| Category |
Contactors & Starters |
| Part Number |
700-CF310EJ
|
| Subcategory |
Contactors & Starters
|
|
Amperage
|
10 Amp |
| Coil Voltage |
24 V |
Contact Configuration
|
|
|
Split Crucible
|
S |
| TC Connection |
Screw Terminals |
| Blade Dimensions |
45 mm W x 80.5 mm D x 81 mm H |
| Standard |
C-TICK,CCC,CE,CSA,CUL,KC,UL |
| Weight |
0.79 lbs |
Information About 700-CF310EJ
The Allen-Bradley 700-CF310EJ is an industrial relay designed to deliver dependable switching and control performance in automation systems. As part of the 700-CF series by Allen-Bradley, it’s built for versatility and long service life in demanding industrial environments.
Key Features:
-
Contact Configuration: The 700-CF310EJ features a 3 Normally Open (NO) and 1 Normally Closed (NC) contact arrangement, making it adaptable for a variety of control circuit requirements.
-
Coil Voltage: It operates on 24V DC, providing compatibility with standard industrial power supplies.
-
Integrated Diode: Equipped with an internal diode for coil suppression, it minimizes voltage spikes and enhances reliability.
-
Mounting: This relay offers both DIN-rail and panel (screw) mounting options, supporting flexible installation in control panels.
-
Terminal Type: Screw terminals ensure secure and straightforward wiring for safe and consistent connections.
-
Contact Ratings: Rated for 10 A at 240V AC (AC-15) and 6 A at 400V AC (DC-13), meeting NEMA A600 and Q600 standards.
-
Electrical Life: Engineered for approximately 1.5 million operations at 240V/3A (AC-15), ensuring long-term electrical performance.
-
Mechanical Life: Capable of up to 15 million operations, it’s built to endure frequent switching cycles.
-
Shock Resistance: Withstands shocks up to 30 G per IEC 60068-2, maintaining performance in high-vibration environments.
-
Vibration Resistance: Functions reliably under vibrations up to 2 G, with no malfunction below 5 G.
-
Operating Temperature Range: Designed for operation in temperatures from -40°C to +75°C (-40°F to +167°F), accommodating a broad range of industrial environments.
-
Storage Temperature Range: Supports storage temperatures from -55°C to +80°C (-67°F to +176°F).
-
Altitude Tolerance: Performs effectively at altitudes up to 2000 meters (6561 ft) above sea level.
The Allen-Bradley 700-CF310EJ relay offers reliable control and switching capabilities for industrial environments, combining durable construction with versatile features to meet the needs of complex automation systems.
