Description

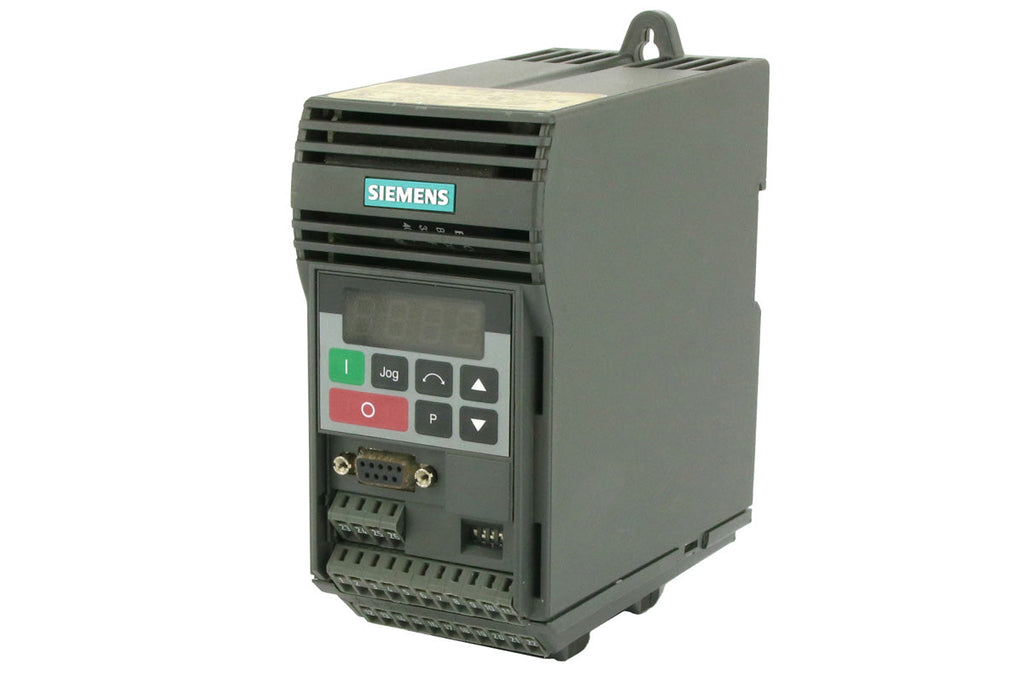

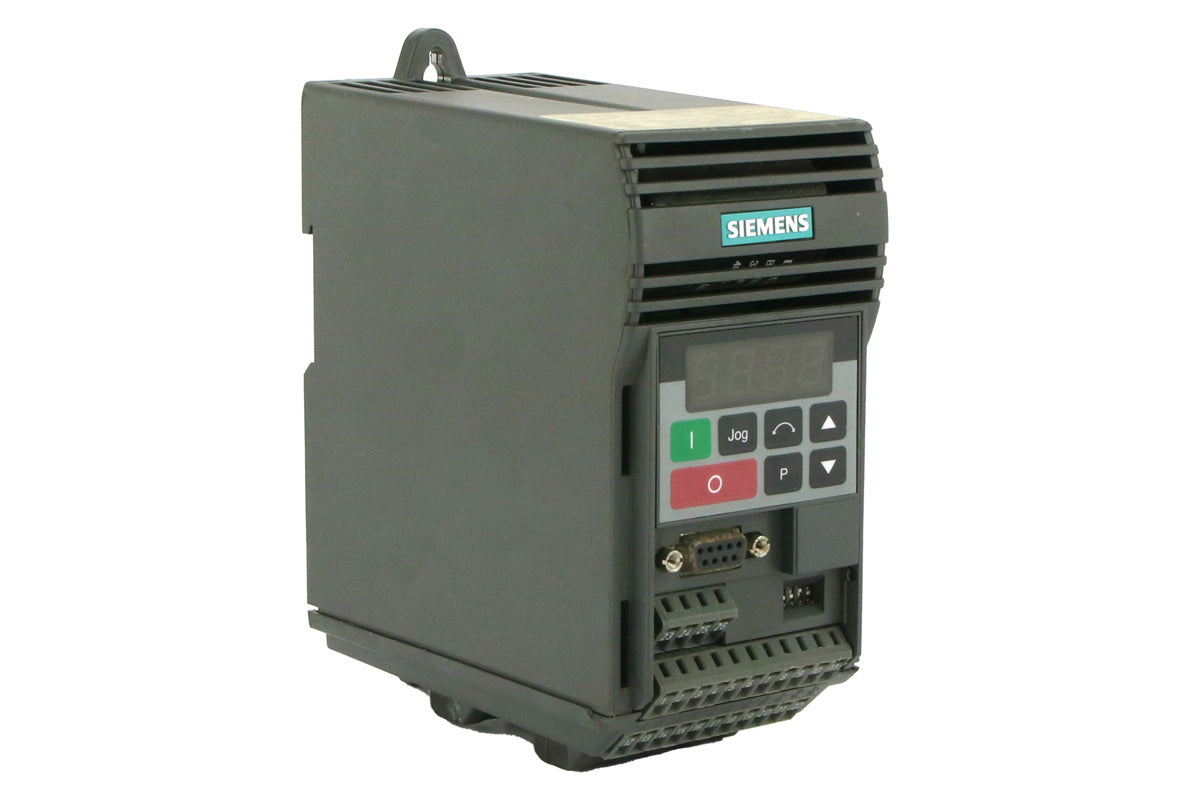

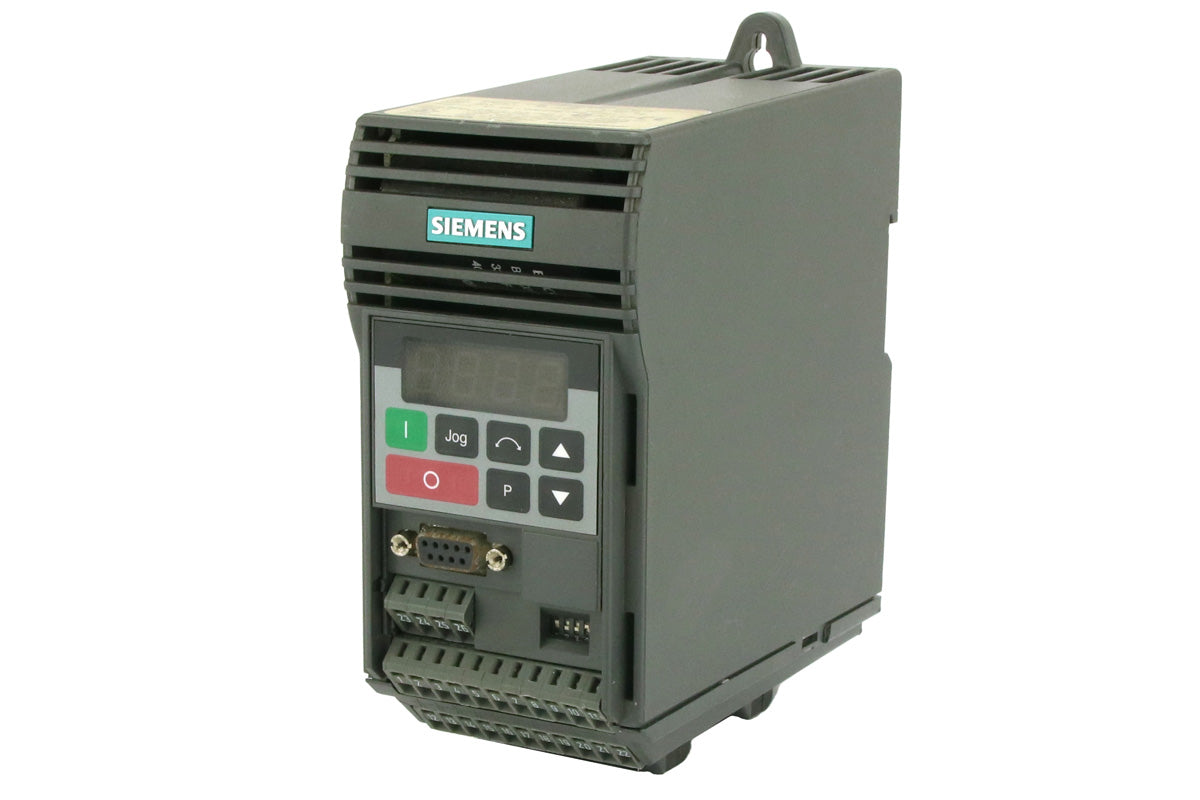

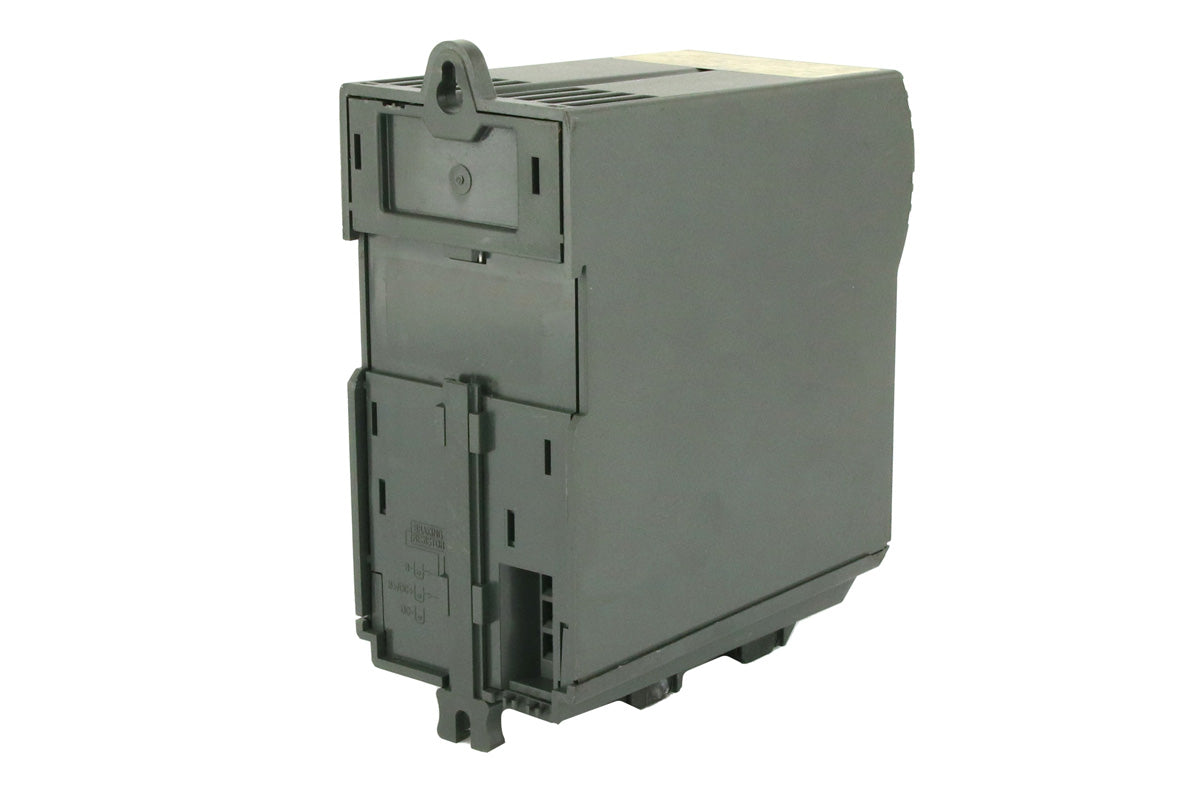

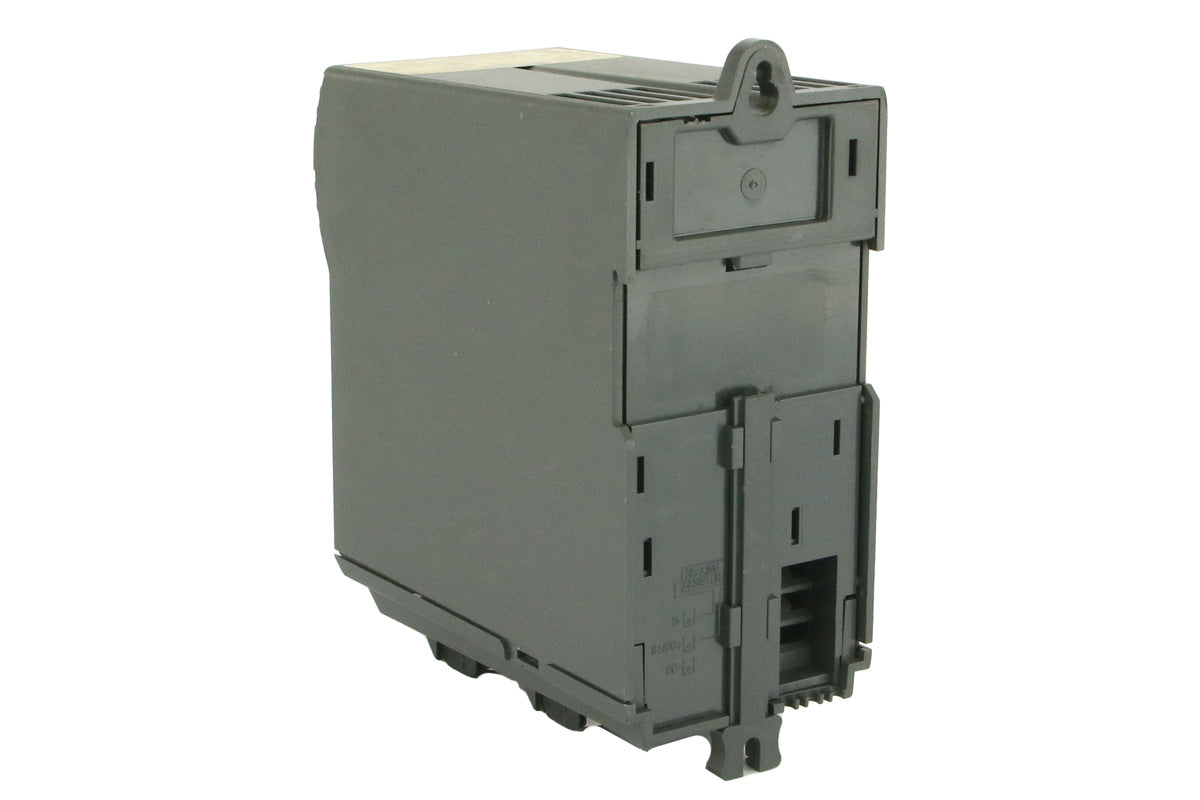

The Siemens 6SE3213-6BA40 is a MICROMASTER Vector MMV AC drive designed for single-phase 230 VAC operation. It provides 0.75 kW (1 HP) constant torque output with integrated Class A filtering, delivering precise motor speed control and reliable performance for industrial automation systems.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Siemens |
| Category |
Motor Control |
| Part Number |
6SE3213-6BA40 |
| Subcategory |
AC Drive |
| Series |
MICROMASTER Vector MMV |
| Power Rating (Constant Torque) |
0.75 kW (1 HP) |
| Input Voltage |
1 AC 208–240 V ±10% |
| Input Frequency |
50/60 Hz |
| Current Rating |
3.6 A |
| Output Frequency Range |
0–400 Hz |
| Overload Capacity |
150% for 60 s / 200% for 3 s |
| Protection Rating |
IP20 |
| Filter Type |
Built-In Class A Filter |
| Torque Type |
Constant Torque |
| Cooling Method |
Natural Convection |
| Control Method |
Vector Control |
| Ambient Temperature Range |
0–50°C |
| Communication Interfaces |
PROFIBUS, PROFINET, Ethernet/IP |
| Processor Type |
CPU 312-2 PN/DP (32-bit, 25 MHz) |
| Program Memory |
128 KB |
| Data Memory |
64 KB |
| Power Supply (Processor Unit) |
24 V DC, 1.5 A Max |
| Dimensions (H x W x D) |
175 × 73 × 141 mm |
| Mounting Type |
Panel-Mount |
| Weight |
0.95 lbs |
Information About 6SE3213-6BA40
The 6SE3213-6BA40 belongs to Siemens’ MICROMASTER Vector MMV series, designed to provide advanced variable-speed motor control in single-phase industrial systems. It supports precise speed and torque regulation through vector control technology, ensuring stable performance under constant torque loads. Equipped with an integrated Class A filter, it minimizes electromagnetic interference, making it suitable for noise-sensitive environments. The unit features a compact IP20-protected housing and supports communication protocols such as PROFIBUS, PROFINET, and Ethernet/IP for integration with Siemens PLCs and automation systems. With reliable overload capacity and efficient heat management, it ensures durability and consistent operation in industrial applications.
Key Features:
- Advanced Vector Control Technology: Delivers high precision in motor speed and torque regulation, ensuring optimal performance under constant torque conditions.
- Built-In Class A Filter: Reduces electrical noise and interference for compliance with industrial EMC standards.
- Wide Input Voltage Range: Operates on single-phase 208–240 V AC, suitable for flexible installation in small systems.
- High Overload Capacity: Handles up to 150% overload for 60 seconds or 200% for 3 seconds, maintaining stability during demanding load conditions.
- Integrated Communication Support: Offers connectivity via PROFIBUS, PROFINET, and Ethernet/IP for seamless automation integration.
- Compact IP20 Design: Allows easy panel installation and reliable operation in limited-space control cabinets.
- Efficient 32-bit Processor: Ensures accurate command execution and improved response times in automation environments.
- Environmentally Robust: Operates effectively across temperatures from 0°C to 50°C with consistent power output.
The 6SE3213-6BA40 delivers the reliability and precision required for industrial motor control, ensuring efficient drive performance and seamless automation integration.
