Description

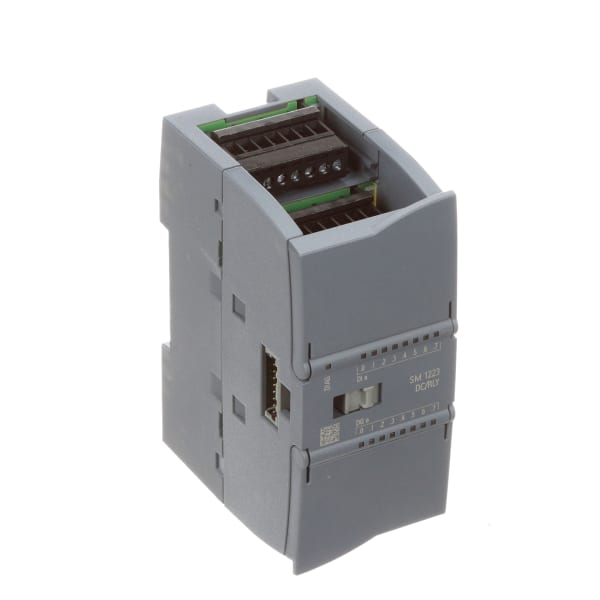

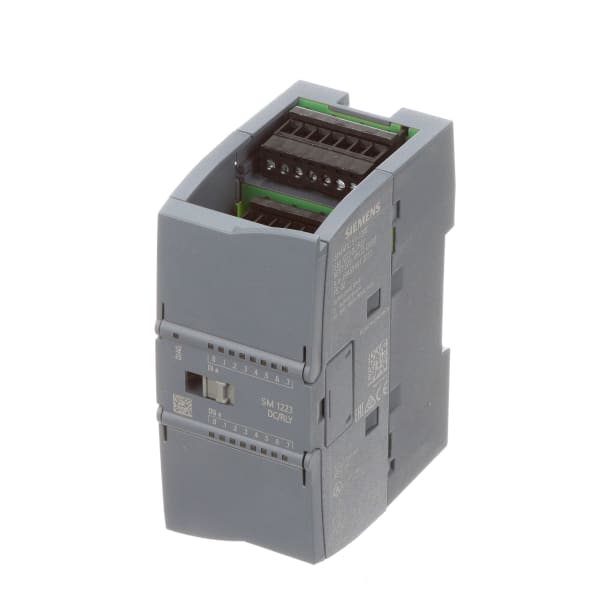

The Siemens 6ES7223-1PH32-0XB0 is a digital I/O expansion module from the SIMATIC S7-1200 automation system series. Featuring 8 digital inputs and 8 relay outputs, this compact module is designed to extend the I/O capacity of an S7-1200 PLC, providing versatile connection options for field devices in industrial automation applications.
Technical Specifications
|
Condition
|
New/Never Used Surplus
|
| Brand |
Siemens
|
|
Category
|
|
|
Part Number
|
6ES7223-1PH32-0XB0
|
| Subcatecory |
|
| Series |
SIMATIC S7-1200 |
| Module Type |
Digital I/O Module (SM 1223) |
| Digital Inputs |
8 x 24 V DC (Sink/Source) |
| Digital Outputs |
8 x Relay Outputs (2 A each) |
| Output Type |
Relay |
| Mounting |
DIN Rail |
| Terminal Type |
Removable Connectors |
| Net Weight (kg) |
0,218 Kg |
| Packaging Dimension |
8,90 x 11,10 x 5,70 |
| Package size unit of measure |
CM |
Information About 6ES7223-1PH32-0XB0
The 6ES7223-1PH32-0XB0, also known as SM 1223, is engineered for seamless integration with SIMATIC S7-1200 CPUs. It offers 8 digital inputs rated at 24 V DC, supporting both sink and source wiring, and 8 relay outputs rated for 2 A per channel, allowing the switching of higher-current loads such as solenoids, contactors, and lamps.
Key Features:
-
8 Digital Inputs (24 VDC): Compatible with a variety of field sensors.
-
8 Relay Outputs (2 A): Enables control of actuators and switching devices.
-
Sink/Source Input Wiring: Flexible wiring options for different configurations.
-
Designed for SIMATIC S7-1200: Fully compatible and auto-detectable by the CPU.
-
Compact and DIN Rail Mountable: Space-saving installation in control cabinets.
-
Removable Terminals: Simplifies installation and maintenance procedures.
The 6ES7223-1PH32-0XB0 is a robust and flexible I/O module that enhances automation solutions by offering additional digital channels for both monitoring and control tasks.
