Description
The 609-BAW is a manual motor starting switch designed for simple, reliable control of small motors. It features a toggle-type ON/OFF mechanism, suitable for single-phase applications up to 1 HP at 115V or 2 HP at 230V.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Allen-Bradley
|
| Category |
|
| Part Number |
609-BAW
|
| Subcatecory |
|
| Blade Dimensions |
371 mm W x 104 mm D x 231 mm H |
Enclosure Rating
|
1 |
| NEMA Size |
1 |
| Operator Type |
Push Button |
| Split Crucible |
S |
| Type |
Direct |
| Control Voltage |
380 - 415 VAC at 50 Hz, 200 - 575 VAC at 60 Hz |
| Enclosure Type |
Door Screw Fastener,External Reset,Painted Metal,Type 1 General Purpose |
| Number of Phases |
3,3 Phase |
| Size |
NEMA 1 |
| Standard |
CE,CSA,CUL,KC,UL |
| Weight |
3.90 lbs |
Information About 609-BAW

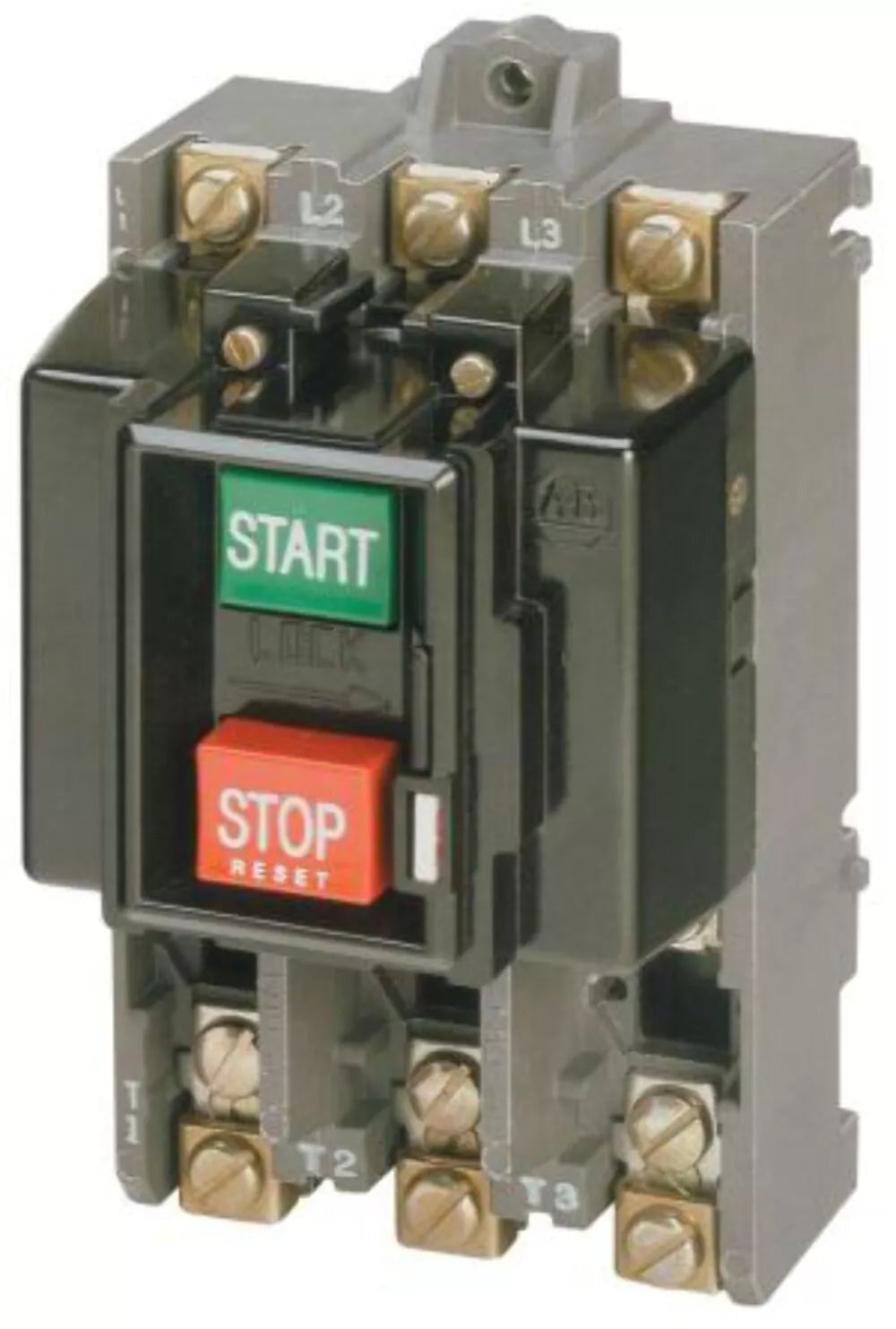

The Allen-Bradley 609-BAW is a NEMA Size 1 manual motor starter designed for straightforward, reliable control of three-phase motors. It features a push-button operator and is enclosed in a NEMA Type 1 general-purpose enclosure suitable for surface mounting. This starter is ideal for applications where remote control and undervoltage protection are not required, providing full-voltage starting and thermal overload protection.
Key Features:
-
Operator Type: Push-button
-
Phases: Three-phase
-
NEMA Size: 1
-
Enclosure Type: NEMA Type 1 (general-purpose), surface mounting
-
Voltage Rating: 200–575V AC
-
Maximum Horsepower:
-
7.5 HP at 200V AC (60 Hz)
-
10 HP at 380–415V AC (50 Hz)
-
10 HP at 460–575V AC (60 Hz)
-
Mounting: Surface mount
-
Certifications: UL Listed, CSA Certified
