Description

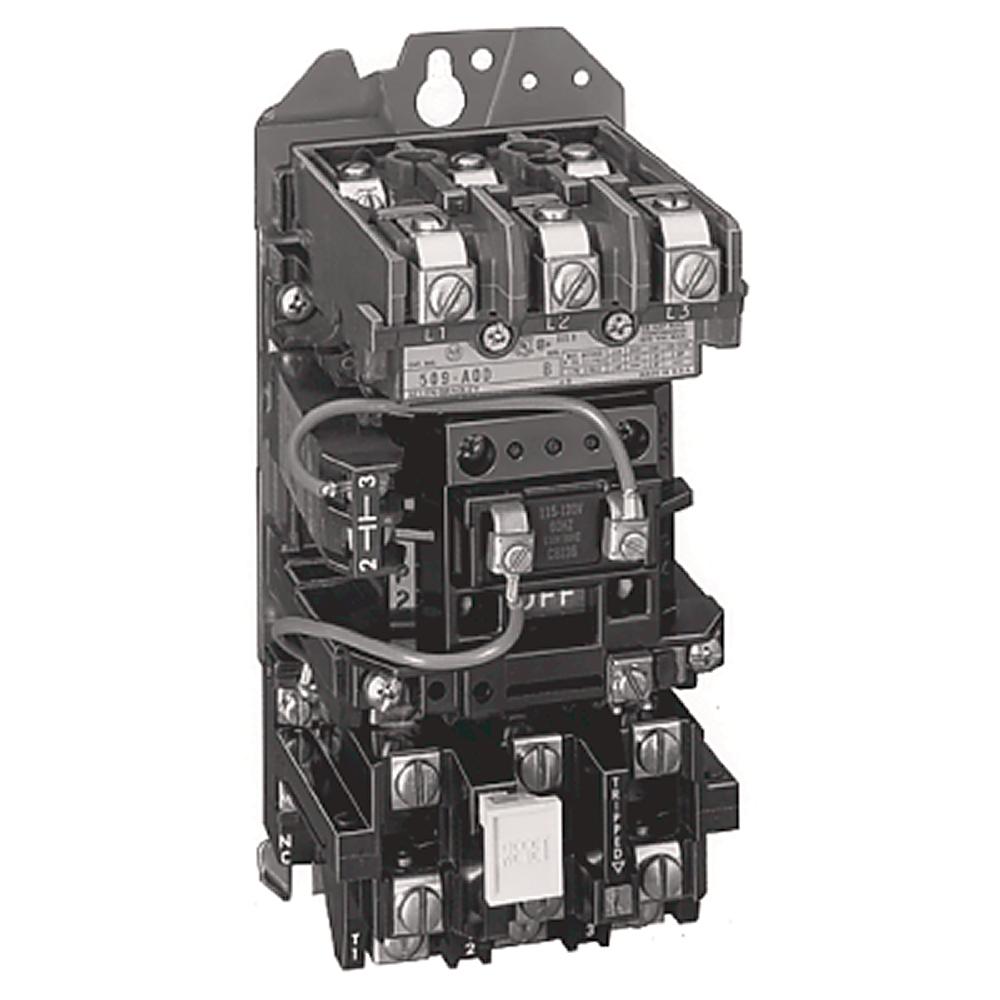

The Allen-Bradley 509-TOD is a Full Voltage Non-Reversing Starter designed for reliable motor control in industrial environments. It provides a compact and efficient solution for starting three-phase motors.
Technical Specifications
|
Condition
|
New/Never Used Surplus
|
| Brand |
Allen-Bradley
|
|
Category
|
|
|
Part Number
|
509-TOD
|
| Subcatecory |
Contactor & Starter Accessories & Parts
|
| Voltage |
110–120 VAC |
| Coil Voltage |
120 VAC 60 Hz / 110 VAC 50 Hz |
| Amperage |
9 Amp |
| Number of Phases |
3 Phase |
| Overload Protection |
Eutectic Alloy Relay |
| Enclosure Type |
Open |
| Standards |
CSA, CUL, KC, MARINE, UL |
| Weight |
2.2800 lb |
Information About 509-TOD
The 509-TOD is part of Allen-Bradley's line of NEMA motor starters and is built to deliver consistent performance in full-voltage applications. This model is NEMA Size 00 and features an open-type enclosure. It includes a eutectic alloy overload relay for thermal protection and operates with a 120 VAC coil at 60 Hz. Ideal for use in machine control panels where compact, non-reversing motor starters are needed.
Key Features:
-
NEMA Size 00 Design: Compact and efficient for small motor applications.
-
Full Voltage Starting: Simplifies motor start-up with direct line connection.
-
Eutectic Alloy Overload Relay: Provides reliable protection against overloads.
-
Open-Type Enclosure: For panel mounting or integration into enclosed systems.
-
120 VAC Coil (60 Hz): Standard voltage for industrial motor control panels.
This non-reversing starter is built to provide dependable motor control for small three-phase systems.
