Description

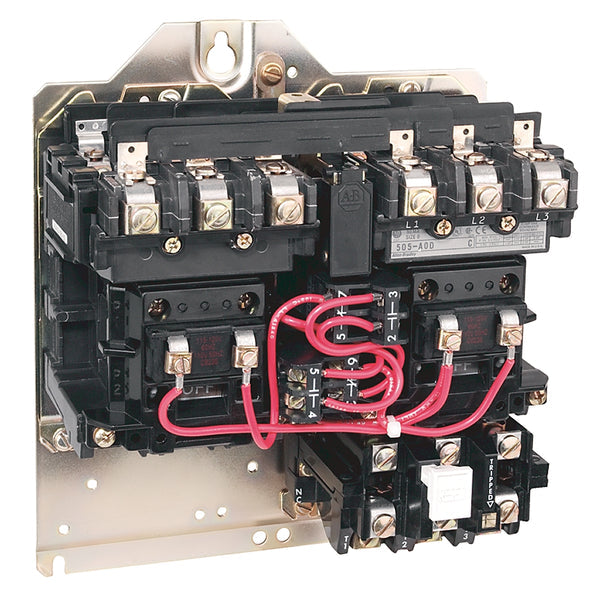

The Allen-Bradley 505-BOD is a NEMA Size 1 full voltage reversing starter designed for three-phase motor control applications. It includes an open-style enclosure and operates with a 115/120V coil at 50/60 Hz, providing compact and efficient motor reversing functionality.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Allen-Bradley
|
| Category |
|
| Part Number |
505-BOD |
| Subcatecory |
|
| NEMA Size |
Size 1 |
| Number of Phases |
3 Phase |
| Rated Current |
27 Amps |
| Coil Voltage |
115/120 V AC |
| Control Voltage |
110 VAC at 50 Hz, 120 VAC at 60 Hz |
| Overload Protection |
Eutectic Alloy Overload Relay |
| Enclosure Type |
Open |
| Standards Compliance |
CE, CSA, CUL, KC, UL, Marine |
| Mounting |
Panel Mount (Open Type) |
| Weight |
10.5400 lb |
Information About 505-BOD
The 505-BOD offers a reliable solution for reversing motor starters in industrial automation and control systems. It features a NEMA Size 1 configuration with a 27-amp rating and supports 3-phase power systems, making it suitable for motors requiring bidirectional operation. This model operates with a 110 VAC control voltage at 50 Hz and 120 VAC at 60 Hz, and includes a eutectic alloy overload relay for thermal protection. The open enclosure design allows flexible panel installation while maintaining compliance with CE, UL, CSA, KC, and Marine standards.
Key Features:
- Full Voltage Reversing Starter: provides forward and reverse motor control for three-phase motors.
- Rated Current: 27 amps for moderate load motor applications.
- Coil Voltage Support: operates at 115/120V AC, 50/60 Hz, with 110V control compatibility.
- Overload Protection: includes eutectic alloy overload relay for reliable motor thermal safeguarding.
- NEMA Size 1 Configuration: standardized sizing for compatibility with existing control systems.
- Enclosure Style: open-type format for versatile panel-mounted integration.
- Compliance: meets CE, UL, CSA, KC, and Marine safety and performance standards.
- Three-Phase Support: optimized for use with 3-phase industrial motor control circuits.
The 505-BOD delivers compact, reversible motor starting with integrated overload protection for dependable control in industrial automation systems.
