Description

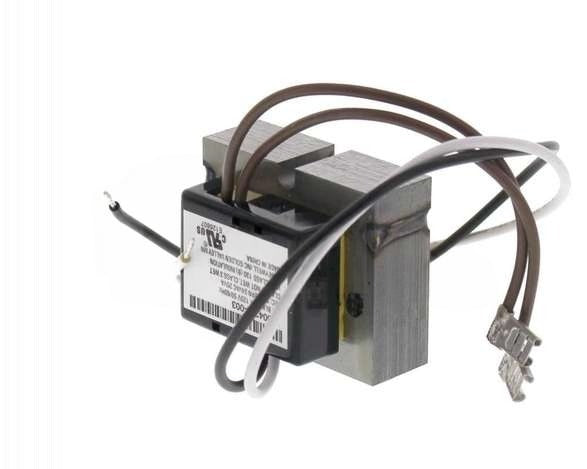

The Honeywell 50017460-003 is a 24V internal transformer designed for use with Modutrol IV motors. It converts 120V AC input to a stable 24V AC output, ensuring reliable power delivery in control applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Honeywell |
| Category |
HVAC Controls |
| Part Number |
50017460-003 |
| Subcategory |
Transformers |
| Input Voltage |
120V AC |
| Output Voltage |
24V AC |
| Primary Type |
120 VAC |
| Secondary Type |
24 VAC |
| Frequency |
50/60 Hz |
| Mounting Type |
Internal (for Modutrol IV motors) |
| Termination Style |
Quick-connect terminals |
| Application |
Power supply for Modutrol IV motors |
| Construction |
Durable Honeywell design |
| Weight |
0.95 lbs |
Information About 50017460-003
The 50017460-003 is part of Honeywell’s Modutrol IV motor accessory line, built to provide consistent low-voltage power for HVAC control systems. Designed for internal mounting, it features a 120 VAC primary and a 24 VAC secondary winding, making it suitable for direct integration into compatible Modutrol IV motors. Its quick-connect terminals simplify electrical installation, while its compact form factor allows for easy placement within the motor housing. With a durable build and compatibility with both 50 Hz and 60 Hz systems, this transformer is engineered for long-term reliability in demanding mechanical environments.
Key Features:
-
Purpose-built for Modutrol IV motors: Provides the required low-voltage power supply for proper motor control operation.
-
Standardized voltage conversion: Steps down 120V AC primary input to a stable 24V AC secondary output.
-
Dual-frequency compatibility: Operates seamlessly on both 50 Hz and 60 Hz power systems.
-
Quick-connect terminal design: Enables fast, secure electrical connections without the need for complex wiring.
-
Internal mounting configuration: Fits directly inside Modutrol IV motors for a protected, space-efficient installation.
-
Robust Honeywell construction: Ensures long service life even in demanding HVAC control environments.
-
Lightweight and compact: Weighs under 1 lb for easy handling during installation or replacement.
The 50017460-003 delivers the reliability and precision required for consistent low-voltage power supply in Modutrol IV motor applications.
