Description
The 22A-A6P8N103 is a 240V single-phase AC drive from Allen-Bradley’s PowerFlex 4 series, delivering 6.8A output current for motors up to 2 HP.
Technical Specifications
|
Condition
|
New/Never Used Surplus
|
| Brand |
Allen-Bradley |
|
Category
|
Detection and Monitoring Systems
|
|
Part Number
|
442L-SFZNMN
|
| Subcatecory |
|
| Indicator |
7 Segment Display, Status LEDs |
| Power Supply |
24V DC +20% / -30% |
| Standard |
CCC,KC |
| Voltage |
0-24 VDC |
| Enclosure |
IP65 |
| Light Source |
Infrared 905nm |
| Response Time |
80m s |
| Type |
Area Scanner |
| Weight |
0.75 kgs |

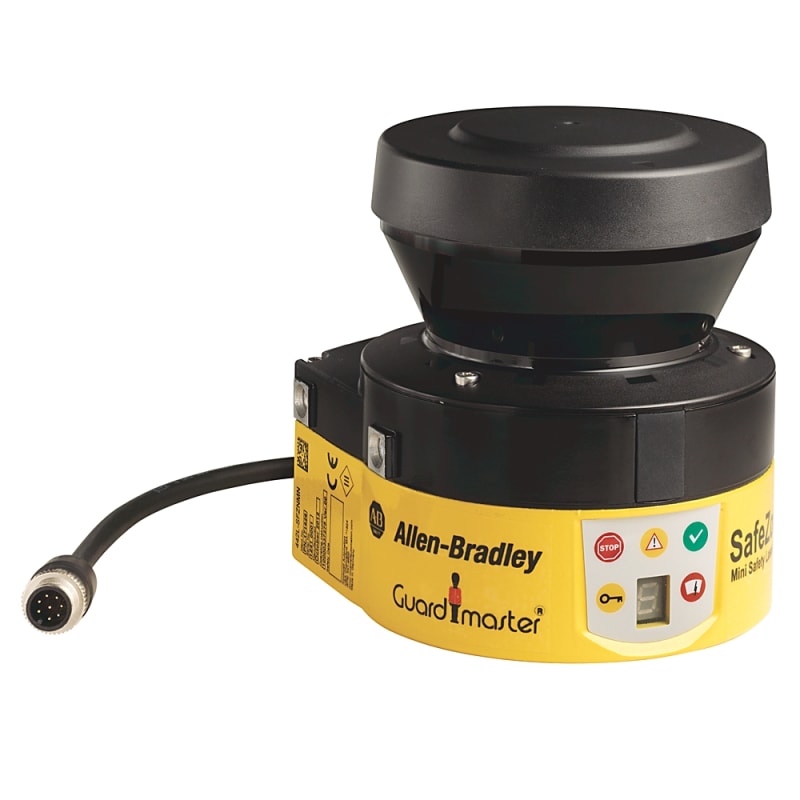

Information About 442L-SFZNMN
The 442L-SFZNMN is a compact safety laser scanner from Allen-Bradley's SafeZone Mini series, designed to enhance personnel protection in industrial environments. It utilizes infrared laser technology to monitor hazardous zones, ensuring safety without compromising productivity.
Key Features:
-
Safety Field Range: Up to 2 meters (6.56 ft), configurable to suit various applications. citeturn0search1
-
Warning Fields: Features an outer warning field to help prevent accidental or nuisance tripping. citeturn0search1
-
Applications: Suitable for stationary or mobile applications, including safeguarding machinery and automated guided vehicles (AGVs). citeturn0search1
-
External Device Monitoring (EDM): Integrated EDM eliminates the need for an external safety relay. citeturn0search1
-
Diagnostics: Equipped with a 7-segment display for easy diagnostics and status monitoring. citeturn0search1
-
Mounting Options: Offers flexible mounting solutions with available mounting kits for various installation requirements. citeturn0search3
Technical Specifications:
-
Angular Resolution: 0.5°
-
Scanning Angle: 270°
-
Rated Operational Voltage: 16.8 to 30 V DC (nominal 24 V)
-
Power Consumption: 55 W maximum
-
Response Time: ≤80 ms
-
Operating Temperature: -10 °C to +50 °C
-
Dimensions (H x W x D): 116 mm x 102 mm x 104 mm
