Description

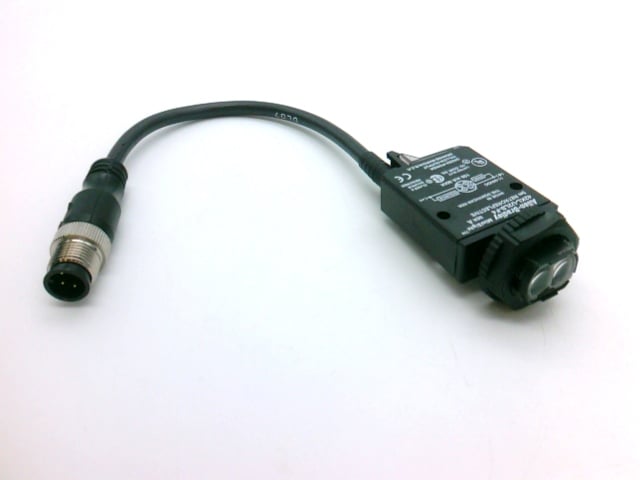

The Allen-Bradley 42KL-U2LB-F4 is a compact visible red photoelectric sensor from the MiniSight series, engineered for reliable object detection in industrial automation environments. With flexible PNP/NPN output support and a long sensing range, it is ideal for space-constrained sensing applications that require precision and ease of integration.
Technical Specifications
|
Condition
|
New/Never Used Surplus
|
| Brand |
Allen-Bradley
|
| Category |
Sensors |
| Part Number |
42KL-U2LB-F4 |
| Subcatecory |
|
| Light Source |
Visible Red |
| Sensing Range |
16.4 ft (5 m) |
| Output Type |
100 mA |
| Operating Voltage |
10.8–30 V DC |
| Output Mode |
Light-On / Dark-On (Selectable) |
| Connector Type |
M12 |
| Connection Cable |
4-pin DC Micro QD on 152 mm (6 in.) Pigtail |
| Weight |
0.1300 lb |
Information About 42KL-U2LB-F4
The 42KL-U2LB-F4 is a standard diffuse photoelectric sensor that emits a visible red light beam, offering an extended sensing range of up to 16.4 feet (5 meters). It operates on a 10.8–30V DC power supply and allows the user to select light-on or dark-on (LO/DO) output modes, enhancing application versatility. The sensor supports both PNP and NPN output configurations, which are selectable depending on system requirements.
Key Features:
-
Dual PNP/NPN Output: Provides flexible interface options for a wide range of control systems.
-
Visible Red Light Source: Enables precise alignment and simplified setup in field applications.
-
Selectable LO/DO Modes: Adaptable output behavior based on lighting and application needs.
-
Long Sensing Range (16.4 ft): Suitable for mid- to long-distance detection of targets.
-
Compact M12 Connector with QD Pigtail: Facilitates quick installation and maintenance.
The 42KL-U2LB-F4 is ideal for packaging, material handling, and manufacturing applications that require compact, high-performance sensing with versatile wiring and logic configurations.
