Description

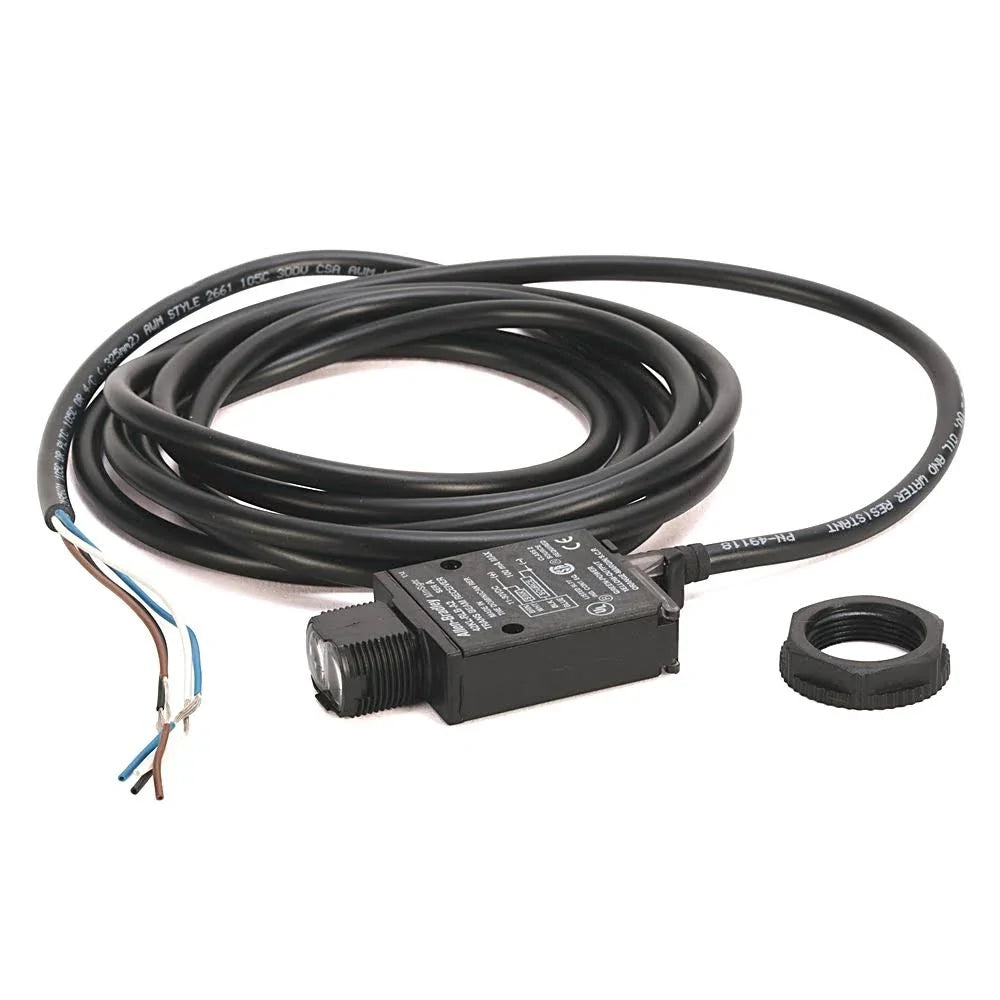

The Allen-Bradley 42KL-D1LB-F4 is a MiniSight photoelectric sensor designed for compact, reliable object detection in industrial environments.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Allen-Bradley
|
| Category |
Sensors & Switches |
| Part Number |
42KL-D1LB-F4 |
| Subcatecory |
|
|
|
DC Micro(M12), Female, Straight, 4-pin PVC, Yellow, Unshielded, 5 m |
Connection Type
|
4-pin DC Micro QD on 152mm (6in) pigtail |
|
Light Source
|
Infrared LED |
| Operating Version |
Standard |
| Input/Control Voltage |
5...24V DC |
| Operating Voltage/Mode |
10.8-30V DC - LO or DO selectable |
| Output Type |
Both Sink (NPN) and Source (PNP) |
| Sensing Mode |
Standard Diffuse |
| Sensitivity Adjustment |
Yes |
| Weight |
0.15 lbs |
Information About 42KL-D1LB-F4
The Allen-Bradley 42KL-D1LB-F4 is a diffuse-mode photoelectric sensor from the MiniSight™ series, engineered for reliable object detection in compact industrial automation setups. It offers precise, short-range sensing with a durable design for harsh environments.
Key Features:
- Sensing Type: Diffuse photoelectric sensor, ideal for detecting objects without the need for a separate reflector.
- Sensing Range: Detects targets from 1 mm up to 380 mm (15 inches), suitable for close-proximity applications.
- Light Source: Infrared LED (880 nm wavelength) provides stable, consistent detection in various lighting conditions.
- Output Type: Dual NPN and PNP transistor outputs (sinking and sourcing), offering flexible integration with control systems.
- Switching Function: Selectable Light Operate (LO) or Dark Operate (DO) mode to suit different detection requirements.
- Response Time: Fast detection with a response time of 1 ms, supporting high-speed automation.
- Input Voltage Range: Operates on 10.8–30 V DC, compatible with standard industrial power supplies.
- Load Capacity: Capable of handling up to 100 mA output current for control signaling.
- Connection Interface: 4-pin DC Micro Quick Disconnect (QD) via 152 mm (6-inch) pigtail cable for easy replacement and installation.
This compact photoelectric sensor is part of the Allen-Bradley MiniSight™ series, making it ideal for applications such as packaging machines, conveyors, and other automated equipment where space and sensing precision are critical.
