Description

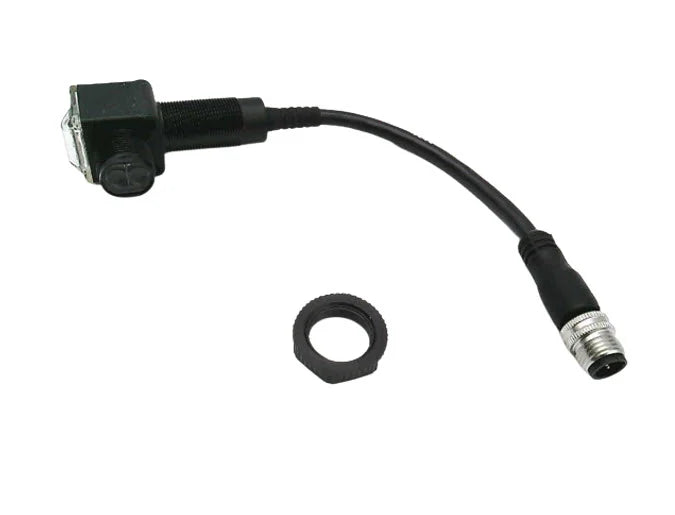

The Allen-Bradley 42EF-S1MPA-F4 is a compact and reliable photoelectric sensor engineered for precise object detection in industrial automation environments. Featuring background suppression technology and a sharp cut-off diffuse sensing mode, this sensor ensures accurate detection even in challenging applications where precise distance control is critical.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Allen-Bradley
|
| Category |
|
| Part Number |
42EF-S1MPA-F4
|
| Subcategory |
Photoelectric |
| Sensor Type |
Infrared |
| Sensing Range |
100 mm |
| Circuit Type |
PNP |
| Output |
100 mA |
| Voltage |
10.8-30 VDC |
| Connection Type |
4-Pin Micro QD on Pigtail |
| Conductor Size |
22 AWG |
| Mounting Type |
Front Through Hole |
| Light Source |
Infrared Light (IR) |
| Standards Compliance |
KC |
| Weight |
0.1000 lb |
Information About 42EF-S1MPA-F4
The 42EF-S1MPA-F4 is part of the RightSight sensor series and is designed with a 100 mm sensing range. It operates on a voltage range of 10.8 to 30 VDC, making it compatible with standard industrial power supplies. The sensor features a PNP output circuit type, providing positive switching output for easy integration into control systems. Equipped with a 4-pin micro quick-disconnect (QD) connector on a pigtail, this sensor simplifies wiring and installation. The front through-hole mounting design ensures straightforward integration into existing equipment and panel layouts. Its infrared (IR) light source enhances reliability in dusty or reflective environments by reducing false triggers.
Key Features:
- Sharp Cut-Off Diffuse Sensing: Provides precise object detection while ignoring background reflections, ensuring accurate performance in complex environments.
- Background Suppression Technology: Eliminates false triggers from shiny or highly reflective surfaces, enhancing application flexibility and accuracy.
- Infrared Light Source: Offers reliable detection in dusty or low-visibility areas, reducing susceptibility to ambient light interference.
- 100 mm Sensing Range: Supports a wide range of object detection applications, from packaging lines to assembly stations.
- PNP Output Circuit: Provides positive logic output, simplifying integration into standard PLCs and control systems.
- Compact Design: RightSight housing style fits easily into confined spaces and supports easy installation in existing equipment.
- Front Through Hole Mounting: Enables secure and convenient installation, reducing installation time and maintenance complexity.
- 4-Pin Micro QD Connection: Facilitates fast and secure wiring with 22 AWG conductors, enhancing durability and system reliability.
The 42EF-S1MPA-F4 is an ideal choice for precise object detection in automated production lines, packaging systems, and general industrial automation, providing consistent performance and reliable integration.
