Description

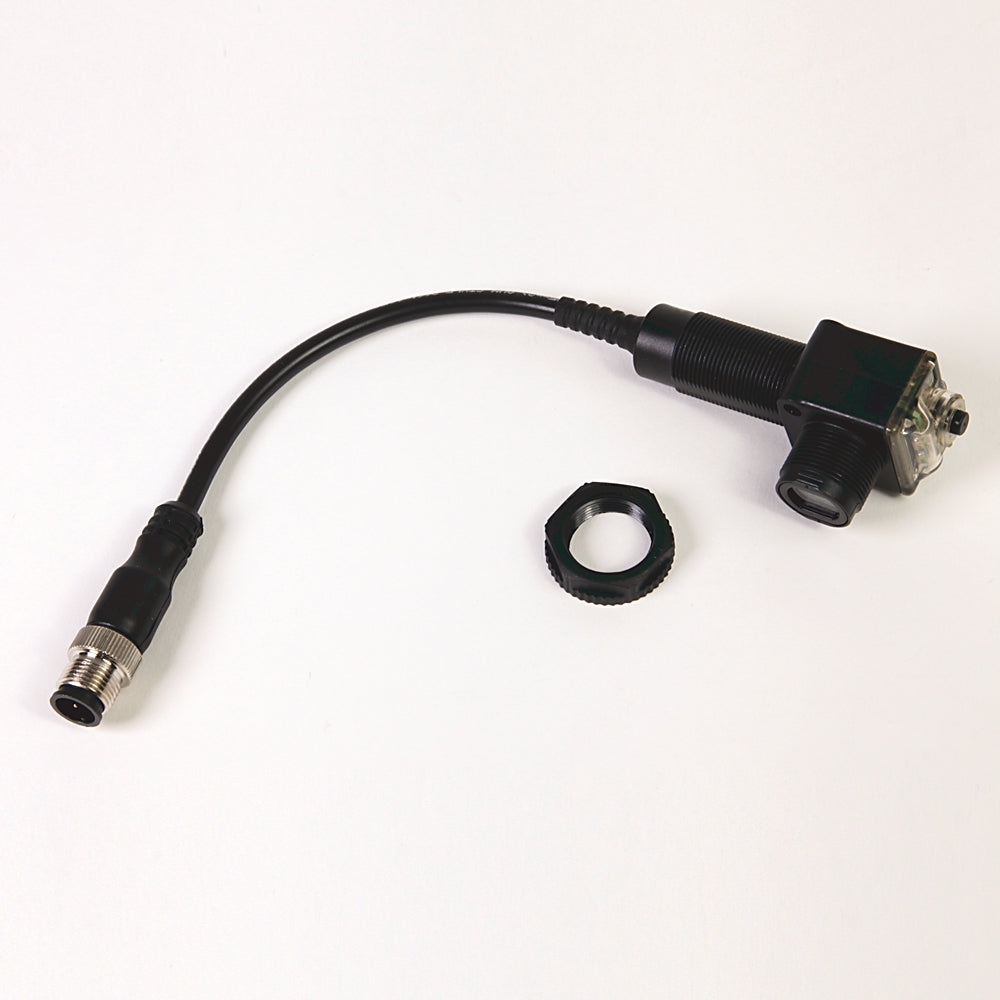

The Allen-Bradley 42EF-P8JBC-F4 is a compact, high-performance RightSight photoelectric sensor featuring polarized retroreflective sensing with red laser technology. Designed for accurate object detection in space-constrained applications, this sensor is ideal for use in packaging, assembly, and general automation environments where reliable detection is critical.
Technical Specifications
|
Condition
|
New/Never Used Surplus
|
| Brand |
Allen-Bradley
|
| Category |
Sensors |
| Part Number |
42EF-P8JBC-F4 |
| Subcatecory |
|
| Sensor Type |
Photoelectric (Laser) |
| Sensing Method |
Polarized Retroreflective |
| Circuit Type |
DC - Light Operate |
| Output Current |
100 mA |
| Voltage |
24 V DC |
| Mounting Type |
18 mm Cylindrical |
| Connection Type |
4-Pin DC Micro QD on 152 mm (6 in.) Pigtail |
| Connector Type |
M12 |
| Standards Compliance |
CCC, CE, CSA, CUL, KC, UL |
| Weight |
0.1400 lb |
Information About 42EF-P8JBC-F4
The 42EF-P8JBC-F4 is part of the RightSight sensor series, offering a versatile sensing solution with both PNP and NPN (sink/source) output configurations. It uses polarized retroreflective sensing with a red laser beam for precise object detection while ignoring shiny or reflective surfaces. Operating at 24V DC, it provides a maximum output current of 100 mA and supports light operate mode. This sensor is housed in an 18 mm cylindrical body with an M12 4-pin micro quick-disconnect (QD) connector on a 152 mm (6 in.) pigtail for easy installation. With global certifications including CE, UL, CSA, KC, and CCC, it is compliant for use in industrial environments worldwide.
Key Features:
-
Polarized Retroreflective Sensing: Enhances detection reliability by minimizing false readings from reflective backgrounds.
-
Red Laser Sensing Technology: Provides precise alignment and high-accuracy object detection.
-
Dual Output Type (PNP/NPN): Offers flexible integration into various control systems and PLCs.
-
Compact Cylindrical Design (18 mm): Ideal for tight spaces and standard mounting environments.
-
Quick-Disconnect Connection: 4-pin DC micro QD on a 152 mm pigtail simplifies installation and replacement.
The 42EF-P8JBC-F4 is ideal for automated manufacturing, material handling, and packaging lines where space efficiency and reliable laser sensing are essential.
