Description

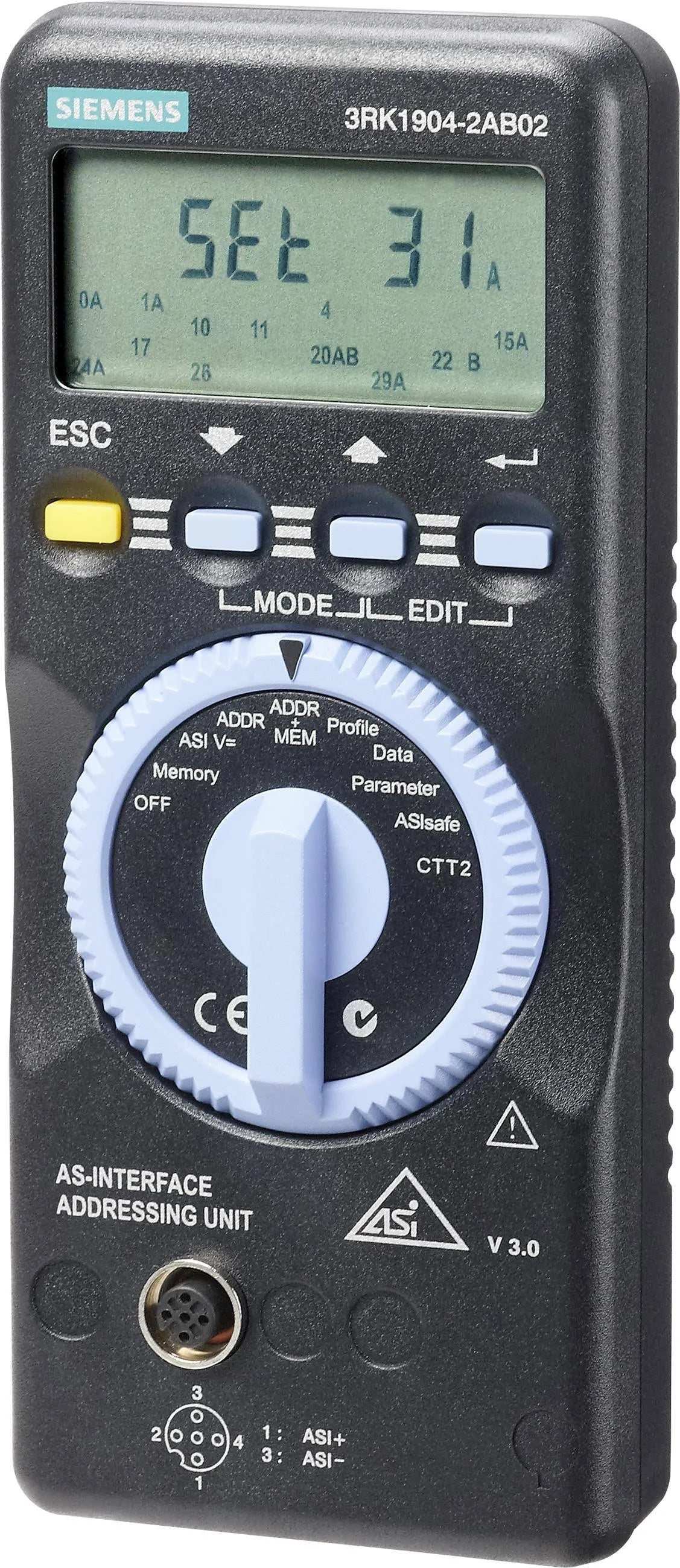

The Siemens 3RK1904-2AB02 is an AS-Interface (AS-i) Addressing and Diagnosis Device designed for easy configuration, testing, and maintenance of AS-i slave modules in industrial automation networks. Featuring v3.0 functionality, this device streamlines setup and diagnostics of active AS-i modules, intelligent sensors, and actuators.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Siemens |
| Category |
|
| Part Number |
3RK1904-2AB02
|
| Subcategory |
PLC Programming Terminal |
| AS-i Specification |
V3.0 |
| Functionality |
Address setting, input/output test, diagnostics |
| Connection Type |
M12 connection socket |
| Addressing Cable |
1.5 m (M12 connector/hollow plug) |
| Power Source |
4 x 1.5 V LR6 batteries |
| Application Module Addressing |
Via 3RK1901-1MA00 adapter |
| Packaging Dimension |
216,00 x 205,00 x 76,00 |
| Package size unit of measure |
MM |
| Weight |
0,565 Kg |
Information About 3RK1904-2AB02
The 3RK1904-2AB02 is engineered to support the AS-i specification v3.0, ensuring compatibility with the latest generation of AS-i modules. It is equipped with an M12 connection socket and includes a 1.5-meter addressing cable with an M12 connector and hollow plug, simplifying direct connection to modules. This device allows for the quick setting of slave addresses, input/output testing, and other essential functions needed for commissioning and troubleshooting AS-i networks. It operates on four standard 1.5V LR6 batteries, making it portable and easy to use in various installation and maintenance scenarios.
Key Features:
- AS-Interface V3.0 Compliance: Fully supports AS-i slave modules and networks that conform to the latest AS-i specification, ensuring compatibility with modern automation systems.
- Addressing and Diagnostics: Facilitates setting addresses for AS-i modules and includes functions for input/output testing and other diagnostic tasks, streamlining system commissioning and maintenance.
- M12 Connection Socket: Provides a reliable and standardized connection interface for quick and secure module access in the field.
- Included Addressing Cable: Comes with a 1.5-meter cable equipped with an M12 connector and hollow plug, enabling flexible and convenient connectivity to AS-i modules.
- Battery Powered: Operates using four standard 1.5V LR6 batteries, ensuring portability and easy deployment without requiring external power sources.
- Direct Application Module Addressing: Supports addressing of application modules via the 3RK1901-1MA00 adapter, increasing flexibility and utility in different system configurations.
- Compact and Durable Design: Built to withstand the rigors of industrial environments while maintaining lightweight and ergonomic usability for field technicians.
- User-Friendly Interface: Intuitive operation simplifies configuration, troubleshooting, and maintenance of AS-i networks, reducing downtime and training requirements.
The 3RK1904-2AB02 is an indispensable tool for engineers and technicians responsible for setting up, maintaining, and troubleshooting AS-Interface networks, offering reliable performance and ease of use.
