Description

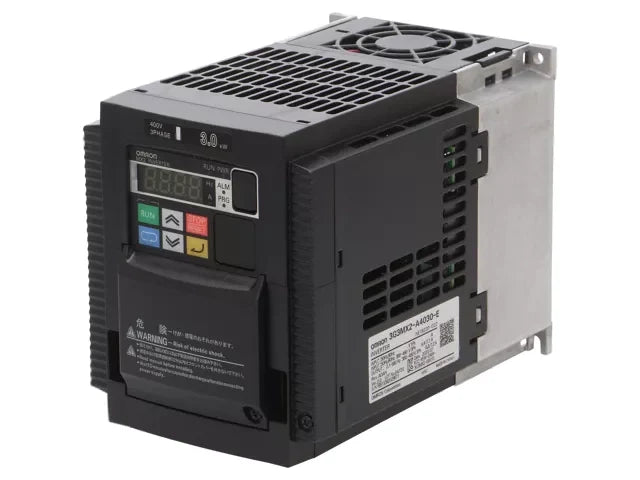

The Omron 3G3MX2-A4030-E is a compact and versatile inverter drive designed for demanding 3-phase motor control. With a 3.0 kW output and support for up to 580 Hz frequency, it enables precise and responsive speed regulation.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron |
| Category |
|
| Part Number |
3G3MX2-A4030-E |
| Subcategory |
Drive |
| Series |
MX2 Series |
| Input Voltage |
3-phase, 380–480 VAC |
| Input Frequency |
50/60 Hz |
| Input Current |
9.4 A (HD) / 7.7 A (ND) |
| Output Voltage |
3-phase, 380–480 VAC |
| Output Current |
8.8 A (HD) / 7.2 A (ND) |
| Output Frequency Range |
0.1–580 Hz |
| Power Rating |
3.0 kW |
| Enclosure Rating |
IP20 |
| Control Method |
Sensorless vector, V/f control |
| Mounting Type |
Panel Mount |
| Weight |
4.54 lbs |
Information About 3G3MX2-A4030-E
The 3G3MX2-A4030-E is a robust inverter drive from Omron’s MX2 Series, engineered for performance in diverse industrial automation systems. It handles 3-phase input voltage from 380 to 480 VAC and delivers an output frequency range of 0.1 to 580 Hz, making it ideal for variable-speed motor control applications. Designed with multifunction capabilities, it features advanced control algorithms that ensure smooth operation even at low speeds. Its compact size and IP20-rated enclosure allow for easy integration into control panels where space is limited. With a rated output of 3.0 kW and maximum output current of 8.8 A, the drive supports energy-efficient and high-precision motor control in a wide range of machinery.
Key Features:
- Extended Frequency Range: Output frequency from 0.1 to 580 Hz enables precise control of both standard and high-speed motors.
- High Output Performance: Supports 3.0 kW motor power with output current up to 8.8 A, suitable for demanding loads.
- Wide Input Voltage Range: Operates on 3-phase 380–480 VAC, ensuring flexibility for international use and diverse power environments.
- Dual Control Modes: Offers V/f and sensorless vector control for optimized torque and smooth acceleration at low speeds.
- Compact Design with IP20 Rating: Space-efficient housing fits easily into control panels while meeting safety standards.
- Integrated Safety Functions: Built-in protection features include overcurrent, overvoltage, undervoltage, and overheat safeguards.
The 3G3MX2-A4030-E offers reliable speed and torque regulation with advanced functions packed into a small, user-friendly design.
