Description

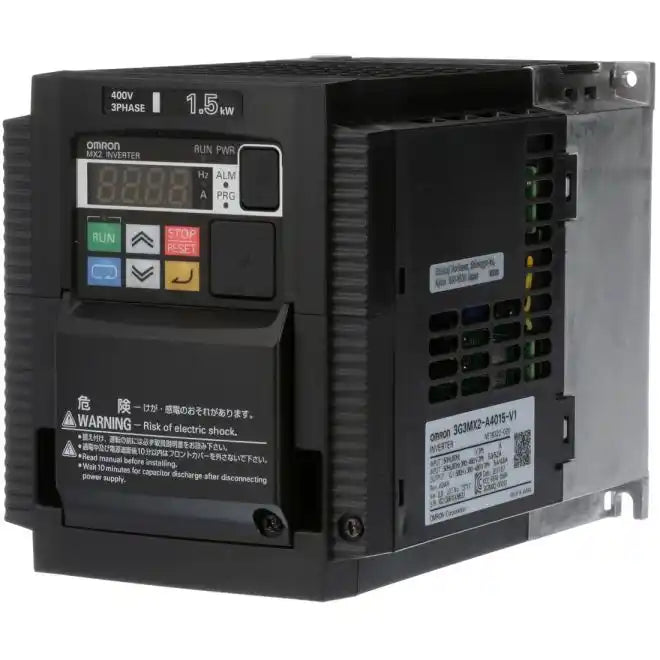

The Omron 3G3MX2-A4015-V1 is a compact, high-performance inverter drive from the MX2 Series, designed for precise motor control in industrial automation applications.

Technical Specifications

Information About 3G3MX2-A4015-V1

The Omron 3G3MX2-A4015-V1 is a compact, high-performance inverter drive from the MX2 series, developed for advanced motor control in industrial automation systems. With a power rating of 1.5 kW (2 HP), it operates on a three-phase 380–480 VAC input and delivers a three-phase 0–400 VAC output. It supports both induction and permanent magnet motors and offers high starting torque and smooth speed control, making it ideal for demanding applications.

Key Features:

• Power Rating: 1.5 kW (2 HP)
• Input Voltage: Three-phase 380–480 VAC
• Input Frequency: 50/60 Hz
• Output Voltage: Three-phase 0–400 VAC
• Output Current: 4.8 A (CT), 5.4 A (VT)
• Control Mode: V/f control, Open-loop vector control
• Output Frequency Range: 0.1–400 Hz
• Starting Torque: 200% at 0.5 Hz
• Safety Function: Safe Torque Off (STO), ISO 13849-1 PLd compliant
• Communication: Built-in RS-485 Modbus (optional: EtherCAT, DeviceNet, PROFIBUS, etc.)
• Cooling Method: Forced air cooling
• Ambient Temperature Range: 0°C to 50°C
• Enclosure Rating: IP20
• Dimensions (W × H × D): 108 × 128 × 170.5 mm

The 3G3MX2-A4015-V1 inverter is engineered for dynamic performance and system safety in a wide range of industrial applications, including conveyors, mixers, and process control systems. Its compact size, integrated safety features, and flexible communication options make it a reliable and adaptable choice for both OEMs and automation engineers.
