Description

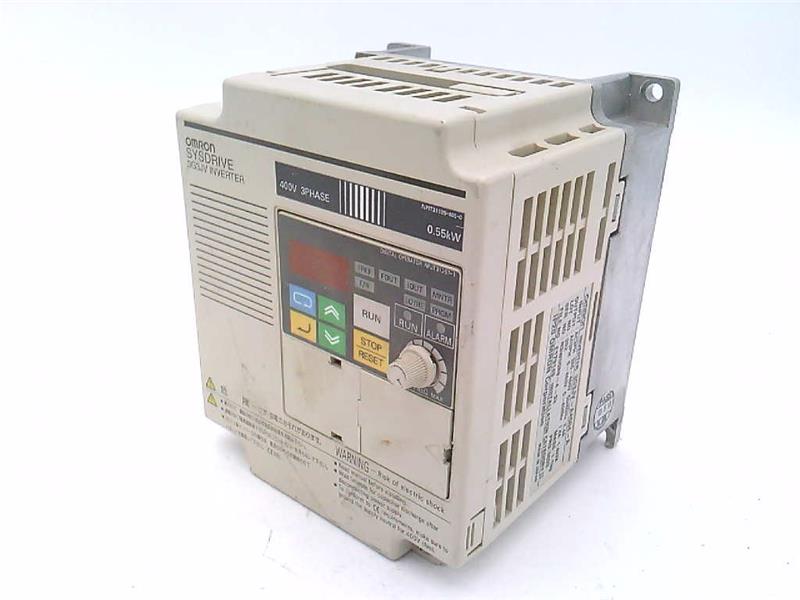

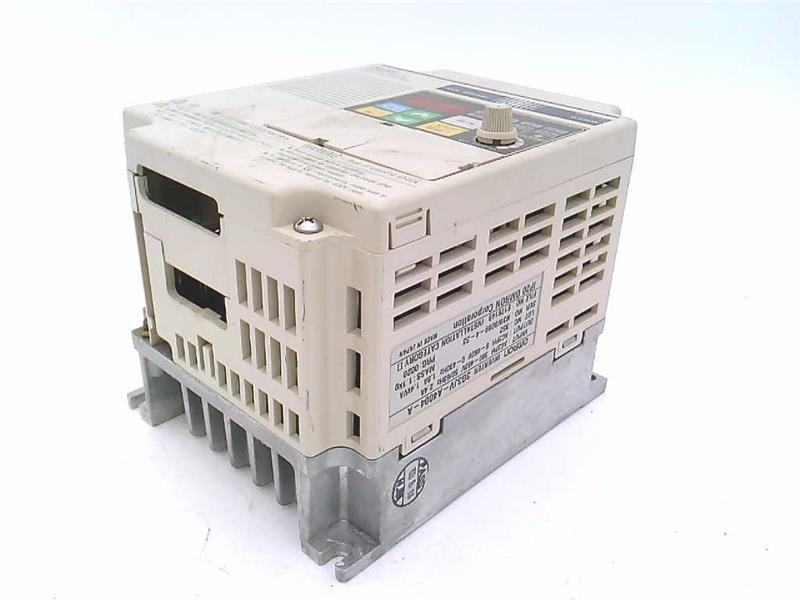

The Omron 3G3JV-A4004-A is a compact 1 HP three-phase AC inverter drive designed for variable-speed motor control. Featuring a 460 VAC input and a 1.8 A output, this DIN-rail mountable unit in the SYSDRIVE 3G3JV series provides reliable, efficient motor performance in industrial applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Omron |
| Category |
|
| Part Number |
3G3JV-A4004-A |
| Subcategory |
Drives |
| Series |
SYSDRIVE 3G3JV
|
| Output Power |
1 HP (0.75 kW) |
| Input Voltage |
3-phase, 460 VAC |
| Output Current |
1.8 A
|
| Frequency Range |
0.5 – 400 Hz
|
| Mounting |
DIN-rail or panel mount
|
| Enclosure Rating |
IP20
|
| Input Signal Types |
Analog (0–10 V, 4–20 mA), Digital |
| Communication |
RS-485 (MEMOBUS via optional adapter) |
| Standards Compliance |
CE, UL, cUL, EMC |
| Cooling Method |
Self-cooled (fan built-in) |
| Dimensions (H×W×D) |
Approx. 128 × 108 × 99 mm |
| Weight |
2.84 lbs |
Information About 3G3JV-A4004-A
The 3G3JV-A4004-A is a compact AC inverter drive from Omron, designed for precise motor speed control in small to medium industrial applications. Part of the SYSDRIVE 3G3JV series, it delivers 1 HP output with 460 VAC three-phase input and supports multiple control features in a space-saving, DIN-mountable design. Though discontinued, it remains available through aftermarket and surplus automation suppliers.
Key Features:
- Omron Engineered: Built for efficient, reliable motor control in factory and OEM applications.
- 1 HP Output: Delivers 0.75 kW of power with a rated output current of 1.8 A.
- Three-Phase Input: Operates on 460 VAC input voltage, suitable for high-efficiency installations.
- Compact Housing: IP20-rated enclosure with dimensions of approx. 128 × 108 × 99 mm, ideal for tight panels.
- Built-In Potentiometer: Front-panel speed adjustment via dial simplifies on-site setup and tuning.
- Advanced Motor Control: Includes slip compensation, DC injection braking, torque boost, and stall prevention.
- Versatile I/O: Accepts analog signals (0–10 V, 4–20 mA), and offers digital input/output and analog feedback.
- RS-485 Communication: Optional support for Modbus/MEMOBUS networks for remote control and monitoring.
- Standards Certified: Complies with CE, UL, and cUL standards for global industrial use.
- Legacy Support: Though discontinued, units remain available from trusted industrial resellers with warranty options.
The 3G3JV-A4004-A remains a trusted solution for legacy motor control systems that require reliable performance, flexible setup, and space-efficient installation. Its continued availability through refurbished suppliers ensures long-term support for existing automation platforms.
