Description

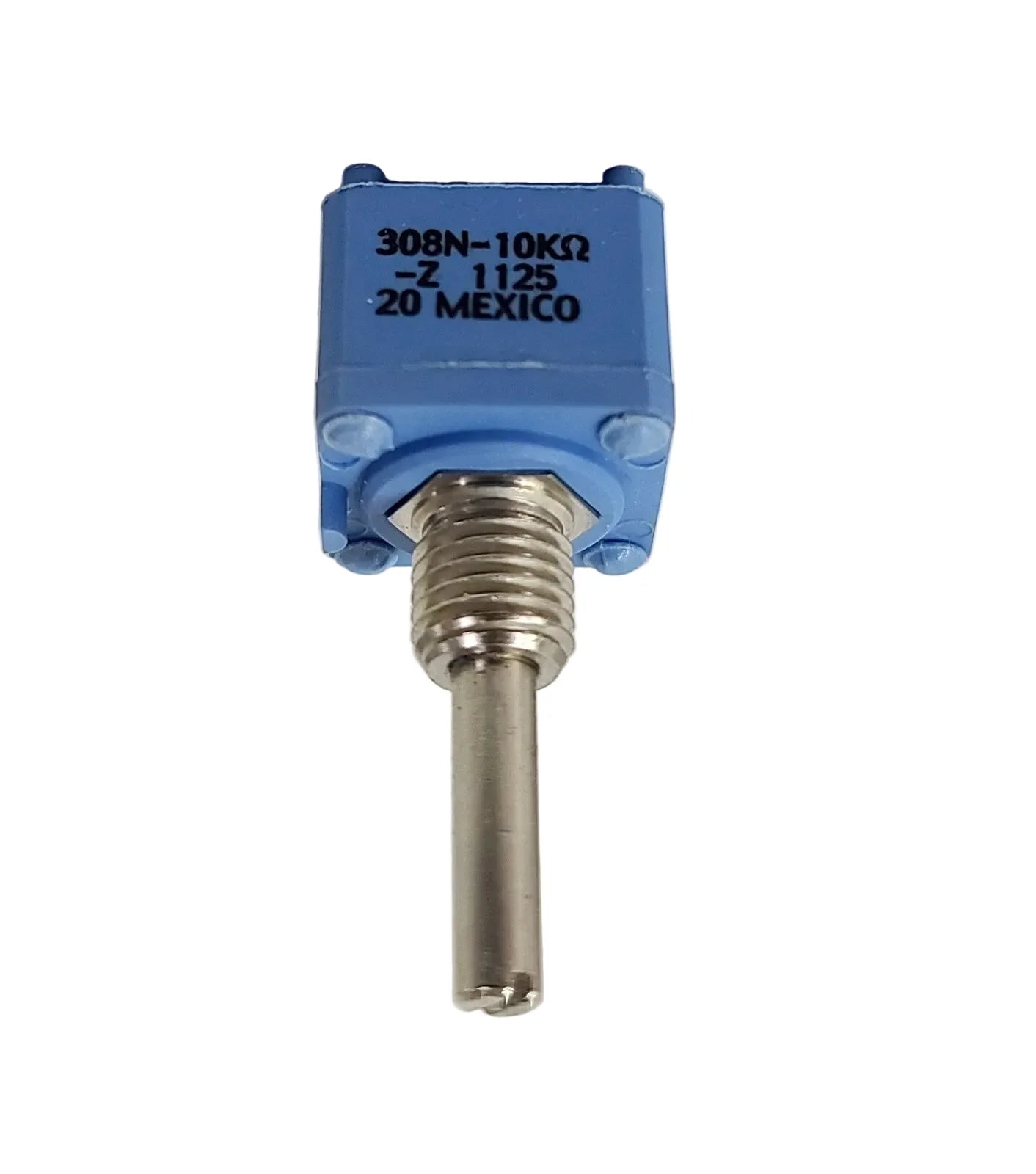

The Honeywell 308N10KZ is a single-turn rotary potentiometer designed for precise manual adjustment of resistance in control and instrumentation circuits. It features a 10 kΩ conductive plastic element with a 0.5 W power rating and panel-mount configuration. This component is intended for applications requiring stable resistance control and long mechanical life.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Honeywell |
| Category |
Pilot Devices |
| Part Number |
308N10KZ |
| Subcategory |
Potentiometer |
| Series |
308 |
| Resistance |
10 kOhms |
| Tolerance |
±10% |
| Power Rating |
0.5 W (1/2 W) |
| Element Type |
Conductive Plastic |
| Number of Turns |
1 Turn |
| Mechanical Rotation |
295° |
| Mounting Type |
Panel Mount |
| Bushing Thread |
1/4-32 |
| Termination Style |
Solder Hook (J-Hook) |
| Shaft Type |
Slotted |
| Shaft Diameter |
0.250 in (6.35 mm) |
| Operating Temperature |
-40°C to +120°C |
| Maximum Voltage Rating |
350 V |
| Weight |
3.00 lbs |
Information About 308N10KZ
The 308N10KZ is part of Honeywell’s 308 Series rotary potentiometers, developed for industrial and electronic control systems. It incorporates a conductive plastic resistive element to provide smooth adjustment and consistent electrical performance over its service life. The device offers approximately 295° of mechanical rotation and is equipped with a slotted shaft for manual control via knob or tool. Designed for panel mounting with a threaded bushing, it connects through solder hook or J-hook terminals for secure wiring in control assemblies.
Key Features:
-
10 kΩ Resistance Value: Provides standard resistance for signal adjustment and control circuits.
-
Conductive Plastic Element: Ensures smooth operation and stable resistance characteristics.
-
Single-Turn Design: Offers precise adjustment within one mechanical rotation.
-
0.5 W Power Rating: Suitable for low-power control and signal applications.
-
295° Mechanical Rotation: Allows fine manual adjustment across the full range.
-
Panel Mount Configuration: Threaded bushing (1/4-32) for secure installation.
-
Slotted Shaft Actuator: Compatible with standard knobs or adjustment tools.
-
Wide Temperature Range: Operates from -40°C to +120°C.
The 308N10KZ delivers the reliability and precision required for resistance adjustment in industrial and electronic control systems.
