Description

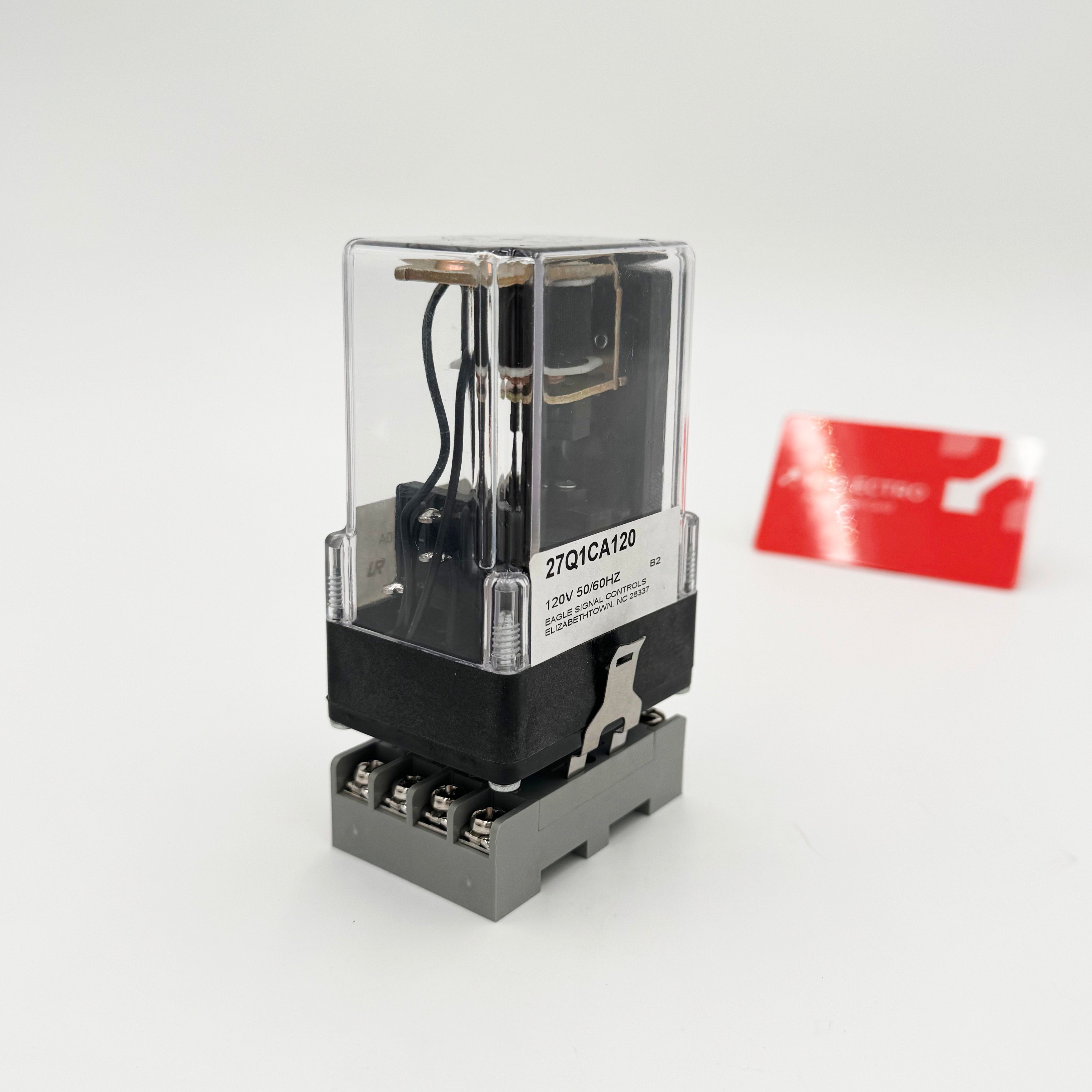

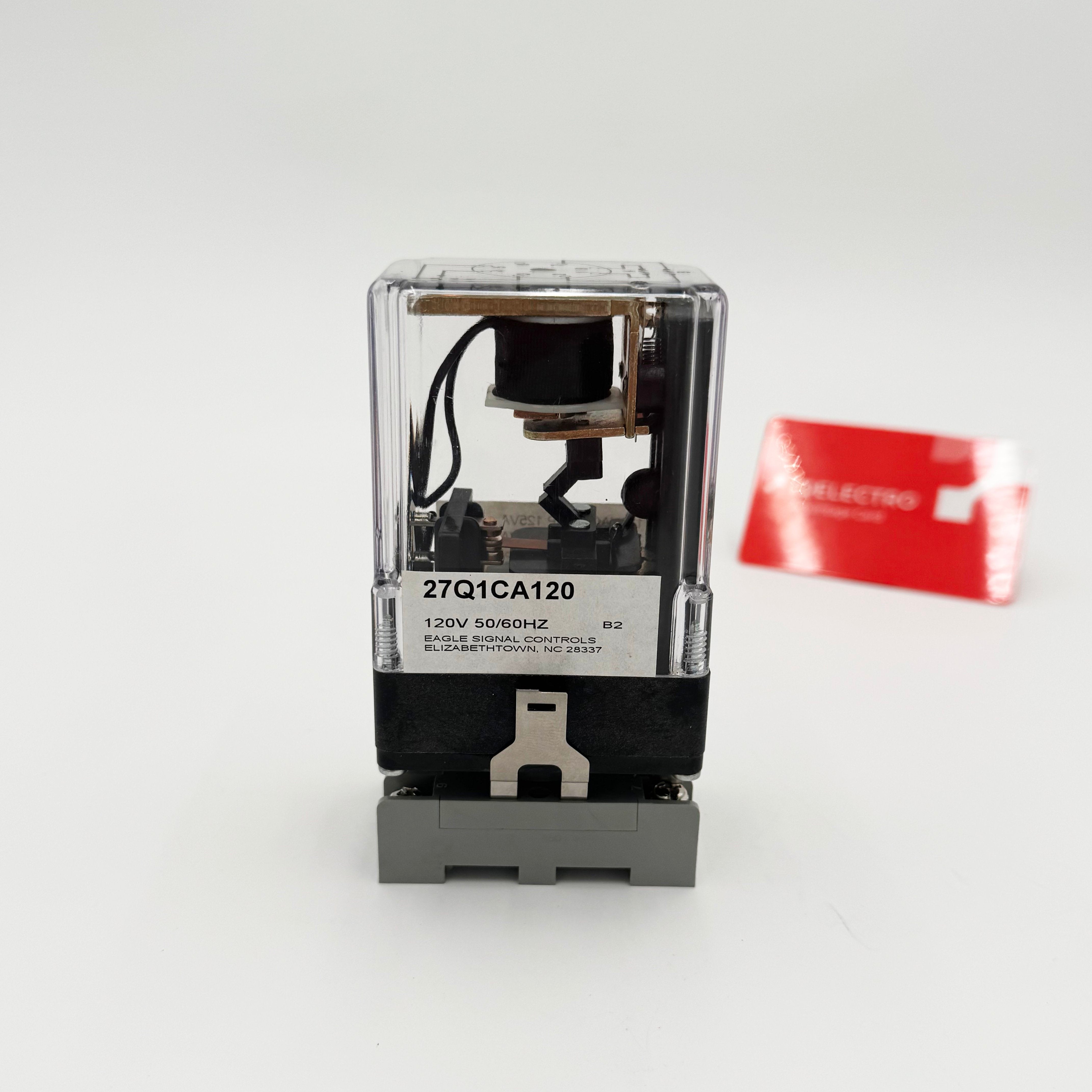

The Eagle Signal 27Q1CA120 is a mechanical latch relay designed for dependable holding and switching of electrical circuits using a single-pole contact configuration. It operates at 120 VAC and features a 50/60 Hz coil for compatibility with standard AC power systems.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Eagle Signal |
| Category |
|
| Part Number |
27Q1CA120 |
| Subcatecory |
|
| Contact Configuration |
1 Pole (SPST or similar) |
| Coil Voltage |
120 VAC |
| Frequency |
50/60 Hz |
| Horsepower Rating |
1/6 HP |
| Latching Mechanism |
Mechanical |
| Application |
Control Circuits, Low-Power Motors |
| Weight |
0.24 lb |
Information About 27Q1CA120
The 27Q1CA120 is a one-pole mechanical latch relay that maintains its last state without continuous coil power, improving energy efficiency and reducing coil wear. Designed to handle loads up to 1/6 HP, it is suitable for low-power motor and signal applications. The unit operates on a standard 120V AC input at both 50 and 60 Hz, providing versatility across global installations. Its mechanical latching design ensures reliable retention during power interruptions or system fluctuations.
Key Features:
- Mechanical Latch Design: retains position without continuous coil power, conserving energy and reducing wear.
- Single-Pole Configuration: supports basic circuit switching with one pole relay contact.
- 120 VAC Operation: compatible with standard control voltage environments at 50/60 Hz.
- 1/6 HP Rating: capable of switching fractional horsepower loads for light-duty motor applications.
- Stable Switching: mechanical hold ensures secure relay status even during power loss or transient events.
The 27Q1CA120 offers dependable latching performance with single-pole switching and low-power load support for control and signaling systems.
