Description

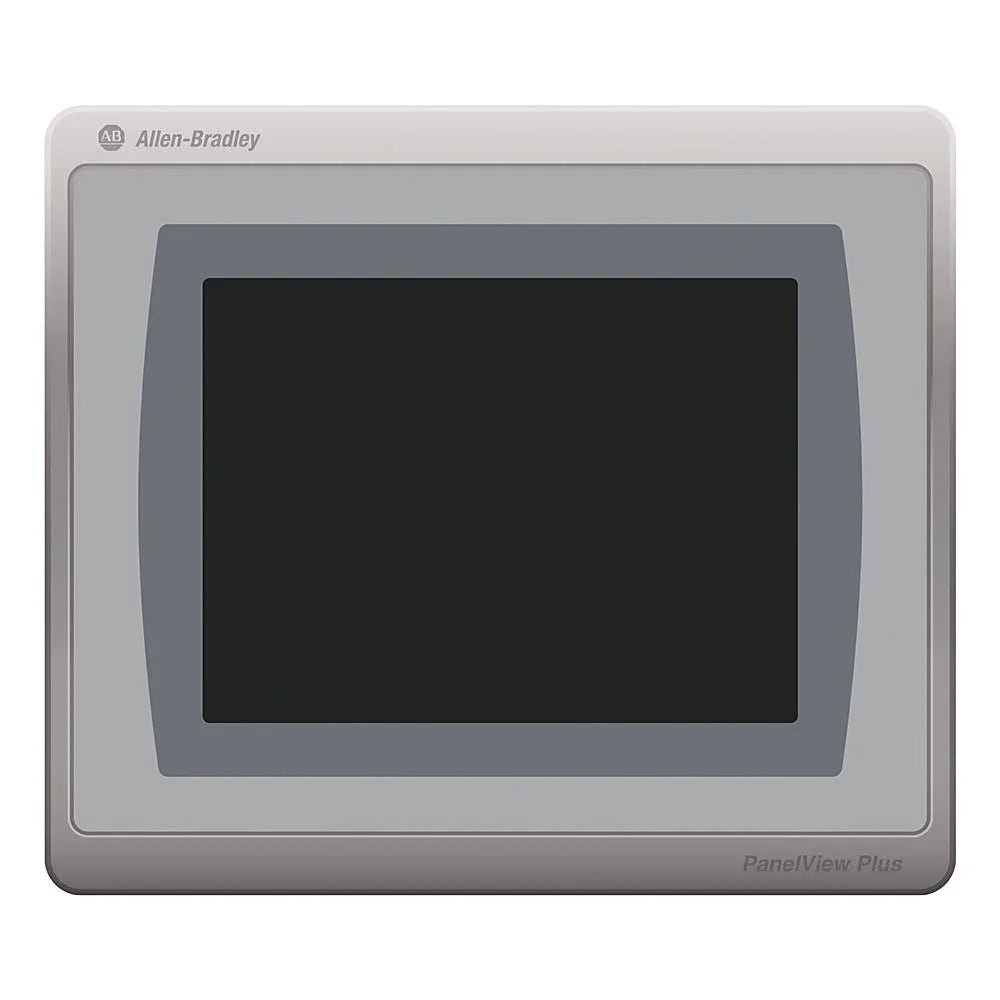

The Allen-Bradley 2711P-T6C21D8S-B is a brandless 5.7-inch touchscreen operator interface terminal from the PanelView Plus 7 series. Designed for industrial HMI applications, this DC-powered unit features a TFT color display, LED backlight, and a compact form factor for space-constrained control panels.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Allen-Bradley
|
| Category |
|
| Part Number |
2711P-T6C21D8S-B
|
| Subcategory |
Operator Interface |
| Product Line |
Panelview Plus 7 |
| Input Type |
Touchscreen |
| Display Size |
5.7 in. |
| Display Color |
TFT Color Display |
| Memory |
512 Mb |
| Input Voltage |
24 VDC |
| Backlight |
LED |
| Input Voltage Range |
18–30 VDC |
| Power Consumption |
35 W |
| Enclosure Type |
Brandless, OEM Customizable Front Panel |
| Operating Temperature |
0 to 55 °C |
| Certifications |
UL, CUL, CE, CCC, KC, C-TICK |
| Weight |
1.53 lb |
Information About 2711P-T6C21D8S-B
The 2711P-T6C21D8S-B belongs to the standard edition of the PanelView Plus 7 family and is designed to provide intuitive machine-level visualization for Rockwell Automation control systems. Supplied without a brand label, it allows OEMs and system integrators to apply their own logos and styling for private-label applications. It operates with a 24 VDC input voltage (range: 18–30 VDC) from a non-isolated power supply and is equipped with a responsive touchscreen interface for user-friendly operation. The device includes 512 MB of RAM and uses a 5.7-inch TFT color display with an LED backlight for high visibility in a wide range of industrial lighting environments.
Key Features:
- 5.7-Inch TFT Color Display: Compact and vivid interface with LED backlight for high visibility and long-lasting operation.
- Brandless Front Panel: Ideal for OEMs or system integrators who require custom branding for their solutions.
- Resistive Touchscreen Input: Supports finger or stylus operation for fast and intuitive navigation.
- Single Ethernet Interface: Facilitates communication with Rockwell controllers via EtherNet/IP.
- 512 MB Internal Memory: Allows smooth execution of HMI applications and graphical content.
- 24 VDC Input Power: Operates within an 18–30 VDC range, compatible with industrial control panels.
- Compact and Lightweight: Weighs just 1.53 lbs and fits standard HMI cutouts in tight spaces.
- PanelView Plus 7 Compatibility: Offers scalable performance and integrates easily with FactoryTalk View ME.
- Certified for Global Use: Complies with CE, C-TICK, UL, KC, CCC, and other industrial standards.
- Operating Temperature Range: Rated for 0 to 55 °C to support most indoor industrial environments.
The 2711P-T6C21D8S-B is a flexible and efficient solution for industrial HMI deployment, offering customizable branding and reliable touchscreen functionality in a rugged and compact design.
