Description

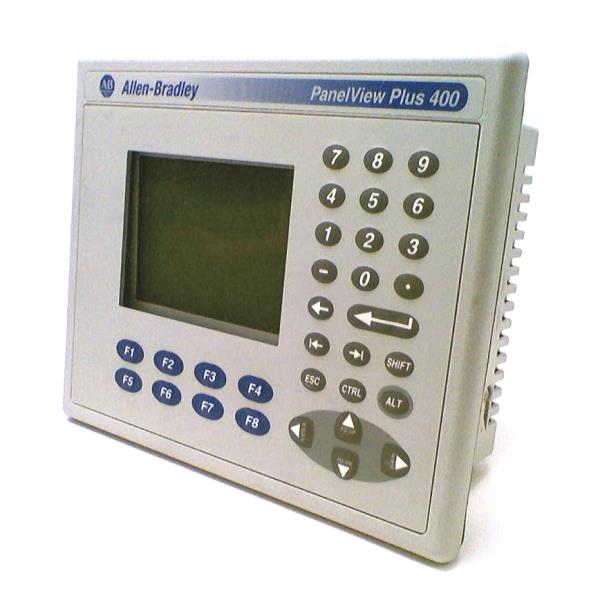

The Allen-Bradley 2711P-K4M5D is a compact and reliable Human Machine Interface (HMI) terminal from the PanelView Plus 400 family. It features a 3.8-inch grayscale display with keypad input, ideal for industrial environments where space is limited and simple control and monitoring are required.
Technical Specifications
|
Condition
|
New/Never Used Surplus
|
| Brand |
Allen-Bradley
|
| Category |
HMI (Human Machine Interfaces)
|
| Part Number |
2711P-K4M5D
|
| Subcatecory |
|
| Display Size |
3.8 Inch |
| Product Family |
PanelView Plus Terminals |
| Display Color |
Grayscale |
| Input Type |
Keypad |
| Communication |
RS-232 Port |
| Input Type |
Keypad |
| Input Power |
DC |
| No. of Function keys |
Eight (8) F1-F8 |
| Real Time Clock (RTC) |
Battery-backed clock |
| Memory |
64 MB |
| Clock accuracy |
+/-2 minutes per month |
| Series |
A, B, C, D, E |
| Display Area |
77 x 58 mm (3.0 x 2.3 in.) |
| Product Lifecycle Status* |
Discontinued/Obsolete |
| Resolution |
320 x 240 pixels |
Information About 2711P-K4M5D
The 2711P-K4M5D is part of the PanelView Plus product line designed for operator interface applications in a wide variety of automation systems. This model includes a grayscale display with an F1–F8 keypad layout, making it suitable for operations where touchscreens may not be practical or preferred. It is powered by a DC power supply and supports DF1 communication protocol via its RS-232 port. The built-in battery-backed real-time clock (RTC) ensures system time accuracy for logging and scheduling tasks. Designed for Series A through E, this terminal integrates well into both legacy and updated systems.
Key Features:
-
Compact Display: 3.8-inch grayscale screen with 320 x 240 resolution for basic visualization.
-
Keypad Interface: 8 programmable function keys (F1–F8) for tactile operation.
-
Communication: RS-232 DF1 serial port and USB support for external devices.
-
Power Supply: Operates on DC power for integration with diverse industrial power systems.
-
Built-In RTC: Battery-backed real-time clock with ±2 minutes per month accuracy.
The 2711P-K4M5D offers essential HMI capabilities in a small form factor, making it a practical solution for machine-level interface and monitoring applications.
