Description

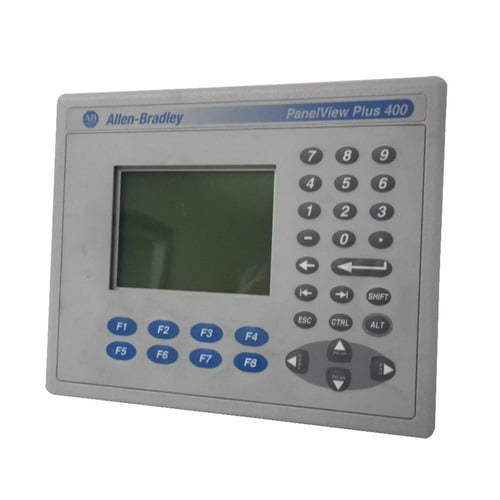

The Allen-Bradley 2711P-K4M20D is a compact and rugged HMI terminal from the PanelView Plus 400 series. Featuring a 3.8-inch grayscale display and keypad interface, it enables efficient operator interaction with industrial control systems in harsh environments.
Technical Specifications
|
Condition
|
New/Never Used Surplus
|
| Brand |
Allen-Bradley
|
| Category |
|
| Part Number |
2711P-K4M20D
|
| Subcatecory |
|
| Display Area |
77 x 58 mm (3.0 x 2.3 in.) |
| Resolution |
320 x 240 |
| Keypad interface |
Keypad , numeric and navigation keys |
| Operating force |
340 g |
| Actuating lifespan |
1 million presses |
| Terminal Memory |
Series A: 5 MB Series B: 10 MB |
| Communication ports |
Ethernet, RS-232, 2 USB host |
| Power Supply Input Voltage range |
18-30VDC |
| Power Consumption |
25 W max (1.0 A at 24V DC) |
| Product Line |
Panelview Plus 400 |
| Display Color |
Grayscale |
| Input Type |
Keypad |
| Communication |
Ehternet and RS-232 Ports |
| Input Power |
DC |
| Memory |
64 MB |
Information About 2711P-K4M20D
The 2711P-K4M20D is part of the PanelView Plus 400 series and is designed to simplify operator interactions with industrial machinery and processes. It is equipped with a grayscale passive matrix (FSTN) display with a resolution of 320 x 240 pixels, offering clear visibility for essential control graphics and data. The keypad interface includes numeric and navigational keys that support 1 million actuations for long-term usability in demanding applications. This model supports Ethernet, RS-232, and two USB host ports, providing flexibility for device communication and external peripherals. The power input is rated for 18-30VDC and the device draws up to 25W at full load, making it suitable for panel mount DC-powered environments.
Key Features:
-
Durable keypad interface: Supports numeric and navigation keys with 1 million press rating and 340g actuation force.
-
Compact grayscale FSTN display: 3.8" screen with a 320 x 240 resolution and display area of 77 x 58 mm.
-
Versatile connectivity: Built-in Ethernet, RS-232, and dual USB host ports for streamlined integration.
-
Efficient memory management: 5MB/10MB flash (by series) and 64MB RAM for application storage and runtime operations.
-
Robust power design: 18-30VDC input range with max 25W consumption for industrial power systems.
The 2711P-K4M20D supports reliable and efficient control interface needs for machine and process monitoring in compact and cost-sensitive industrial installations.
