Description

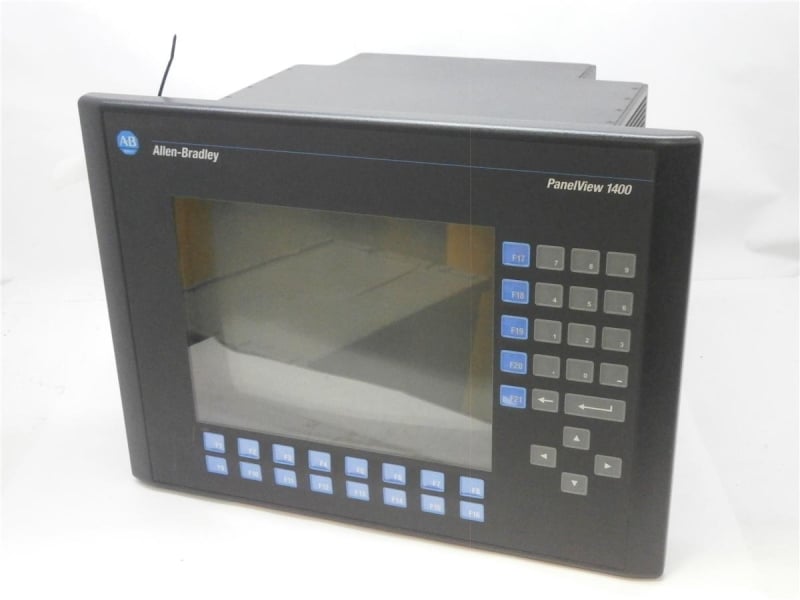

The Allen-Bradley 2711-K14C9 is a 14-inch color CRT operator interface terminal from the PanelView 1400 series. Featuring keypad input and RS-232 (DH-485) communication, it is designed for reliable and rugged industrial process control.
Technical Specifications
|
Condition
|
New/Never Used Surplus
|
| Brand |
Allen-Bradley
|
| Category |
HMI (Human Machine Interfaces)
|
| Part Number |
2711-K14C9
|
| Subcatecory |
|
| Power Type |
AC |
| Supply Voltage Limit |
85-264 Volts; 43-63 Hertz |
| Power Consumption |
200 VA max |
| Comm Port |
RS-232 (DH-485) |
| Total Application Flash Memory |
1008 Kbytes |
| Operating Shock |
15 g |
| Non-Operating Shock |
30 g |
| Operating Temperature |
32-131 F (0-55 C) |
| Dimensions |
13.97 x 19.0 x 15.53 in (355 x 483 x 394 mm) |
| Display Dimensions |
10.0 x 7.5 in (255 x 191 mm) |
| Weight |
44.75 lbs (20.3 kg) |
| Method of Input |
Keypad |
Information About 2711-K14C9
The 2711-K14C9 is part of Allen-Bradley’s PanelView 1400 line, engineered for large-screen machine interface applications. This operator terminal comes with a 14-inch full-color CRT display and keypad input, providing visual clarity and tactile control for factory operations. It operates on a wide AC voltage range of 85–264V at 43–63 Hz, with a maximum power consumption of 200 VA. This model is equipped with an RS-232 communication port (DH-485 protocol) for integration with industrial controllers and PLCs. With 1008 KB of flash memory, it stores HMI applications and user interface data for machine interaction.
Key Features:
-
14-Inch Color CRT Display: Large, vivid visualization area for operational monitoring
-
Keypad Input: Reliable tactile interface ideal for gloved environments
-
AC Powered: Operates on 85–264V AC for broad power compatibility
-
RS-232 DH-485 Communication: Enables connection with legacy Rockwell control systems
-
Durable Construction: Withstands industrial shock and temperature ranges
-
Large Flash Memory: 1008 KB for storing complex interface applications
-
Heavy-Duty Design: Robust build suitable for long-term panel installation
The 2711-K14C9 provides reliable control access and visibility in demanding manufacturing and process automation systems.
