Description

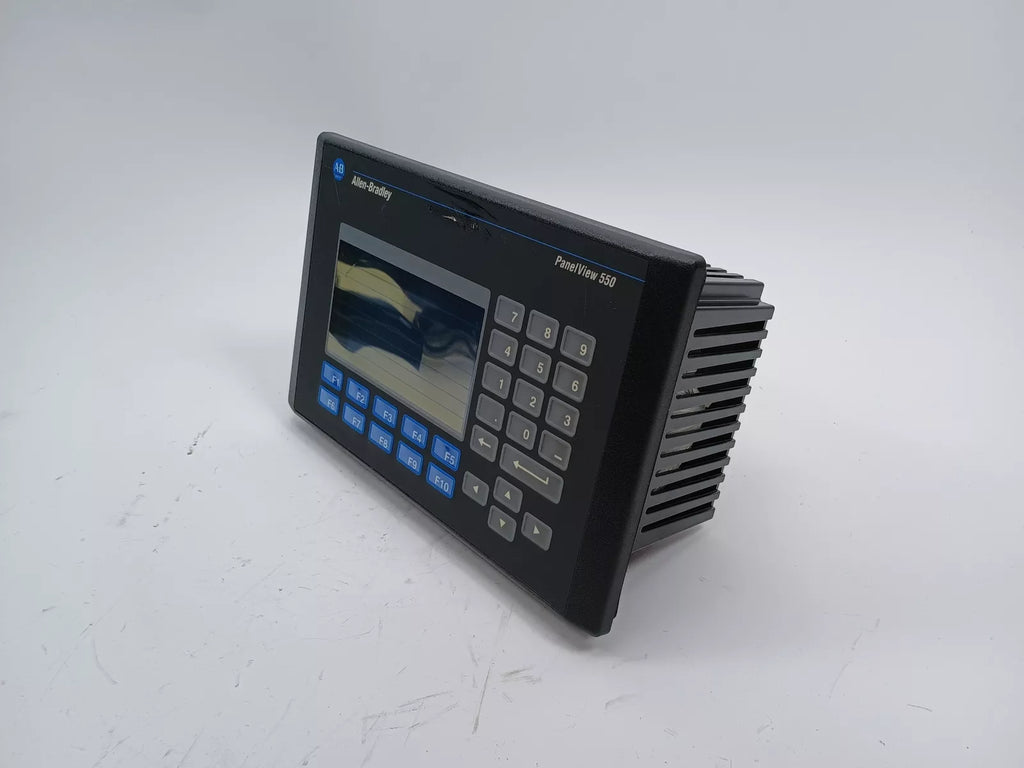

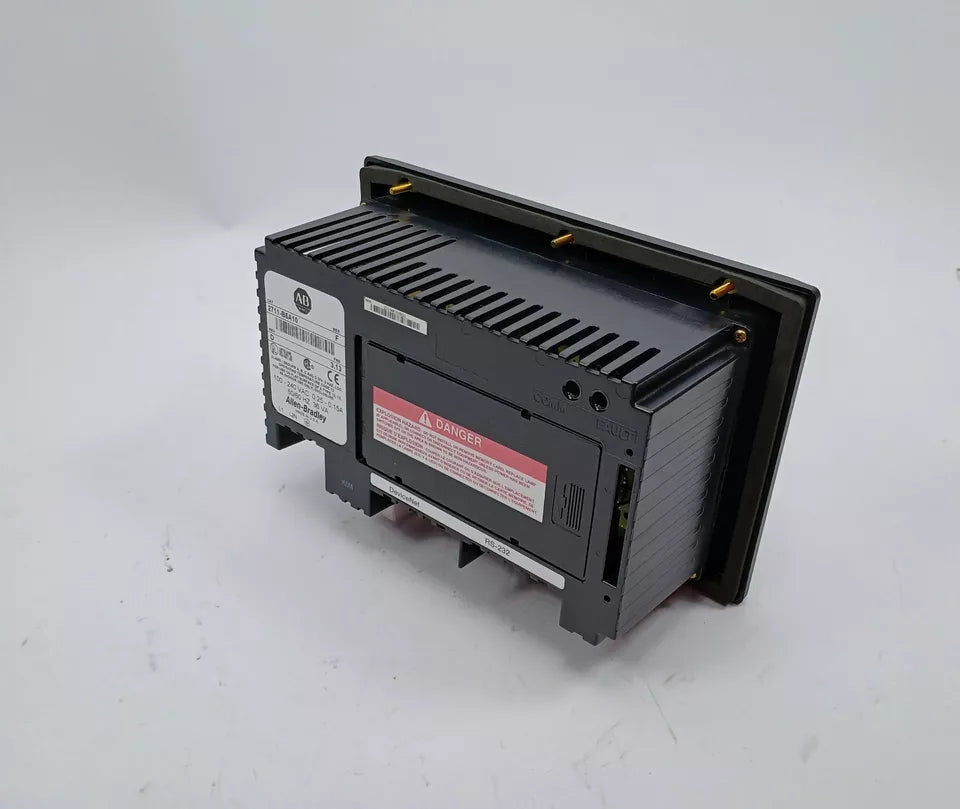

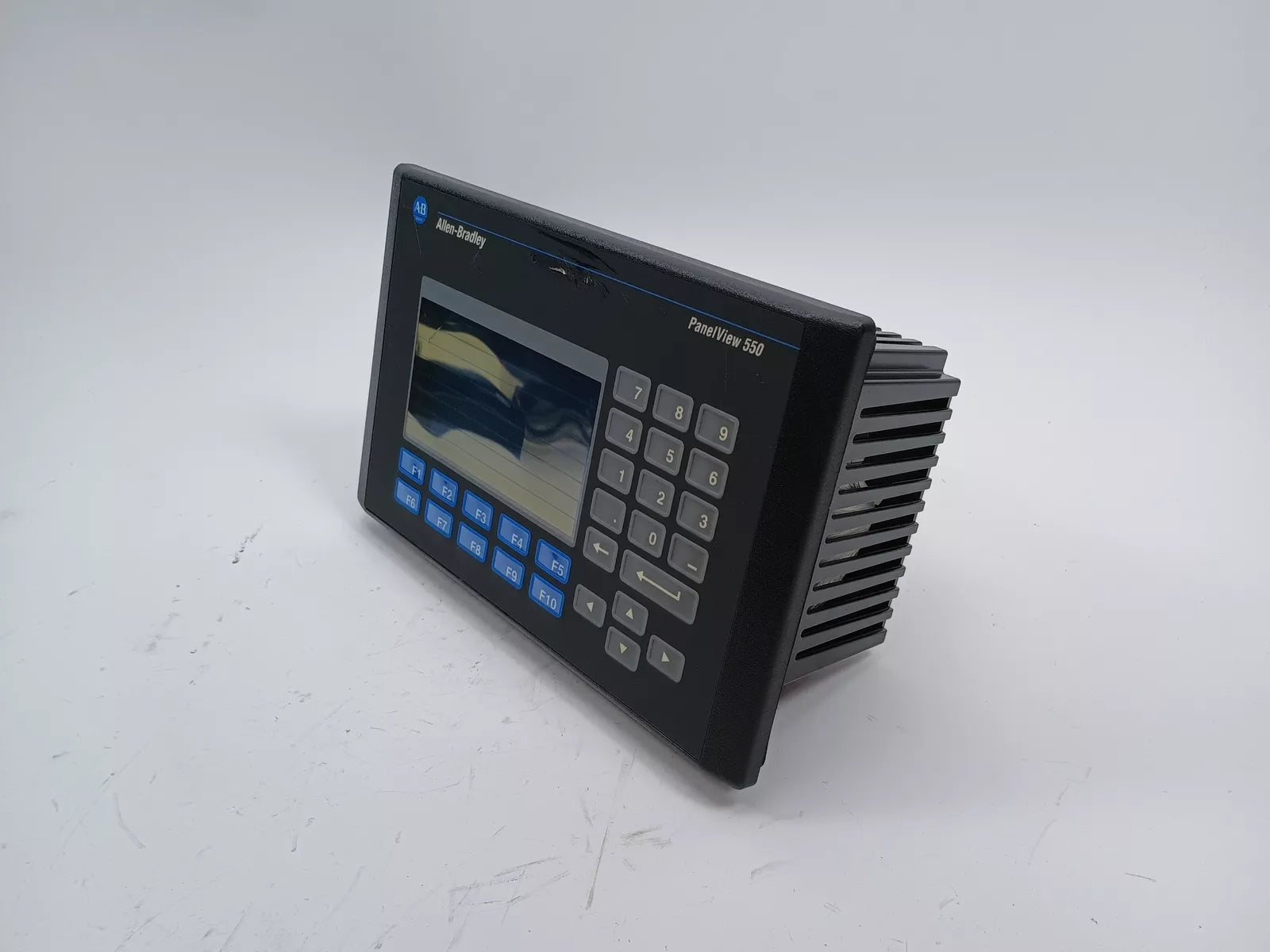

The 2711-B5A10 is a PanelView 550 graphic terminal from Allen-Bradley, featuring a 5.5-inch monochrome display with both keypad and touchscreen input.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Allen-Bradley
|
| Category |
|
| Part Number |
2711-B5A10
|
| Subcatecory |
|
| Product Type |
Operator Terminals |
Display Type
|
Monochrome LCD blue mode display |
| Display Area |
120 x 60 mm (4.75 x 2.38 in.) |
| Resolution |
256 x 128 |
| Touchscreen |
Touch cells: 128 Actuation: 1 million presses |
| Keypad Function Keys |
10 function keys (F1…F10) |
| Application Memory |
170 KB application runtime; 240 KB nonvolatile memory (application objects plus text and bitmaps) |
| Communication Ports |
DeviceNet; RS232 (printer) |
| Input Voltage Range |
|
| Product Line |
|
| Display Size |
|
| Input Power |
120 VAC |
| Weight |
|
Information About 2711-B5A10
The Allen-Bradley 2711-B5A10 is a PanelView 550 Standard Operator Terminal designed for industrial automation applications. It combines a 5.5-inch monochrome LCD display with both keypad and touchscreen inputs, facilitating versatile user interaction.
Key Features:
-
Display: 5.5-inch monochrome LCD (blue mode)
-
Input Methods:
-
Keypad: 10 programmable function keys (F1–F10), navigation arrows, numeric keys
-
Touchscreen: 128 touch cells with an actuation rating of 1 million presses
-
Memory:
-
Application Runtime: 170 KB
-
Non-volatile Memory: 240 KB for application objects, text, and bitmaps
-
Communication Ports:
-
DeviceNet
-
RS-232 (printer port)
-
Power Supply: 85–264V AC, 47–63 Hz
-
Mounting: Panel-mounted; compatible with NEMA Type 12/13 and 4X (indoor use) enclosures
-
Environmental Ratings:
-
Operating Temperature: 0 to 55°C (32 to 131°F)
-
Storage Temperature: -20 to 70°C (-4 to 158°F)
-
Altitude: Up to 2000 meters (6561 feet)
