Description

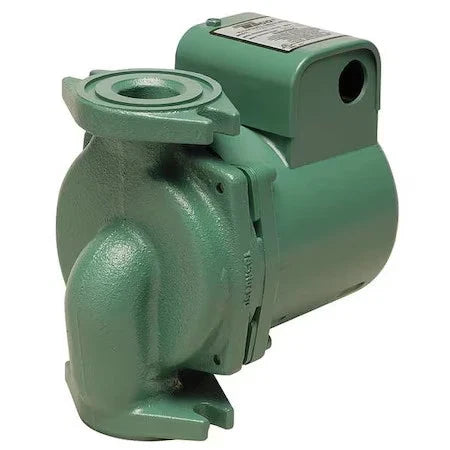

The Taco 2400-20-3P circulator pump is a cast-iron, high-capacity hydronic pump designed for dependable fluid circulation in heating, cooling, and recirculation systems. This 1/6 HP unit delivers stable performance with medium to high flow and head requirements, making it suitable for both residential and commercial applications. The Taco 2400-20-3P provides efficient operation through its close-coupled motor and durable mechanical sealing system.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Taco |
| Category |
Pumps |
| Part Number |
2400-20-3P |
| Subcategory |
Hydraulic Pump/Motor |
| Material |
Cast Iron |
| Motor Power |
1/6 HP |
| Voltage |
115 V |
| Amperage |
1.9 A |
| Frequency |
60 Hz |
| Phase |
1 |
| Maximum Flow |
32 GPM |
| Maximum Head |
29 ft |
| Maximum Operating Pressure |
150 PSI |
| Temperature Range |
40°F – 225°F |
| Connection Type |
Flanged × Flanged |
| Connection Sizes |
3/4", 1", 1-1/4", 1-1/2" |
| Impeller Material |
Noryl® |
| Seal Type |
Carbon/Silicon-Carbide |
| Motor Speed |
3450 RPM |
| Application |
Hydronic heating, cooling, and recirculation |
| Weight |
11.00 lbs |
Information About 2400-20-3P
The 2400-20-3P is part of Taco’s 2400 Series, engineered for systems requiring higher flow rates and sustained operating pressures. It features a cast-iron body, a Noryl® impeller, and a carbon/silicon-carbide mechanical seal that supports long service life in closed-loop hydronic circuits. This model is compatible with various flanged piping sizes, allowing flexible installation in heating loops, chilled water lines, and hot-water recirculation setups. Its sealed-for-life motor and compact footprint make it a reliable choice for equipment rooms with limited space.
Key Features:
- High-capacity flow output: Supports up to 32 GPM for medium and large hydronic systems.
- Durable cast-iron construction: Provides long-term corrosion resistance in closed-loop applications.
- Sealed motor design: Permanently lubricated bearings eliminate routine maintenance.
- Precision impeller engineering: Noryl® impeller ensures efficient hydraulic performance.
- Carbon/silicon-carbide seal: Enhances pump longevity under continuous operation.
- Universal flange compatibility: Fits multiple piping sizes for simplified retrofits.
- Anti-condensate housing: Suitable for chilled-water applications without moisture issues.
- High operating temperature range: Handles fluids from 40°F to 225°F for versatile system integration.
The 2400-20-3P delivers the reliability and precision required for stable circulation in modern hydronic heating and cooling systems.
