Description

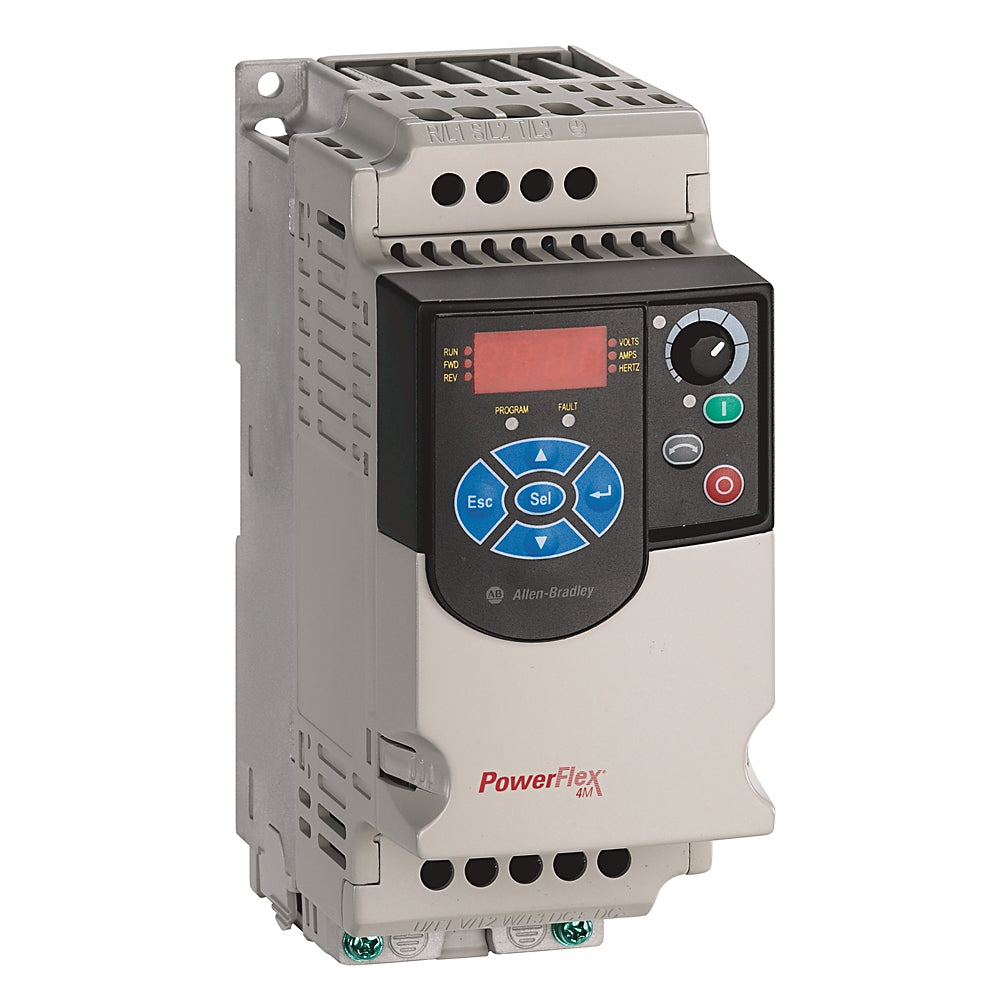

The 22F-D1P5N113 is a PowerFlex 4M AC drive from Allen-Bradley, designed for simple and cost-effective motor control. It supports 240V single-phase input, delivers 1.5A output current, and is rated for up to 0.5 HP.
Technical Specifications
|
Condition
|
New/Never Used Surplus
|
| Brand |
Allen-Bradley |
|
Category
|
|
|
Part Number
|
22F-D1P5N113
|
| Subcatecory |
|
| Product Line |
Powerflex 4M |
| Amperage |
1.5 Amp |
| Enclosure |
IP20,UL-NEMA Type Open |
| Input Voltage |
480 V |
| Output Current |
1.5 A |
| Power Rating |
0.4 kW |
| TC Connection |
Fixed Terminal Block |
| Frequency |
50-60 Hz |
| Mounting Type |
Panel Mount |
| Power Factor |
0.98 |
| Standard |
C-TICK,CCC,CE,CUL,GOST,KC,UL |
| Weight |
1.36 kgs |
Information About 22F-D1P5N113
The Allen-Bradley 22F-D1P5N113 is a PowerFlex 4M series adjustable frequency AC drive, designed to provide efficient motor control in various industrial applications. Its compact design and versatile features make it suitable for machine-level speed control, offering application flexibility and ease of programming.
Key Features:
-
Input Voltage: 480V AC, three-phase
-
Output Current: 1.5 Amps
-
Power Rating: 0.4 kW (0.5 HP)
-
Enclosure Rating: IP20 (Open), suitable for panel mounting
-
Control Method: Voltage vector control for enhanced motor performance
-
Human Interface Module: Fixed LED keypad with potentiometer for intuitive operation
-
Communication: Integral RS-485 communications port for seamless integration with control systems
-
EMC Filtering: Equipped with an internal CE-compliant filter to reduce electromagnetic interference
