Description

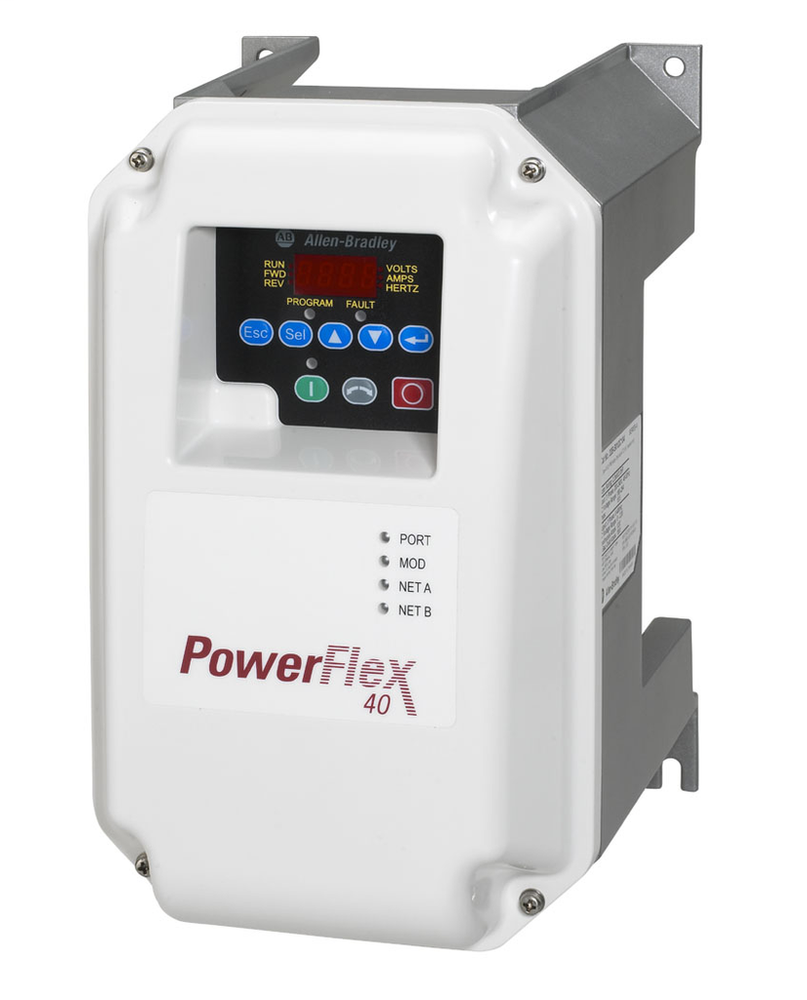

The Allen-Bradley 22B-D010C104 is a PowerFlex 40 AC drive designed for general-purpose motor control in industrial applications. It supports 3-phase, 480V AC input, delivers 10.5 A output current, and is suitable for motors up to 5 HP.





Technical Specifications

Condition	New/Never Used Surplus
Brand	Allen-Bradley
Category	Drives
Part Number	22B-D010C104
Subcategory	Motor Drives
Input Voltage	480VAC
Input Phase	3-Phase
Output Voltage	0-480VAC
Rated Current Output	10.5 A
Rated Power	5.0 HP (4.0 KW)
Installation	Panel Mount
Enclosure Rating	IP66, NEMA/UL Type 4X enclosure
Emission	Unfiltered
Frame	B
Product Line	Powerflex 40
Weight	5.32 kgs





Information About 22B-D010C104

The Allen-Bradley 22B-D010C104 is a PowerFlex 40 Adjustable Frequency AC Drive engineered for precise motor control in various industrial applications. Operating with a 3-phase 480V AC input, it delivers an output power of 4.0 kW (5.0 HP) and an output current of 10.5 A. The drive is housed in an IP66-rated (NEMA 4X) enclosure, providing robust protection against dust and water, making it suitable for challenging environments.

Key Features:

• Control Capabilities: Supports both Sensorless Vector Control (SVC) and Volts/Hertz (V/Hz) control methods, enhancing its versatility across different motor control scenarios.

• Communication Interface: Equipped with an integral RS485 communication port, facilitating seamless integration into various control systems.

• Human Interface Module (HIM): Features an LED display with a digital keypad, allowing for straightforward operation and parameter adjustments.

• Frame Size: Classified as Frame Size B, indicating its physical dimensions and installation requirements.

Designed for applications such as conveyors, pumps, and fans, the 22B-D010C104 offers reliable performance and flexible control options. Its combination of advanced features and robust design makes it a suitable choice for demanding industrial environments.
