Description

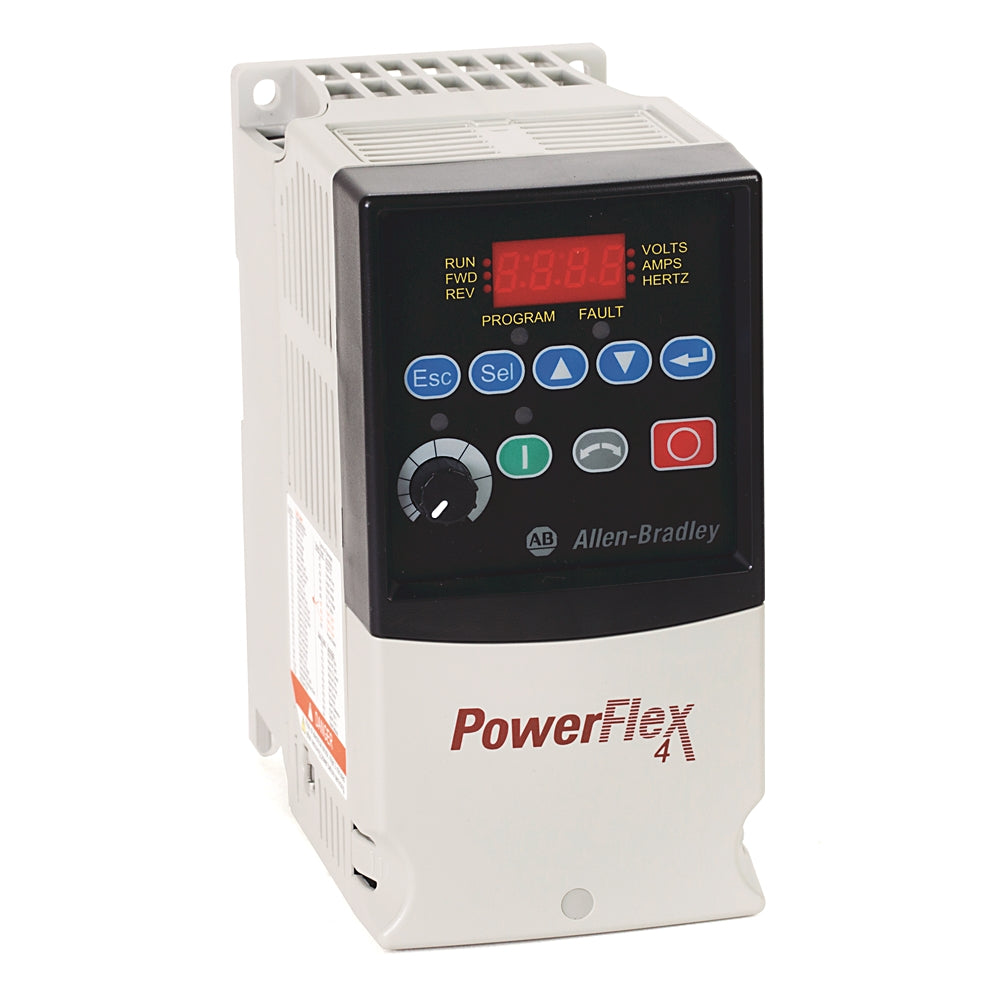

The 22A-A6P8N103 is a PowerFlex 4 AC drive from Allen-Bradley, designed for simple and cost-effective motor control. It operates on 240V single-phase input, delivers 6.8A output current, and supports motors up to 1.5 HP.
Technical Specifications
|
Condition
|
New/Never Used Surplus
|
| Brand |
Allen-Bradley |
|
Category
|
|
|
Part Number
|
22A-A6P8N103
|
| Subcatecory |
|
| Input Voltage |
240VAC |
| Input Phase |
1 |
| Rated Current Output |
6.8 A |
| Rated Power |
1.5kW (2.0 HP) |
| Installation |
Panel Mount / DIN Rail |
| Enclosure Rating |
IP20 / NEMA UL Type Open |
| Keypad |
LED Keypad |
| I/O Terminal |
Discrete Inputs: 3 fixed for START/STOP/REV; 2 Fully Programmble Discrete Outputs: 4 fully programmable; Analog Input: 2 1 0…10V or 4…20 mA) Discrete Output: 1 - N.O/N.C. dry contact |
| Product Line |
PowerFlex 4 |
| Wattage |
1.5 Kilowatt |
| Horsepower |
2 Horsepower
|
| Weight |
0.69 kgs |
Information About 22A-A6P8N103
The 22A-A6P8N103 is part of Allen-Bradley's PowerFlex 4 series, offering efficient and flexible motor control solutions for various industrial applications. Designed for simplicity and space efficiency, it is suitable for applications such as fans, pumps, and conveyors.
Key Features:
-
Input Voltage: 200–240V AC, single-phase
-
Output Current: 6.8 Amps
-
Power Rating: 1.5 kW (2 HP)
-
Enclosure Type: Panel Mount – IP20, NEMA/UL Type Open
-
Human Interface Module (HIM): Fixed LED display with digital keypad
-
EMC Filtering: No CE compliant filter included
-
Brake Drive: Not equipped with a brake transistor
