Description
Allen-Bradley PowerFlex 700, 27A, 15 HP AC Drive, 480V, 3-Phase, NEMA Type 1, with internal EMC filter. Designed for high-performance motor control in industrial applications.
Technical Specifications
|
Condition
|
New/Never Used Surplus
|
| Brand |
Allen-Bradley |
|
Category
|
|
|
Part Number
|
20BD027A0AYNANC0
|
| Subcatecory |
|
| Amperage |
27 Amp |
| Enclosure Type |
IP20, NEMA/UL Type 1, Frame Size 2 |
| Output |
2 Analog |
| Size |
Size 2 Frame |
| Type |
20B |
| Control Type |
Vector Control with 24 V I/O |
| Input Voltage |
480 V |
| Standard |
C-TICK,CE,CUL,GOST,KC,MARINE,UL |
| Weight |
12.70 kgs |
Information About 20BD027A0AYNANC0

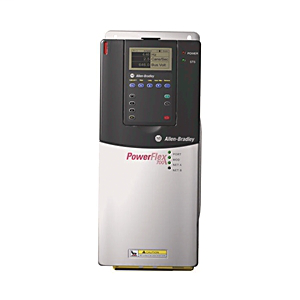

The Allen-Bradley PowerFlex 700 AC Drive, catalog number 20BD027A0AYNANC0, is engineered for precise motor control in industrial settings.
Key Features:
-
Input Voltage: 480V AC, 3-phase
-
Output Current: 27 Amps
-
Power Rating:
-
20 HP (Normal Duty)
-
15 HP (Heavy Duty)
-
Enclosure: IP20 / NEMA Type 1 with conformal coating
-
Control Type: Vector Control with 24V I/O
-
Brake: Integrated Brake IGBT (Insulated Gate Bipolar Transistor) installed
-
EMC Compliance: Equipped with a Second Environment Filter per CE EMC directive (89/336/EEC)
-
Human Interface Module (HIM): Not included; features a blank plate
