Description

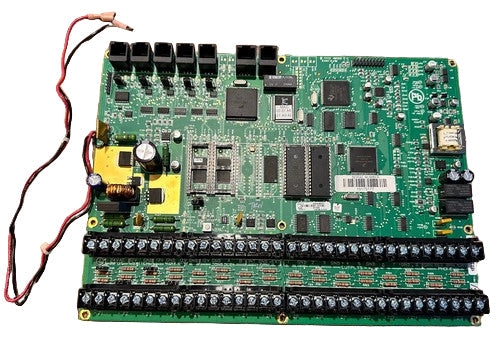

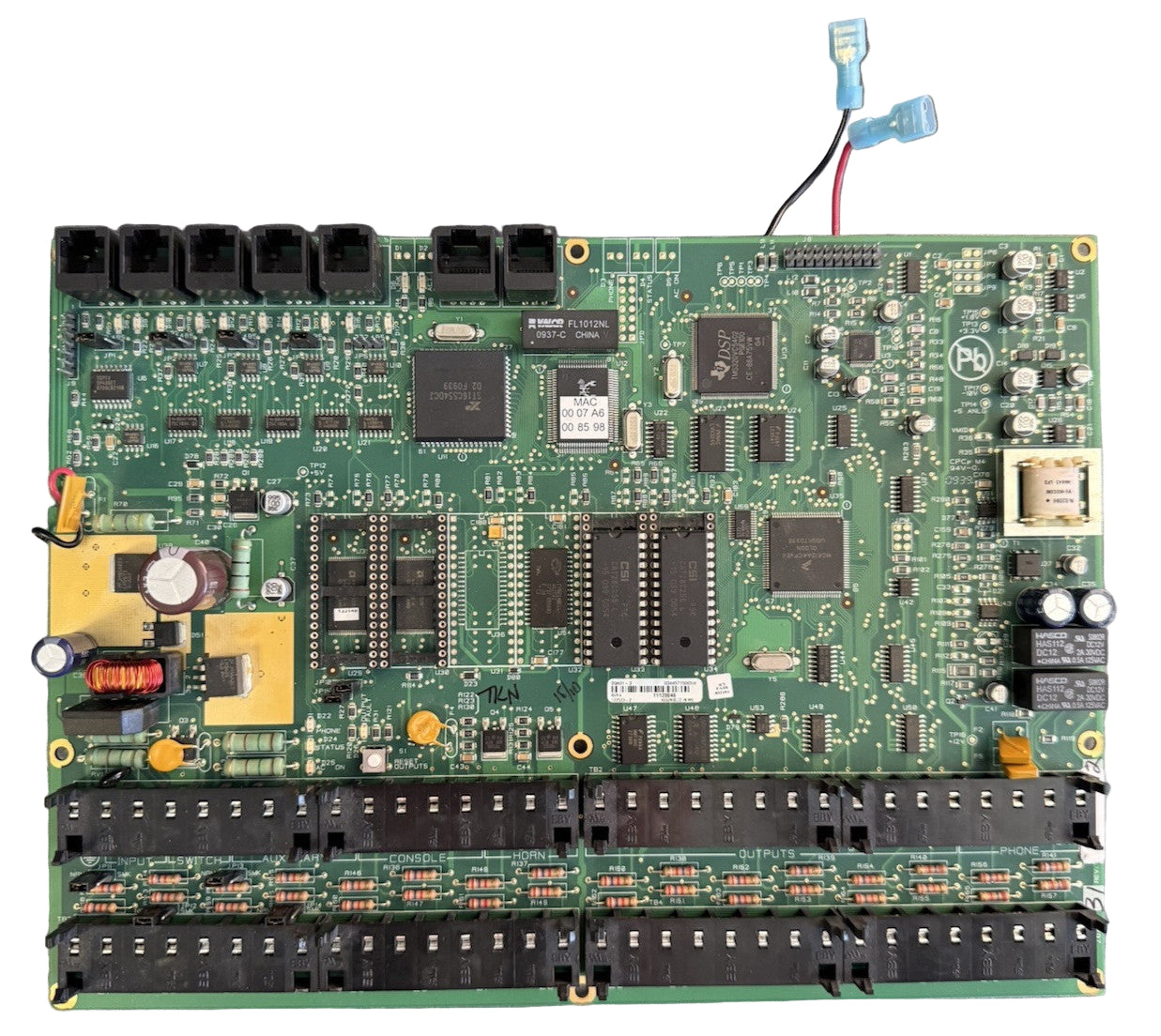

The Leviton 20A01‑31 Omni Pro II Controller is the flagship home and small‑business automation hub, offering comprehensive integration of security, lighting, HVAC, audiovisual, and access control systems.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Leviton |
| Category |
Security & Automation Controller |
| Part Number |
20A01-31 |
| Subcategory |
Integrated Whole-Home and Small-Business Automation Panel |
| System Capacity |
Up to 176 security zones, 64 thermostats, 31 lighting rooms, and 16 access control readers |
| Lighting Capability |
31 rooms / 256 lighting addresses; supports scenes and schedules with astronomical clock |
| Security Integration |
UL Listed, CP-01 compliant; supports intrusion, fire, CO, water, motion, and hazard sensors (wired or wireless); built-in digital communicator for up to 8 voice-reporting numbers |
| Serial Interfaces |
Five RS-232 serial ports for integration with automation, AV, irrigation, telecom, shading, and other subsystems |
| Remote Connectivity |
Built-in Ethernet port for mobile, tablet, and PC access/control |
| Energy & HVAC Management |
Supports OmniTouch thermostats, energy-saving routines, and temperature-based events |
| Automation & Scheduling |
Astronomical clock with daylight saving adjustment for automated lighting and scene control |
| Audio/AV Integration |
Supports Hi-Fi 2 and compatible audio systems; controls A/V, shades, and motorized devices via events |
| Firmware & Reset Info |
Common reset code 1111; supports latest firmware updates (e.g., version 4.0b) |
| Weight |
~1.6 lb (0.73 kg) |
Information About 20A01-31
The Leviton 20A01-31 Omni Pro II is a flagship integrated security and automation controller built for large residential and small commercial applications. It unites intrusion detection, lighting control, HVAC management, access control, and audio/video integration into one comprehensive system. With capacity for up to 176 security zones, 256 lighting addresses, and 64 thermostats, the Omni Pro II offers unmatched scalability. It features built-in Ethernet connectivity for remote monitoring and control, along with five serial ports for extensive third-party device integration, making it ideal for complex automation environments.
Key Features:
- Comprehensive System Control: Integrates security, lighting, HVAC, access control, and A/V automation in one platform.
- Maximum Expansion: Supports up to 176 security zones, 256 lighting addresses across 31 rooms, and 64 communicating thermostats.
- Advanced Lighting Automation: Offers scene programming, scheduling, and astronomical clock adjustments.
- Climate Management: Integrates with multiple thermostats for energy efficiency and comfort control.
- Access Control: Connects up to 16 access readers for robust entry management.
- Multiple Connectivity Options: Five built-in serial ports and Ethernet port for network and device integration.
- Remote Access: Manage the system from anywhere via smartphone, tablet, or PC.
- Audio/Video Integration: Supports Hi-Fi 2 and compatible systems for whole-home entertainment control.
- Secure Installation: Available with lockable metal enclosure.
- Backup Power Support: Battery backup connection for uninterrupted operation.
The Omni Pro II delivers enterprise-level performance for automation and security, offering the scalability and flexibility needed to manage and protect large, sophisticated properties.
