Description

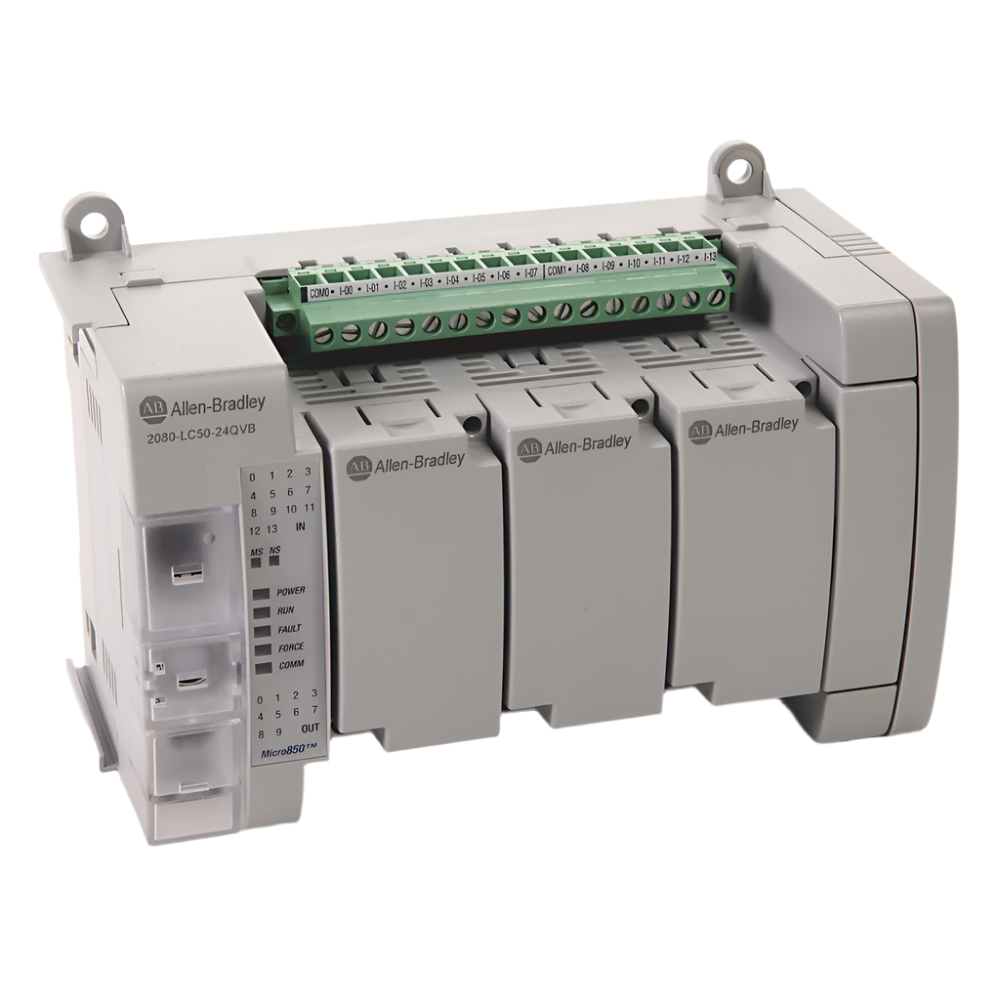

The Allen-Bradley 2080-LC50-24QVB is a Micro850 Programmable Logic Controller (PLC) designed for flexible and scalable machine control applications.





Technical Specifications

Condition	New/Never Used Surplus
Brand	Allen-Bradley
Category	Relays
Part Number	2080-LC50-24QVB
Subcategory	Relays & Sockets
Memory	140 KB
Number of Channels	14 Input, 10 Output
Output Signal	24V DC Sink
Standard	C-TICK,CCC,CE,CUL,KC,UL
Type	Controller
Enclosure	IP20
Mounting Type	DIN Rail, Panel
Operating Temperature	149°F
Power Supply	24 VDC
Temperature Rating	-20 to 65°C
Voltage	24 VAC/VDC
Dimensions HxWxD	90 x 145 x 80 millimeters
Weight	0.44 kgs





Information About 2080-LC50-24QVB

The Allen-Bradley 2080-LC50-24QVB is a Micro850 Programmable Logic Controller (PLC) designed for standalone machine control applications. It offers flexibility and scalability, making it suitable for various industrial automation tasks.

Key Features:

• Integrated I/O:

  • Digital Inputs: 14 inputs supporting 24V DC/AC signals.

  • Digital Outputs: 10 sinking outputs rated at 24V DC.

• Communication Ports:

  • Ethernet Port: Enables network connectivity for programming and communication with other devices.

  • USB Programming Port: Facilitates easy programming and configuration.

  • Non-Isolated RS232/485 Serial Port: Supports serial communication with peripheral devices.

• Expansion Capabilities:

  • Equipped with three plug-in slots for additional modules, allowing customization based on application needs.

  • Supports up to four local expansion I/O modules, enhancing its adaptability to complex control tasks.

• High-Speed Counter (HSC):

  • Provides up to four HSC channels, enabling precise counting and measurement functions.

• Pulse Train Output (PTO)/Pulse Width Modulation (PWM):

  • Offers two PTO/PWM channels, useful for motion control applications requiring precise output signals.

• Memory:

  • Features 10 KB of program memory and 20 KB of data memory, accommodating substantial control programs and data storage.

• Environmental Ratings:

  • Operating temperature range: -20°C to 65°C (-4°F to 149°F).

  • Storage temperature range: -40°C to 85°C (-40°F to 185°F).

  • Relative humidity tolerance: up to 95% non-condensing.

  • Shock resistance: 30 g.

  • Vibration resistance: 2 m/s² at up to 500 Hz.

• Certifications:

  • Complies with IP20 rating for protection against solid objects.

  • Certified for use in Pollution Degree 2 industrial environments and overvoltage Category II applications.

The Micro850 2080-LC50-24QVB PLC's combination of integrated features and expansion options makes it a versatile solution for diverse industrial automation applications.
