Description

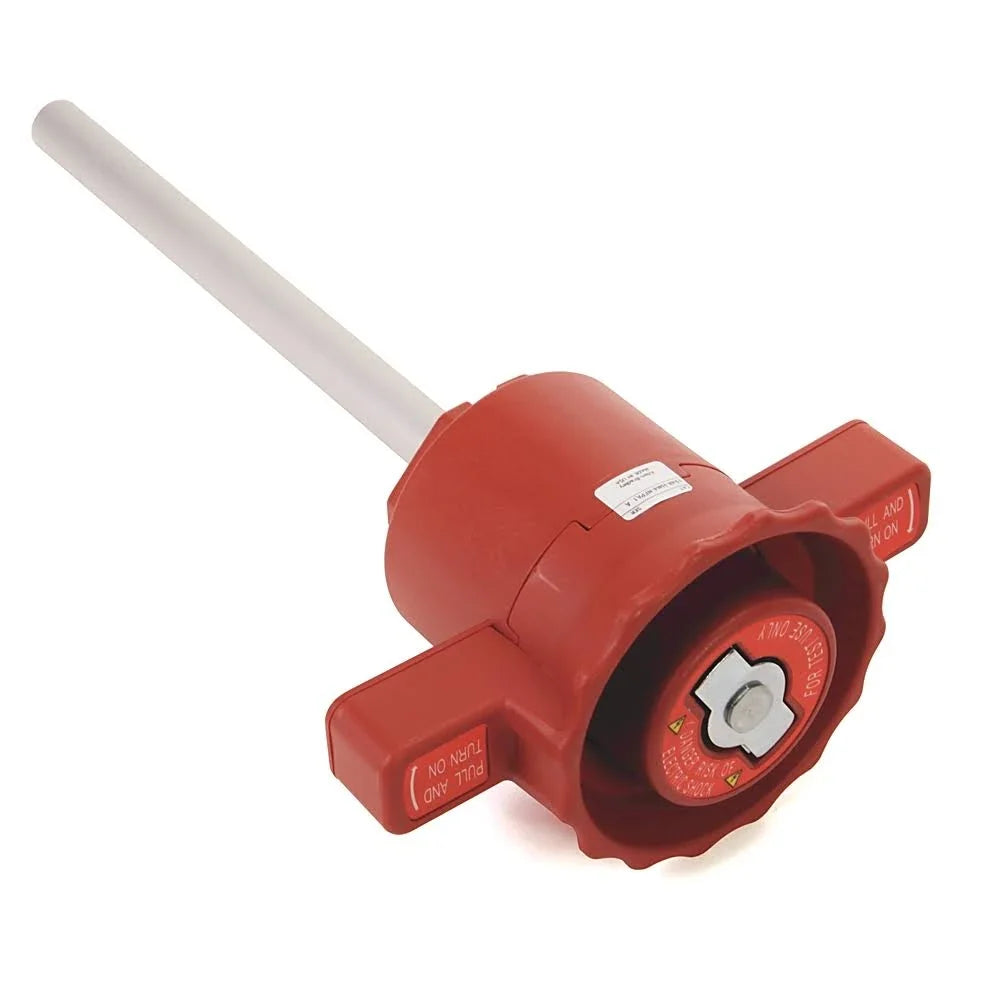

The Allen-Bradley 194R-HM4-NFPA1 is an internal operating handle designed for use with 100–400 A 194R series disconnect switches.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Allen-Bradley |
| Category |
Panel Accessories |
| Part Number |
194R-HM4-NFPA1 |
| Subcategory |
|
|
Catalog Series
|
194R |
|
Compatible Switch Rating
|
100–400 A Disconnect Switches |
|
Shaft Length
|
10.6 inches / 320 mm |
| Functionality |
Permits operation of the disconnect switch when the panel door is open |
| Compliance Standard |
NFPA 79 |
| Weight |
3.00 lbs |
Information About 194R-HM4-NFPA1
The Allen-Bradley 194R-HM4-NFPA1 is an internal operating handle designed for use with 100–400 A 194R series disconnect switches. Featuring a 12.6-inch (320 mm) shaft, it allows operation of the disconnect switch when the panel door is open, ensuring compliance with NFPA 79 safety standards.
Key Features:
-
Application: Compatible with 100–400 A 194R disconnect switches.
-
Shaft Length: 12.6 inches (320 mm).
-
Compliance: Meets NFPA 79 requirements for operation with the panel door open.
-
Design: Internal handle configuration.
This handle enhances safety and accessibility in industrial control panels, ensuring that disconnect switches can be operated without opening the panel door.
