Description

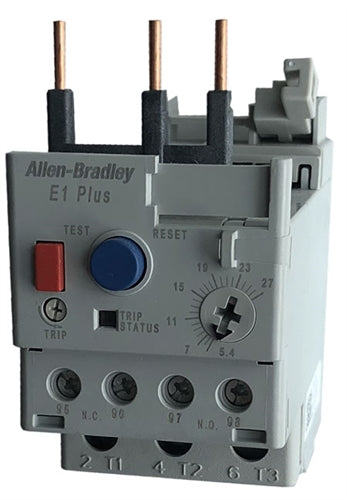

The Allen-Bradley 193-ED1EB is a solid-state, three-phase electronic overload relay from the E1 Plus series, designed to protect motors operating within a 5.4–27 A range.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Allen-Bradley
|
| Category |
|
| Part Number |
193-ED1EB
|
| Subcatecory |
Solid State Overload/Relay
|
| Phases |
3 |
Current Rnage
|
5.4 - 27 A |
|
Product Family
|
Bulletin 193 IEC Series |
| Contact Configuration |
DPCO |
| Trip Class |
Class 10 Protection |
| Terminal Type |
Screw |
| Relay Type |
Solid State |
| Manual Reset |
Yes |
| Weight |
0.51 lbs |
Information About 193-ED1EB

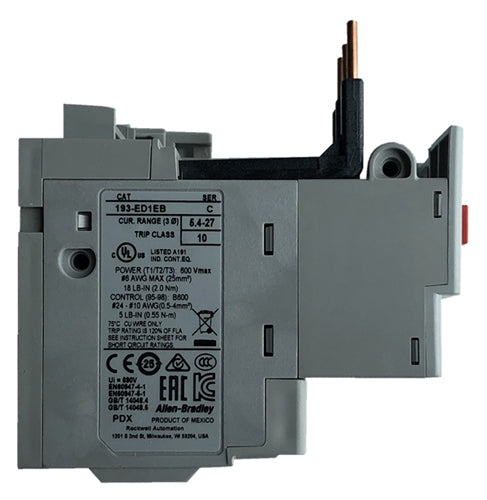

The Allen-Bradley 193-ED1EB is a solid-state, three-phase electronic overload relay from the E1 Plus series, designed to protect motors operating within a 5.4–27 A range. It features a fixed Trip Class 10 and a manual reset mechanism, providing reliable protection against motor overloads and phase loss conditions.
Key Features:
-
Current Range: 5.4–27 A
-
Trip Class: Fixed Class 10
-
Reset Type: Manual
-
Protection Features: Phase loss detection, ambient temperature compensation, and thermal memory for accurate motor protection
-
Auxiliary Contacts: 1 Normally Open (N.O.) and 1 Normally Closed (N.C.) isolated contacts, rated B600
-
Mounting Compatibility: Directly mounts to Allen-Bradley 100-C09 to 100-C23 contactors
-
Design: Over-molded power connections for sturdy assembly and low energy consumption (150 mW)
This relay is suitable for applications requiring precise motor protection and is designed for straightforward installation and setup.
