Description

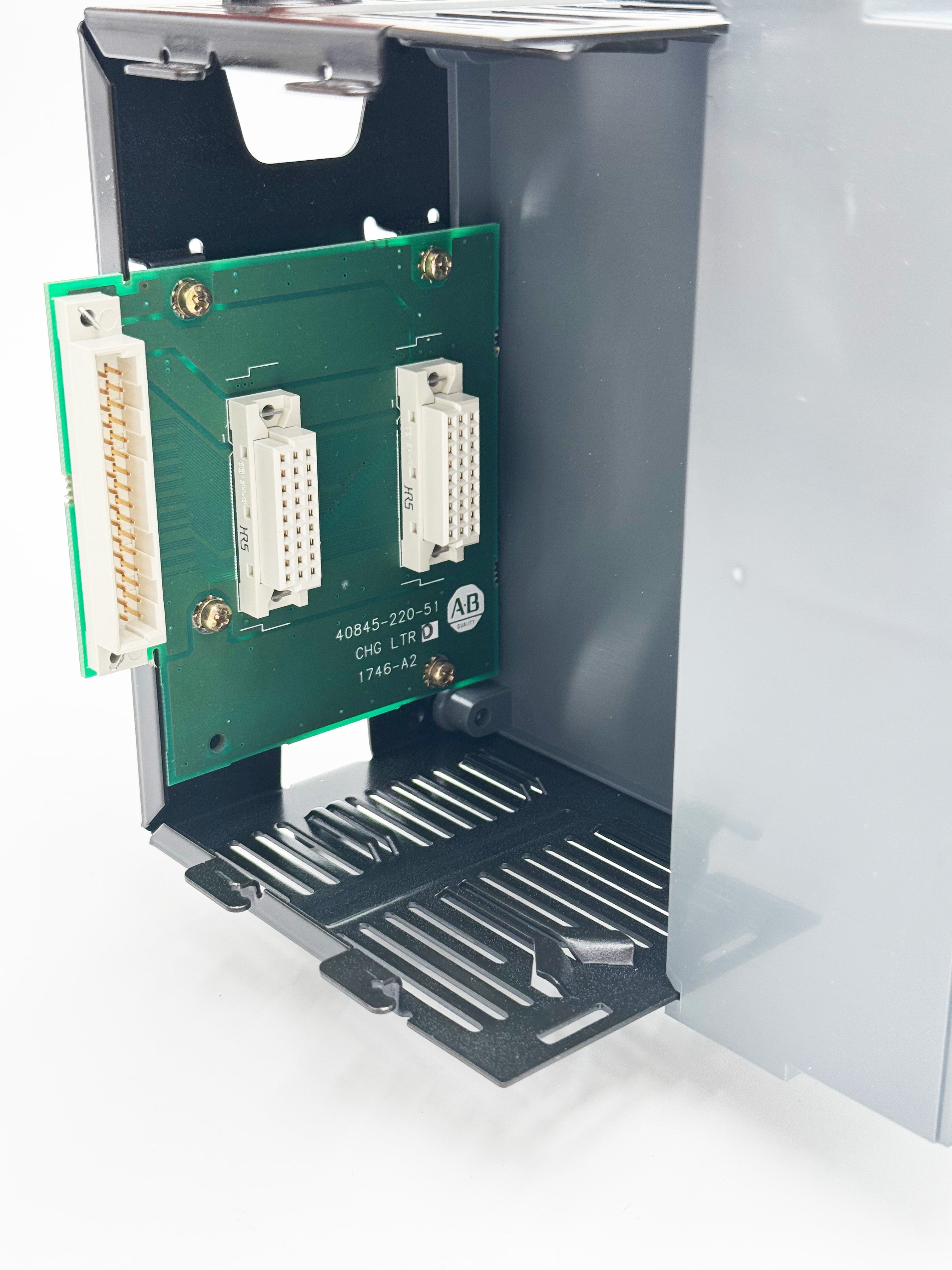

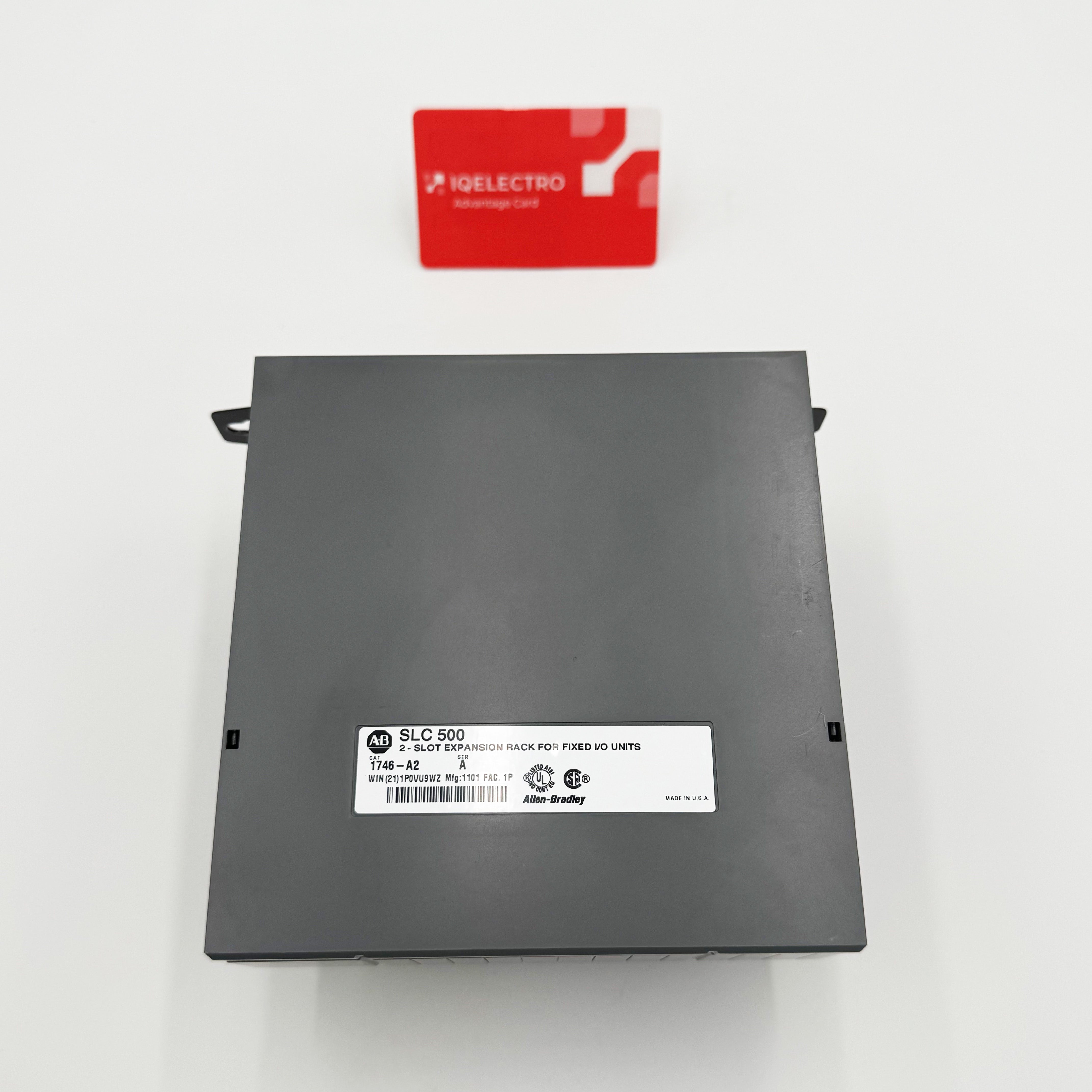

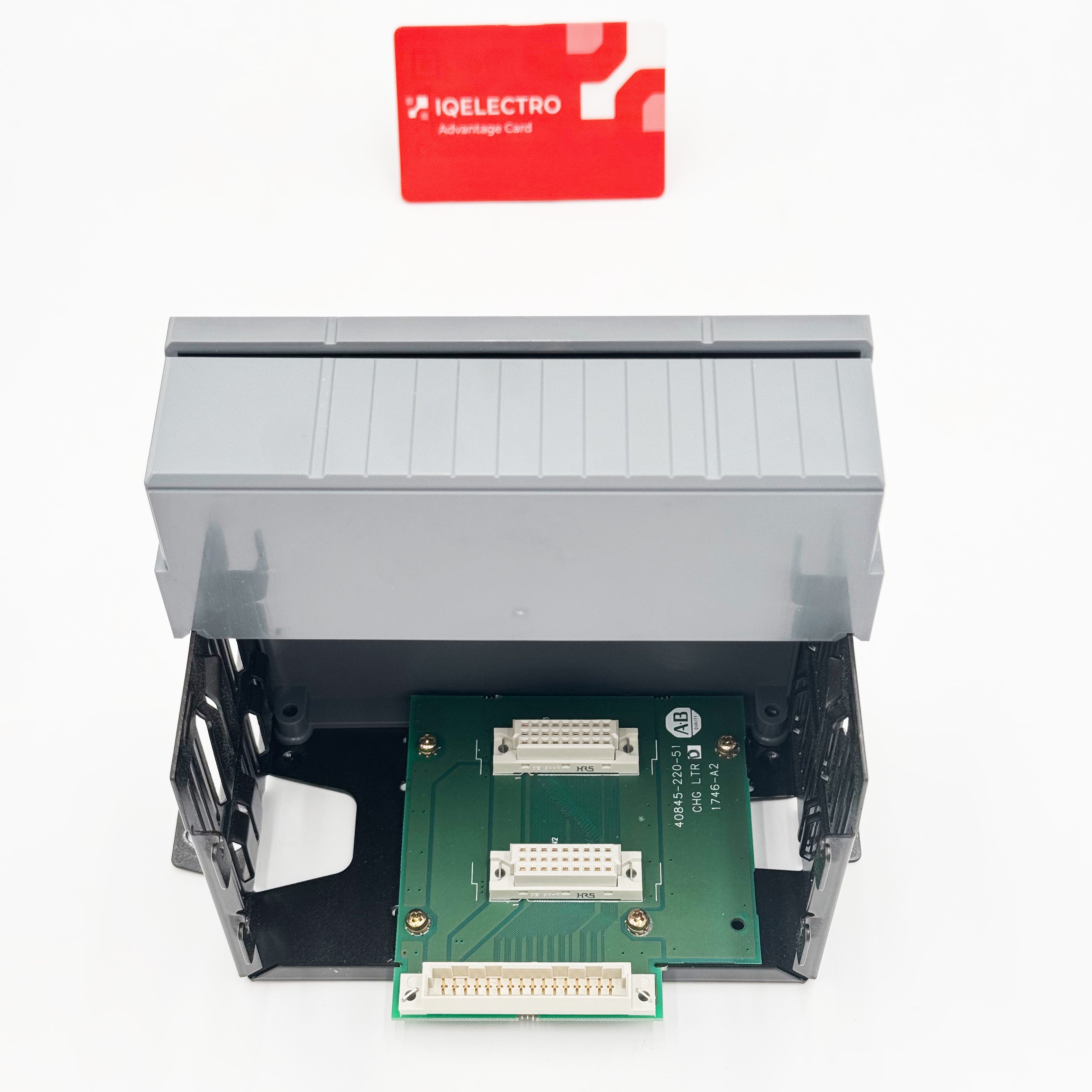

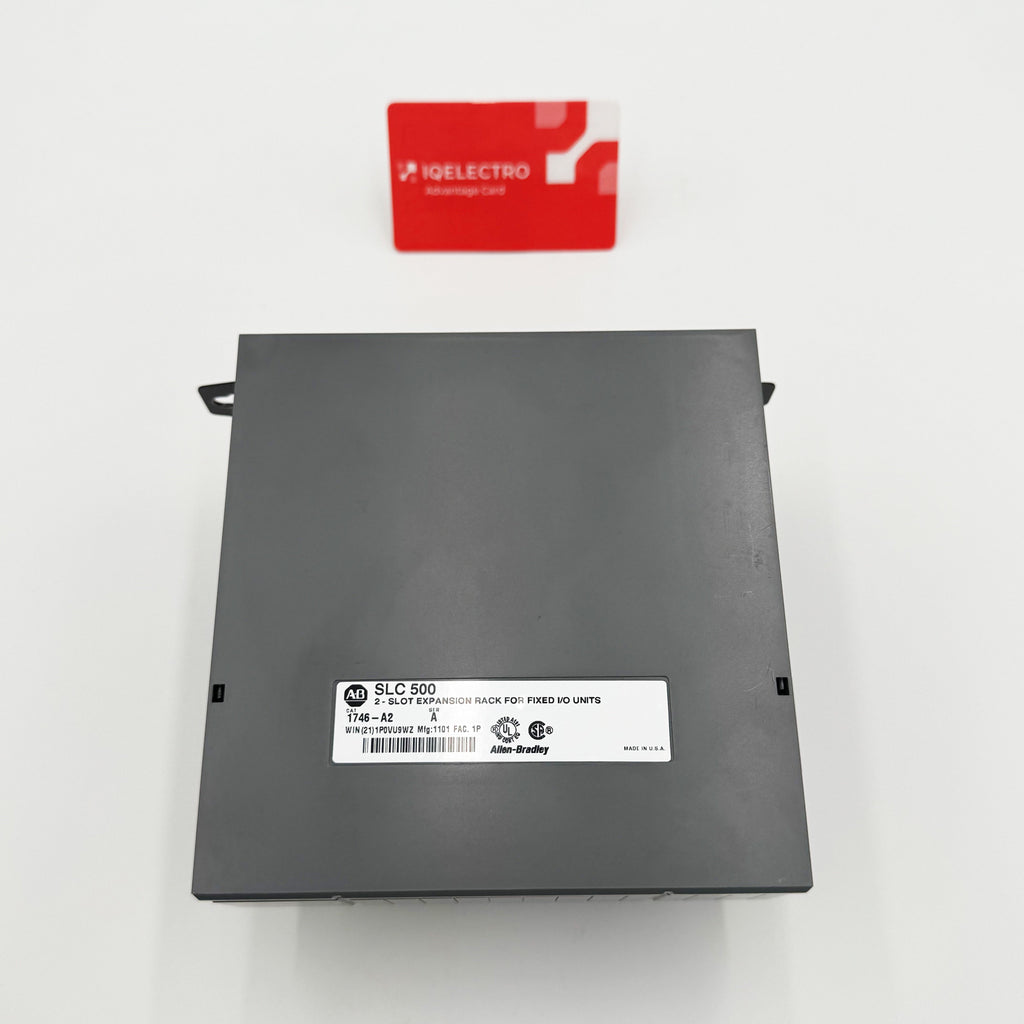

The Allen-Bradley 1746-A2 is a 2-slot expansion chassis designed for the SLC 500 series programmable controller system. It supports the back-panel mounting of additional I/O or specialty modules and integrates seamlessly with the main SLC chassis via interconnect cabling.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Allen-Bradley
|
| Category |
|
| Part Number |
1746-A2 |
| Subcatecory |
|
| Series |
SLC 500 |
| Hardware Type |
Expansion Chassis |
| Slots |
2 |
| Mounting |
Back-Panel |
| Weight |
4.2 pounds (1.9 kilograms) |
| Dimensions |
6.73 x 19.78 x 5.71 inches |
Information About 1746-A2
The 1746-A2 belongs to the Allen-Bradley SLC 500 series and offers two additional module slots to extend the functionality of an existing controller system. It supports back-panel mounting and enables users to expand I/O capacity or integrate communication and specialty modules as needed. The chassis weighs approximately 4.2 pounds and measures 6.73 x 19.78 x 5.71 inches, ensuring compact installation within standard enclosures. Built for industrial-grade durability, it is suited for applications where system scalability and modular control are essential.
Key Features:
-
2-Slot Expansion Capacity: allows installation of two additional SLC 500 modules to extend system functionality.
-
Back-Panel Mounting: designed for secure and straightforward integration into existing control panels.
-
Compact Dimensions: measures 6.73" x 19.78" x 5.71", suitable for enclosure-constrained environments.
-
Rugged Industrial Build: constructed for high-reliability use in industrial automation systems.
-
System Compatibility: seamlessly integrates with SLC 500 main chassis and backplane connections.
The 1746-A2 provides compact, dependable I/O expansion for the SLC 500 platform with durable construction and easy installation.
