Description

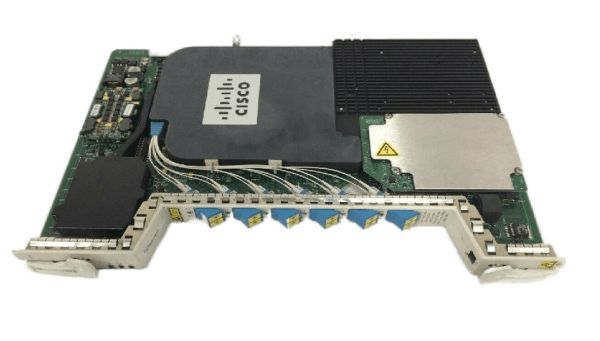

The Cisco 15454-40-SMR1-C is a single-module Reconfigurable Optical Add-Drop Multiplexer (ROADM) supporting up to 40 channels, designed for high-capacity optical networks. This unit integrates a wavelength-selective switch and a built-in optical pre-amplifier, providing flexible bandwidth provisioning and dynamic wavelength routing.
Technical Specifications
|
Condition
|
New/Never Used Surplus
|
| Brand |
Cisco
|
| Category |
|
| Part Number |
15454-40-SMR1-C
|
| Subcatecory |
Reconfigurable Optical Add-Drop Multiplexers (ROADM)
|
| Channels |
40 |
| Filter Type |
Wavelength Selective Switch (WSS) |
| Insertion Loss |
Max 7.0 dB |
VOA Dynamic Range
|
25–30 dB |
| Max Input Power |
27 dBm |
| Adjacent/Non-adjacent Crosstalk |
37 dB / 45 dB |
| Supported Platforms |
Cisco ONS 15454 |
| Connectors type |
LC (all the ports) |
| Weight |
8.00 LBS |
Information About 15454-40-SMR1-C
The 15454-40-SMR1-C is a compact, single-slot ROADM unit that enables dynamic add/drop of up to 40 wavelengths. Designed for Cisco ONS 15454 systems, it supports multirate optical transport and wavelength flexibility. With integrated optical amplification and wavelength-selective switching, it improves scalability and simplifies network operations.
Key Features:
-
40-channel ROADM: Supports flexible add/drop of 40 wavelengths in a single module.
-
Integrated pre-amplifier: Enhances optical signal strength and compensates for losses.
-
High-performance filtering: Includes a WSS with up to 45 dB non-adjacent crosstalk suppression.
-
Dynamic attenuation: Built-in VOA offers up to 30 dB dynamic range for signal balancing.
-
Compact integration: Occupies a single slot and reduces hardware footprint.
The 15454-40-SMR1-C delivers high-capacity wavelength routing and amplification for dense optical networks.
