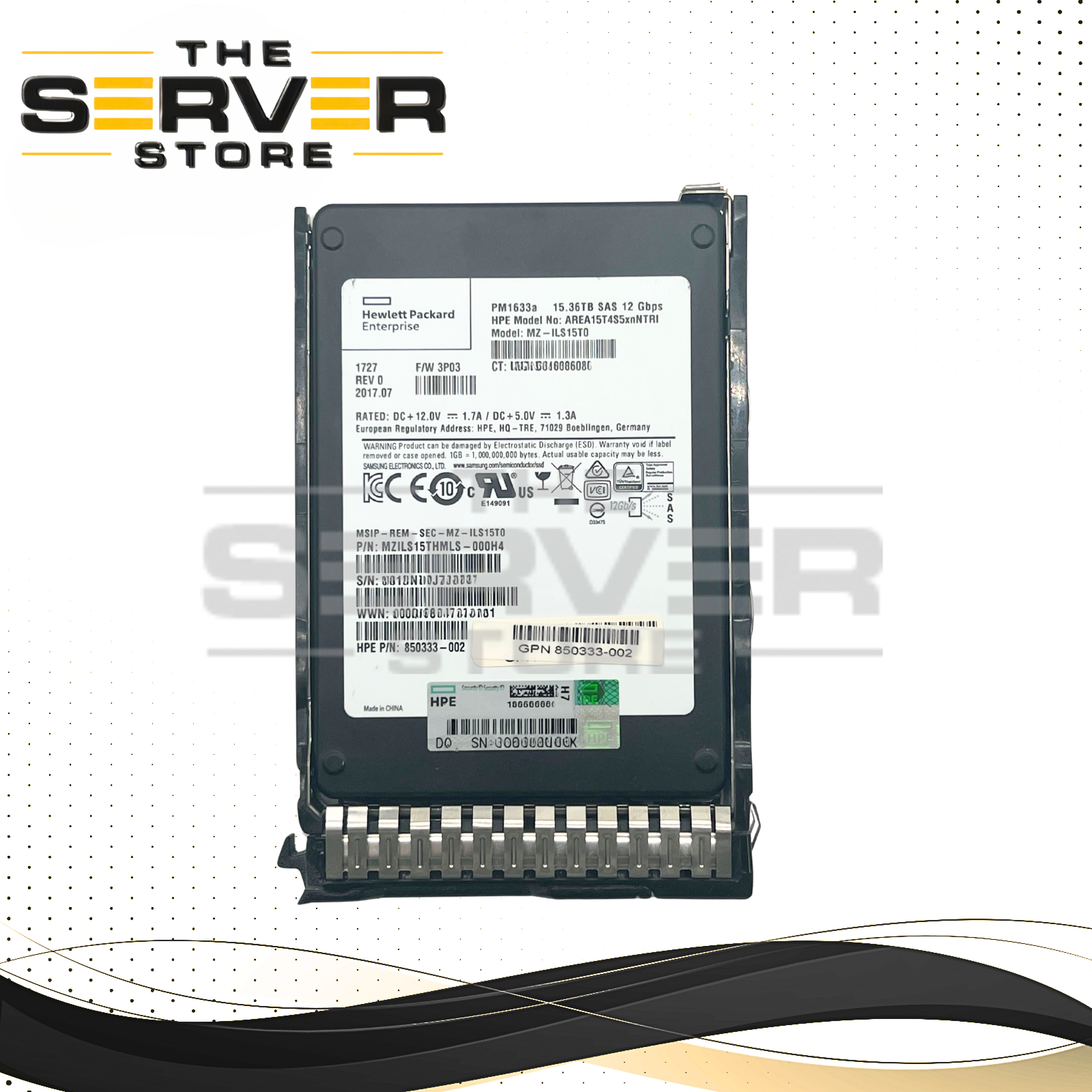

Samsung 15.36TB SAS 12G RI (with SFF SC Tray) 2.5" SSD MZ-ILS15T0 PM1633a Series HPE ProLiant Server G9

Part Numbers: MZILS15THMLS-000H4, MZ-ILS15T0, HPE 850333-002

The Samsung PM1633a 15.36TB Enterprise SSD is a high-capacity, 12Gb/s SAS (SAS-3) solid-state drive designed for read-intensive workloads, enterprise servers, cloud infrastructure, and big data environments.

---

Key Specifications

• Capacity: 15.36TB
• with SFF SC Tray
• Interface: SAS-3 Dual-Port (12Gbps, backward compatible)
• Form Factor: 2.5" SFF (15mm height)
• NAND Type: Samsung 3D V-NAND TLC
• Sequential Read/Write: Up to 1,250 MB/s
• Random Read/Write (4KB): Up to 200K / 35K IOPS

---

Reliability & Endurance

• Endurance: 1.0 DWPD (5 years)
• MTBF: 2,000,000 hours
• UBER: 1 per 10^17 bits read
• Power-Loss Protection (PLP): Yes
• Encryption: TCG Enterprise

---

Power

• Active: ~11W
• Idle: ~4.5W

---

Important Notes

• Requires SAS (not SATA) backplane
• 15mm height (check server bay compatibility)
• For Dell/Lenovo systems, proper caddy/tray may be required
