Description

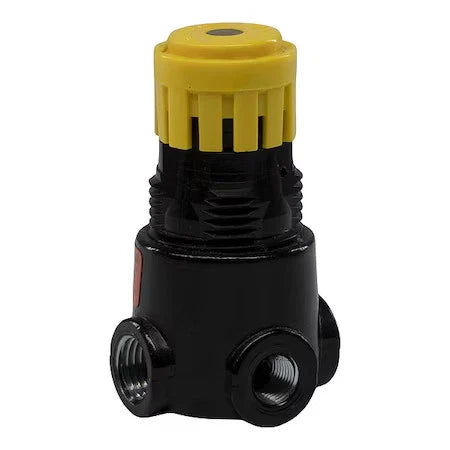

The Parker 14R113FC is a pneumatic pressure regulator designed to provide stable and accurate air pressure control in industrial compressed air systems. Part of the Prep-Air II 14R Series, it features a compact, gauge-less configuration suitable for panel and machine installations. This regulator supports reliable downstream pressure regulation for pneumatic tools, actuators, and control equipment.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Parker |
| Category |
Pneumatics |
| Part Number |
14R113FC |
| Subcategory |
Pneumatic Regulator |
| Product Type |
Air pressure regulator |
| Series |
Prep-Air II, 14R Series |
| Regulator Type |
Relieving |
| Maximum Pressure |
125 PSIG |
| Inlet / Outlet Port Size |
1/4 inch |
| Gauge Port Size |
1/8 inch |
| Gauge Included |
No |
| Engineering Level |
C |
| Replacement For |
14R113FB |
| Weight |
0.30 lbs |
Information About 14R113FC
The 14R113FC is a Parker pneumatic regulator from the Prep-Air II 14R Series, engineered for consistent pressure regulation in compressed air applications. It is built with a relieving design to automatically vent excess downstream pressure, improving system safety and response. The unit uses a 1/4 inch inlet and outlet port with a 1/8 inch gauge port for optional monitoring. As Engineering Level C, it serves as the direct replacement for the earlier 14R113FB model while maintaining compatibility with existing pneumatic systems.
Key Features:
- Prep-Air II Regulator Design: Provides stable downstream air pressure control for pneumatic systems.
- 14R Series Construction: Compact form factor suitable for machine and panel mounting.
- Relieving Regulator Operation: Automatically vents excess pressure to maintain setpoint accuracy.
- Gauge-Less Configuration: Allows flexible installation with optional external gauge connection.
- Standard Port Sizing: 1/4 inch inlet and outlet ports with a 1/8 inch gauge port.
- 125 PSIG Maximum Rating: Supports common industrial compressed air pressures.
- Engineering Level C: Updated design replacing the earlier 14R113FB model.
The 14R113FC delivers the reliability and precision required for industrial pneumatic pressure regulation.
