Description

The Allen-Bradley 1497-C-BASX-3-N is a control circuit transformer designed to provide reliable voltage conversion for industrial control systems. It features a 3 kVA power rating, supports various primary and secondary voltages, and is built for general-purpose applications with robust construction for dependable performance.





Technical Specifications

Condition	New/Never Used Surplus
Brand	Allen-Bradley
Category	Protection and Control Transformers
Part Number	1497-C-BASX-3-N
Subcategory	Dry Type Electrical Transformers
Input Voltage	220/440 V
Primary Voltage	240 - 480/220 - 440 V
Standard	CE,CUL,KC,UL
Wattage	130 Watt
Output Voltage	110 V
Secondary Voltage	120/110 V
Weight	3.13 kgs





Information About 1497-C-BASX-3-N

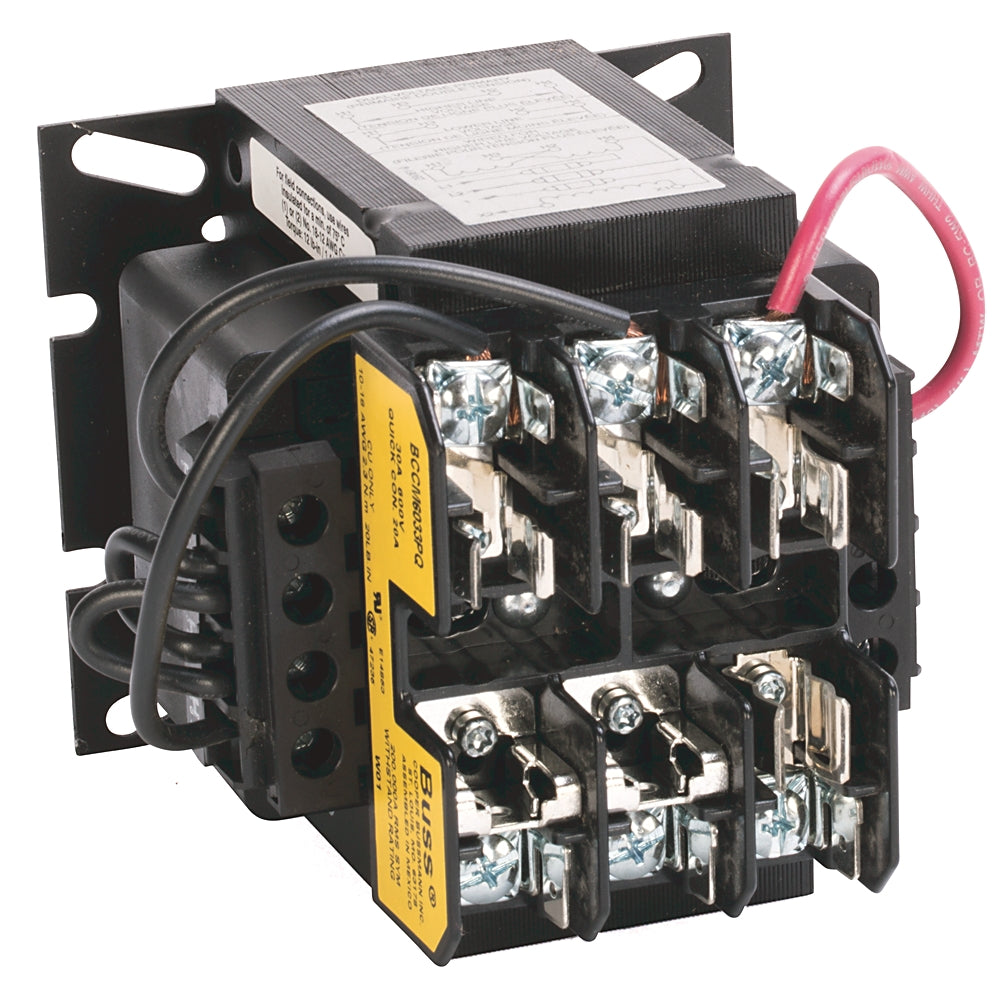

The Allen-Bradley 1497-C-BASX-3-N is a control circuit transformer designed to step down higher voltages to lower control voltages in industrial applications.

Key Features:

• Power Rating: 130 VA

• Primary Voltage:

  • 240/480V at 60 Hz

  • 220/440V at 50 Hz

• Secondary Voltage:

  • 110V at 50 Hz

  • 120V at 60 Hz

• Inrush VA: 907 VA at 85% of rated secondary voltage with a 40% power factor

• Fuse Blocks: Equipped with two primary and one secondary fuse blocks

• Factory Installed Options: No cover and no secondary fuse included

• Primary Fuse Size: 3A at 208V (when primary and secondary protection is used per NEC)

• Secondary Fuse Size: 9A at 24V (per NEC)

• Width: 3.5 inches (88.90 mm)

• Depth: 3-7/8 inches (98.00 mm)

• Height: 3-13/32 inches (86.61 mm)

This transformer is suitable for applications requiring reliable voltage conversion in control circuits, ensuring consistent performance in industrial environments.
