Description

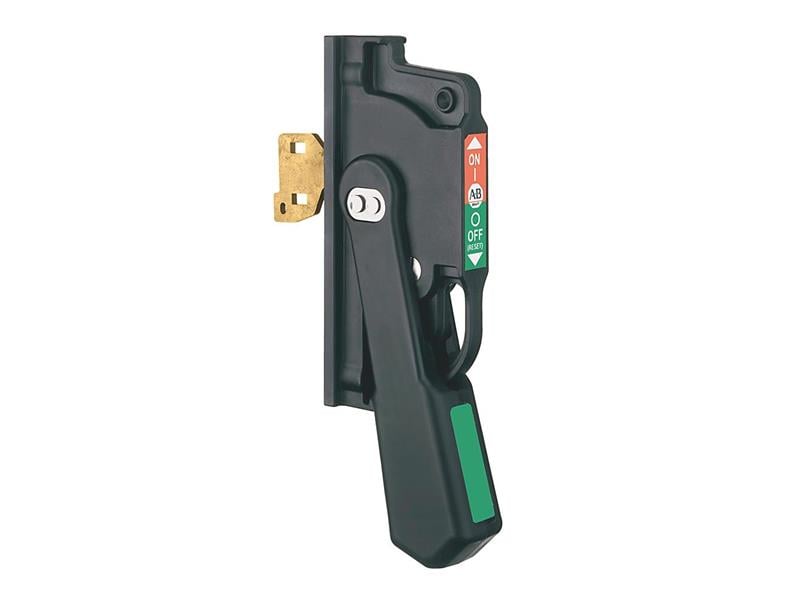

The Allen-Bradley 1494U-HP1 is a universal disconnect handle designed for use with the 1494U series flange-mounted disconnect switches.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Allen-Bradley |
| Category |
|
| Part Number |
1494U-HP1 |
| Subcategory |
|
| Mounting Type |
Flange |
| Material |
Plastic |
| Ampere Rating |
30–200 A
|
| Series |
1494U |
| Poles |
3-pole or 4-pole configurations available (depending on model) |
| Voltage Rating |
Typically up to 600V AC |
| Weight |
0.69 kgs |
Information About 1494U-HP1
The Allen-Bradley 1494U-HP1 is a non-metallic operating handle designed for use with the 1494U Universal Visible-Blade Flange Disconnect Switches, supporting current ratings from 30 A to 200 A. Constructed from durable plastic, this handle is suitable for various industrial applications requiring reliable and safe manual operation of disconnect switches.
Key Features:
-
Material: Non-metallic (plastic)
-
Compatible Switch Ratings: 30 A, 60 A, 100 A, and 200
-
Mounting Orientation: Suitable for both right or left flange mountin
-
Enclosure Compatibility: Designed for use with enclosures rated **NEMA Type 1, 3R, 4, 4X, and 12*
-
Compliance: Meets UL, CSA, and CE standard
The 1494U-HP1 handle is an integral component for ensuring safe and efficient operation of Allen-Bradley 1494U disconnect switches, offering flexibility in installation and adherence to international safety standards.
