Description
The Allen-Bradley 1494R-N60 is a 60A, 3-pole, non-fusible rotary disconnect switch kit from the Bulletin 1494R series, designed for variable-depth door mounting in NEMA Type 1 and 12 enclosures.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Allen-Bradley
|
| Category |
|
| Part Number |
1494R-N60
|
| Subcatecory |
|
| Amperage |
60 Amp |
Conductor Size
|
14-4 AWG |
| Contact Configuration |
1 NO, 1 NC |
| Mounting Type |
Door |
| Operating Cycles |
10000 |
| Temperature Rating |
-20 to 60°C Open, -20 to 40°C Enclosed (Ambient) |
|
Voltage
|
660 Volt |
| Connection Type |
1/4-28 Screw Lug |
| Load Rating |
15 hp at 200 - 208 V, 15 hp at 230 V, 30 hp at 460 V, 40 hp at 575 V, 11 kW at 220 - 240 V, 22 kW at 280 - 440 V, 37 kW at 500 - 600 V |
| Number of Poles |
3 Pole |
| Standard |
CE,CSA,KC,UL |
| Type |
Rotary, Non-Fusible, Variable Depth |
| Weight |
2.01 lbs |
Information About 1494R-N60

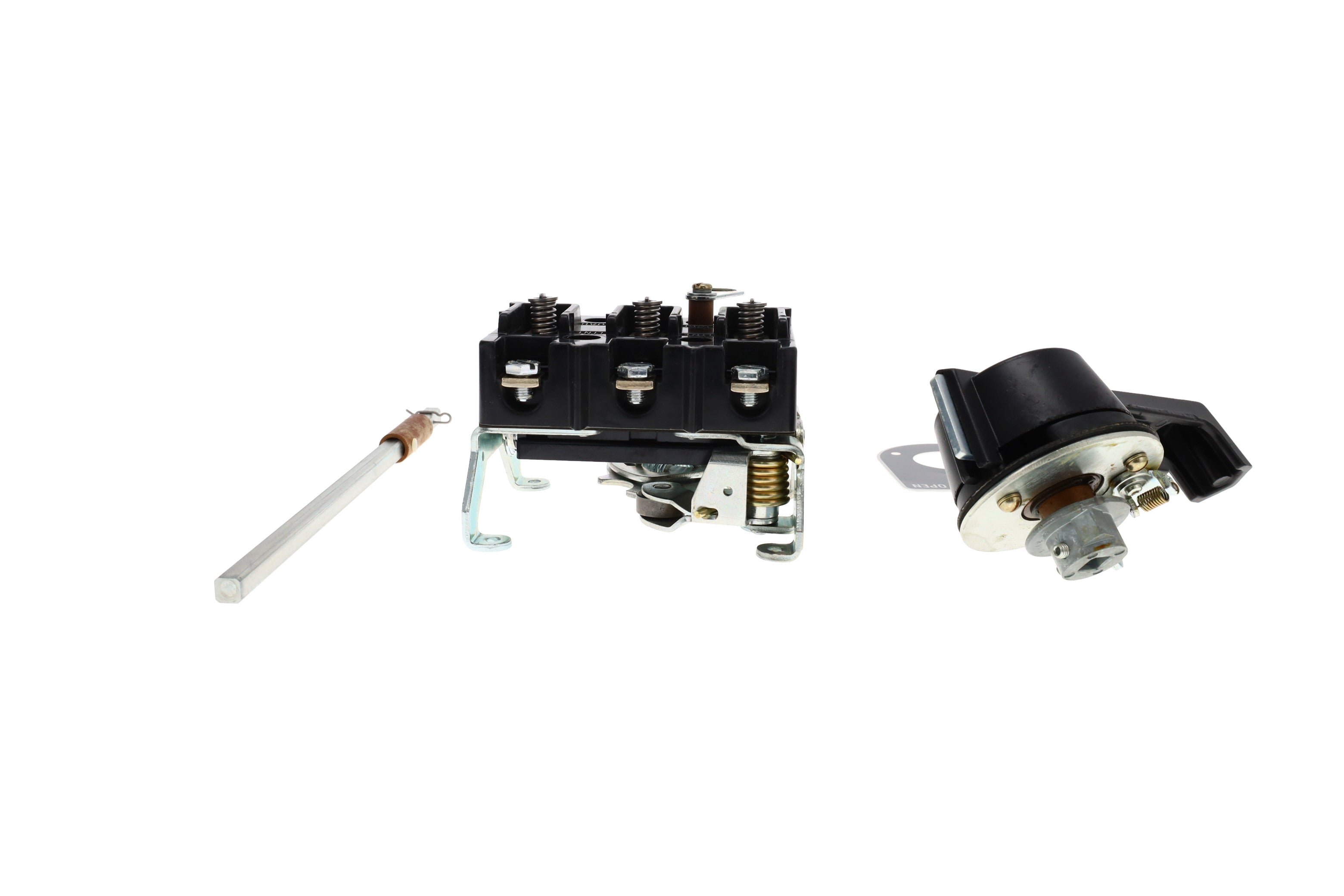

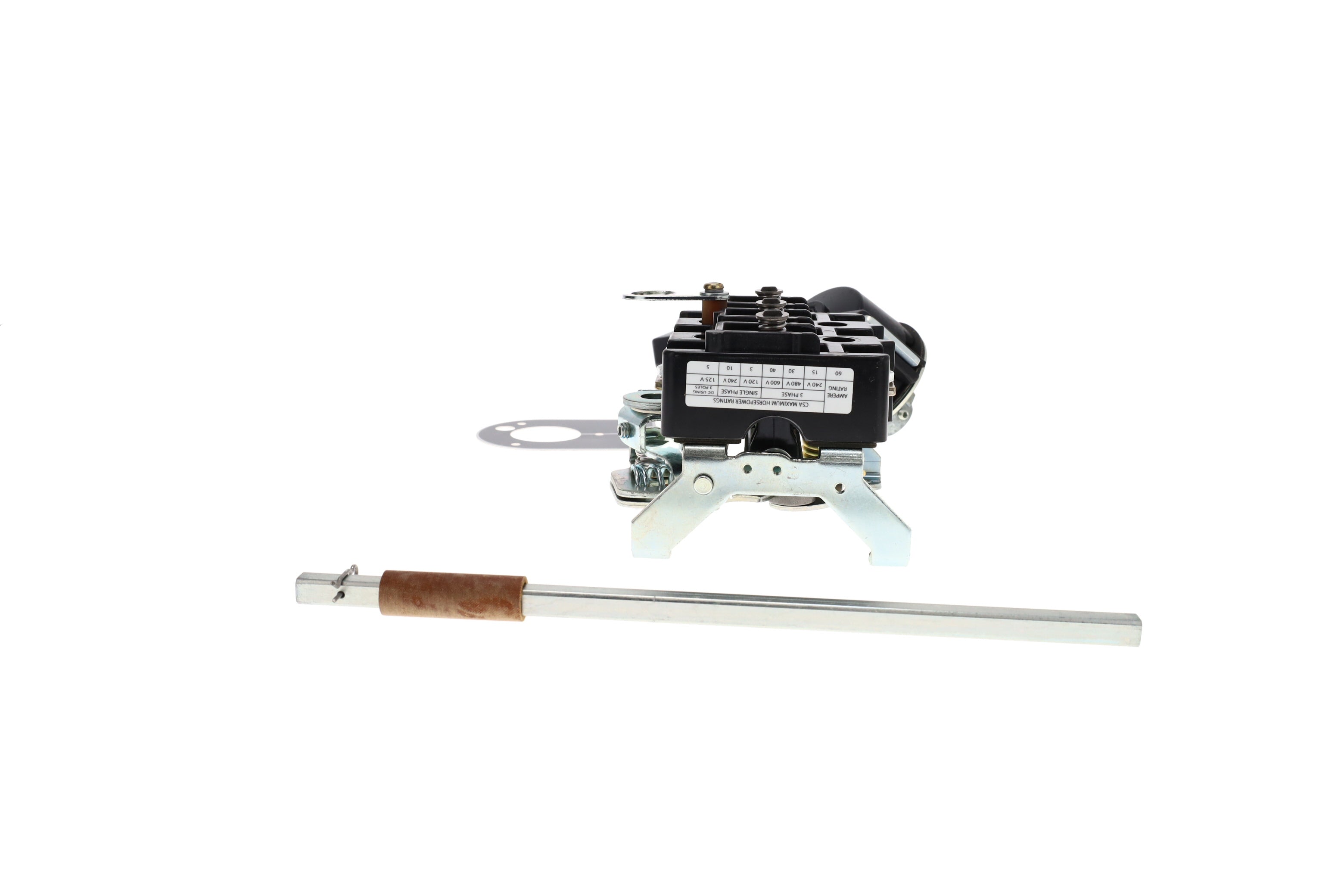

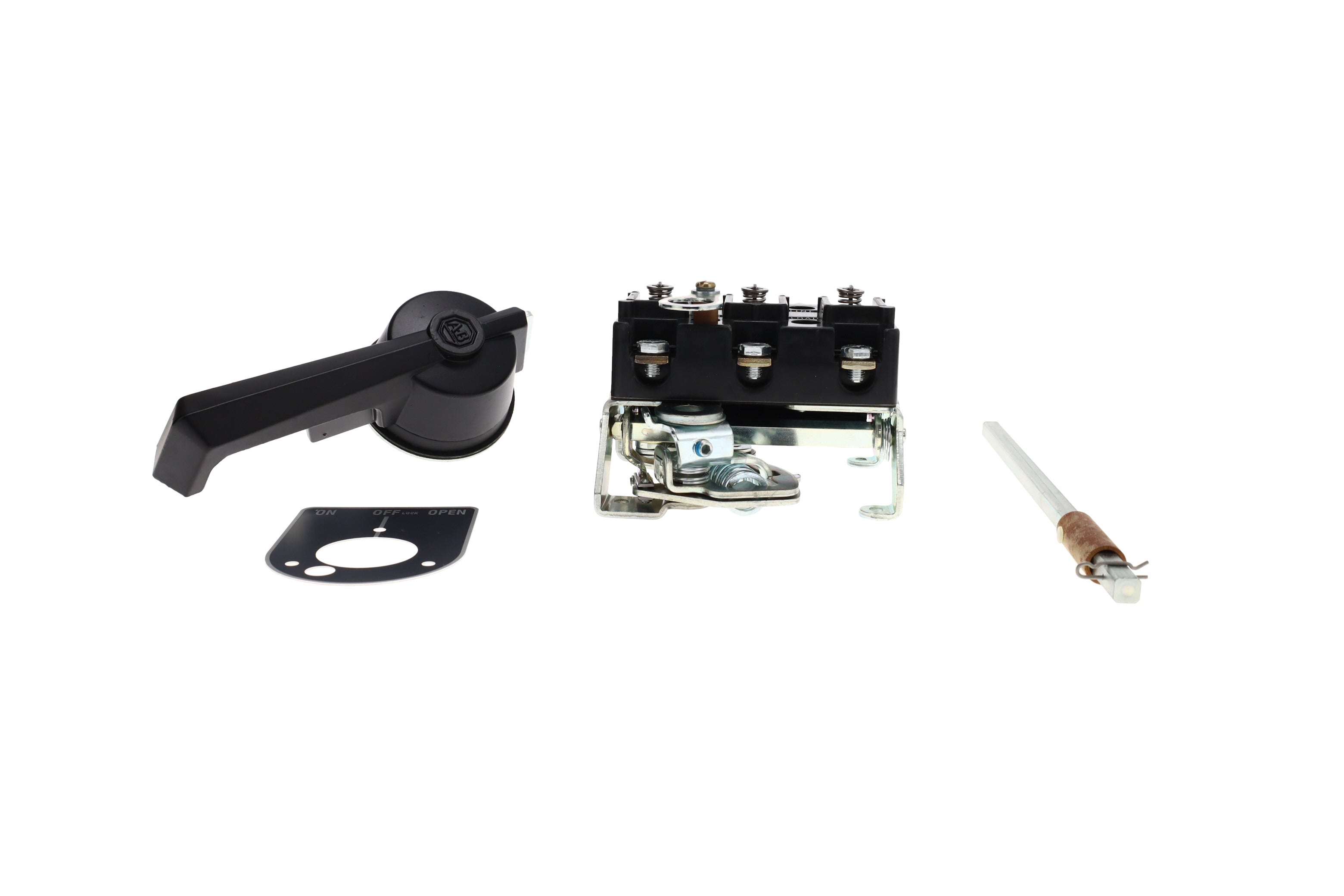

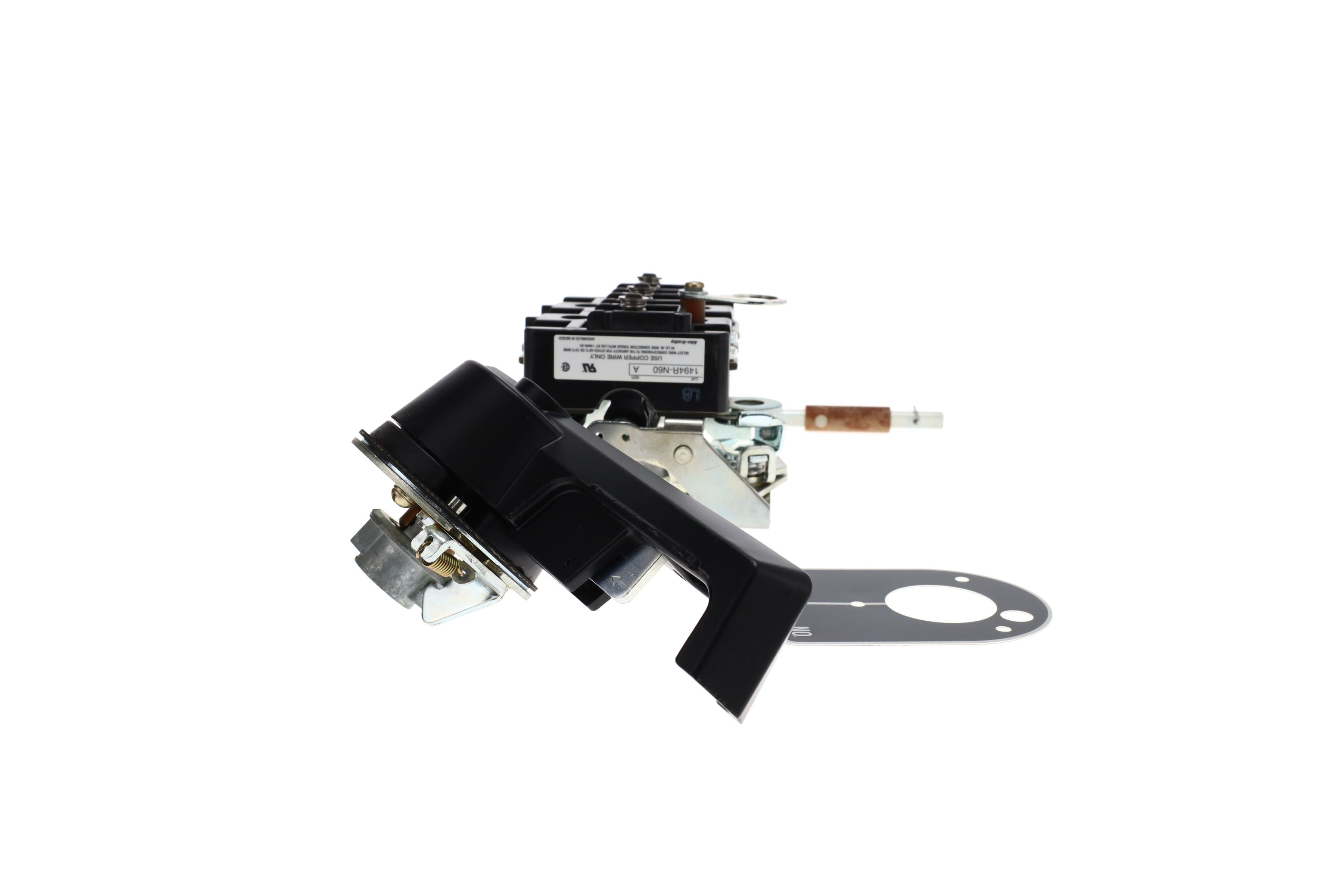

The Allen-Bradley 1494R-N60 is a 60A, 3-pole non-fusible rotary disconnect switch kit designed for variable-depth, door-mounted installation in industrial control panels. It provides a reliable means of manually isolating electrical circuits for maintenance and emergency shutoff. Part of the Bulletin 1494R series, this kit supports NEMA Type 1 and 12 enclosures and includes the switch mechanism, operating handle, connecting rod, and hitch pin for a complete installation solution.
Key Features:
- Product Type: Disconnect Switch Kit
- Series: Bulletin 1494R
- Current Rating: 60 Amperes
- Voltage Rating: Up to 600V AC
- Number of Poles: 3
- Fusibility: Non-fusible (external overcurrent protection required)
- Mounting Type: Variable-depth door-mounted
- Enclosure Compatibility: NEMA Type 1 and Type 12
- Components Included: Switch mechanism, operating handle, connecting rod, hitch pin
- Lockout/Tagout Capability: Yes
- Certifications: UL Listed, CSA Certified, CE Marked
This disconnect switch kit is ideal for industrial applications requiring a manual power disconnection solution.
