Description

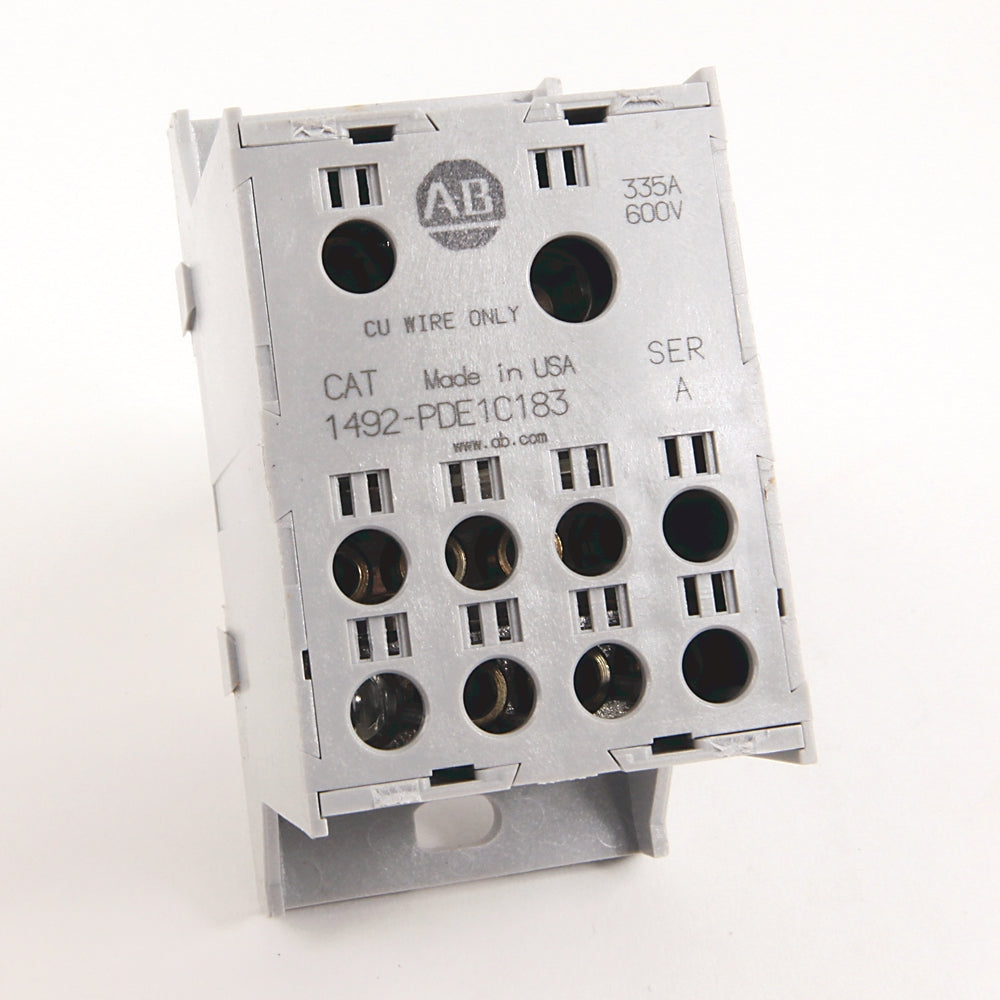

The Allen-Bradley 1492-PDE1C183 is an enclosed power distribution block designed for safe and efficient power splitting in electrical panels. It features a compact, insulated housing for touch-safe operation and supports high current distribution in industrial control systems.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Allen-Bradley |
| Category |
Panel Accessories |
| Part Number |
1492-PDE1C183 |
| Subcategory |
Power Distribution Blocks
|
| Amperage |
335 Amp |
| Connection Type |
Screw |
| Standard |
CCC,CE,CSA,KC,UL |
| Type |
Enclosed |
| Applications |
Power Distribution |
| Number of Poles |
1 Pole |
| Temperature Rating |
125°C |
| Voltage |
1000 Volt |
| Openings per Pole (Line Side) |
2 Openings |
| Openings per Pole (Load Side) |
8 Openings |
| Weight |
0.75 kgs |
Information About 1492-PDE1C183
The Allen-Bradley 1492-PDE1C183 is an enclosed power distribution block designed to safely split primary power sources into multiple secondary circuits within electrical panels. Featuring a compact, insulated housing, it ensures touch-safe operation and efficient power distribution in industrial control systems.
Key Features:
-
Current Rating: 335 Amps per pole
-
Voltage Rating: 600 V AC/DC
-
Number of Poles: Single-pole configuration
-
Line Side Connections: 2 openings
-
Load Side Connections: 8 openings
-
Connector Material: Copper
-
Housing Material: Rugged thermoplastic providing IP20 protection from the front
-
Mounting Options: Panel mount with easy ganging for multi-pole assembly
-
Certifications: UL Listed, UL Recognized, CSA Certified, CE Compliant, RoHS Compliant
The 1492-PDE1C183's design includes captive termination screws to prevent loss during installation and maintenance. Its modular nature allows for straightforward assembly into multi-pole configurations, offering flexibility in various applications. The thermoplastic housing not only ensures durability but also provides IP20-rated protection against accidental contact with live components.
