Description

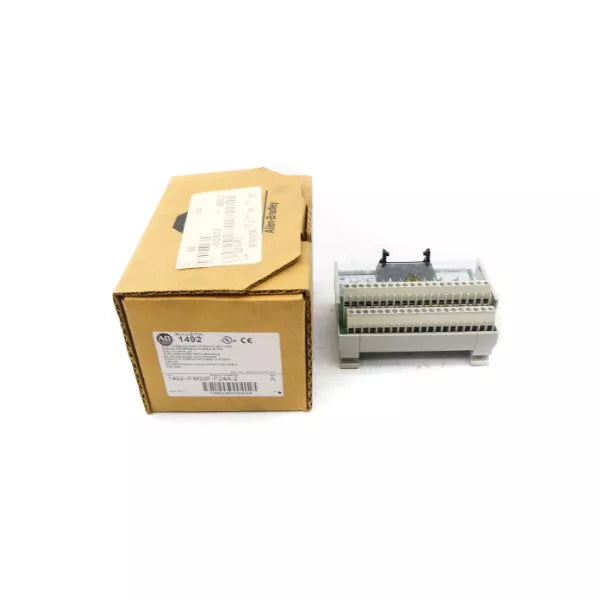

The 1492-IFM20F-F24A-2 is a 20-point fusible digital interface module (IFM) designed for high-density signal distribution in industrial control systems. It provides fused protection for each I/O point, supporting 24V DC applications, and connects field wiring to controllers through prewired cables.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Allen-Bradley
|
| Category |
|
| Part Number |
1492-IFM20F-F24A-2
|
| Subcatecory |
|
| Amperage |
2 Amp Per Circuit, 12 Amp Per Module |
Connection Type
|
20 Pins |
| Temperature Rating |
0 - 60°C |
| Voltage |
10-30 VAC/VDC |
| Applications |
Dig Mdl with Fixed Trm Block |
| Standard |
C-TICK,CCC,CE,CUL,NRTL,UL |
| Type |
20-Pin, Fusible |
| Weight |
0.40 lbs |
Information About 1492-IFM20F-F24A-2

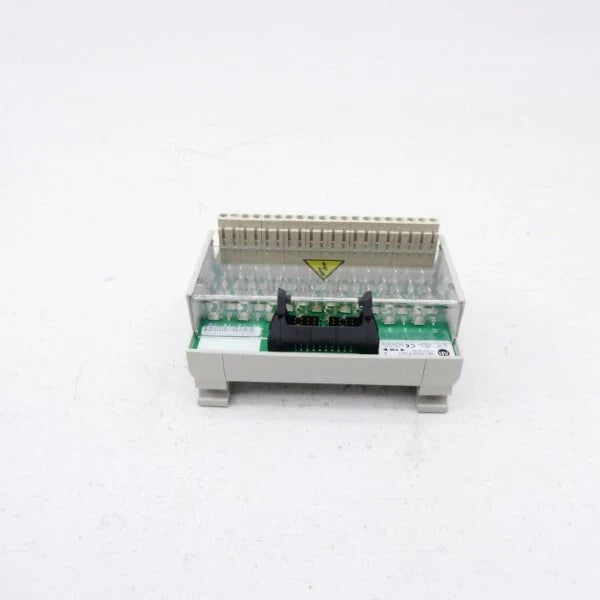

The Allen-Bradley 1492-IFM20F-F24A-2 is a 20-point fusible digital interface module (IFM) designed to streamline wiring between field devices and programmable logic controllers (PLCs). It features 24V AC/DC blown fuse indicators and extra terminals for inputs, enhancing both safety and troubleshooting efficiency.
Key Features:
-
Voltage Range: 10–30V AC/DC
-
Maximum Current:
-
Per Circuit: 2 A
-
Per Module: 12 A
-
Fuse Type: 5 x 20 mm fuse clips (fuses not included)
-
Indicators: Integrated blown fuse indicators for each circuit
-
Terminal Configuration: Two field-side terminals per I/O point
-

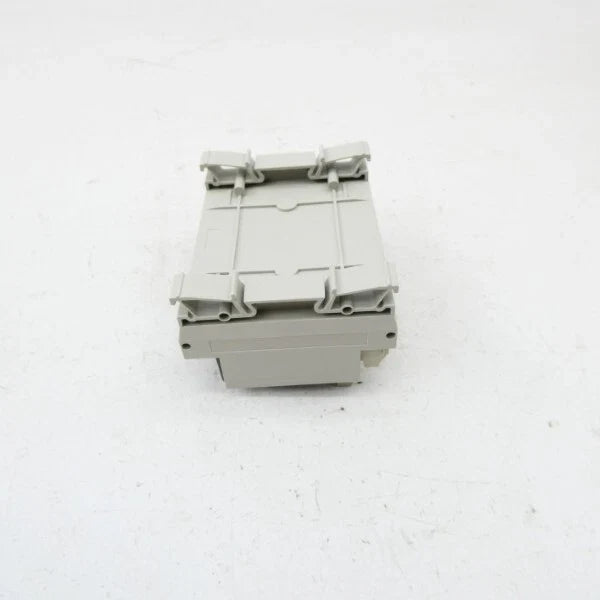

Mounting: 35 mm DIN rail
-
Dimensions (H x W x D): 83.06 mm x 109.98 mm x 70.61 mm
-
Operating Temperature: 0 to 60°C (32 to 140°F)
-
Certifications: UL, cUL, CE, FM
This module is compatible with various Allen-Bradley I/O platforms, including Bulletin 1746, 1756, 1769, 1794, and 1771 modules. Its design facilitates quick installation and maintenance, making it ideal for applications requiring reliable signal distribution and protection.
