Description
The Allen-Bradley 140G-J-TLA13 is a terminal lug kit designed for use with J-frame molded case circuit breakers. Supporting both aluminum and copper conductors, this accessory ensures secure and compliant wire termination for circuit protection installations.
Technical Specifications
|
Condition
|
New/Never Used Surplus
|
| Brand |
Allen-Bradley
|
|
Category
|
Circuit Breaker Accessories
|
|
Part Number
|
140G-J-TLA13
|
| Subcatecory |
Circuit Breaker Accessories
|
| Series |
140G Circuit Breaker Accessories |
| Frame Size Compatibility |
J-Frame |
| Conductor Range |
14–1/0 AWG (2.5–50 mm²) |
| Conductor Material |
Copper / Aluminum |
| Pieces per Package |
3 |
| Mounting Type |
Lug-to-Breaker Terminal |
| Weight |
0.11 kgs |
Information About 140G-J-TLA13

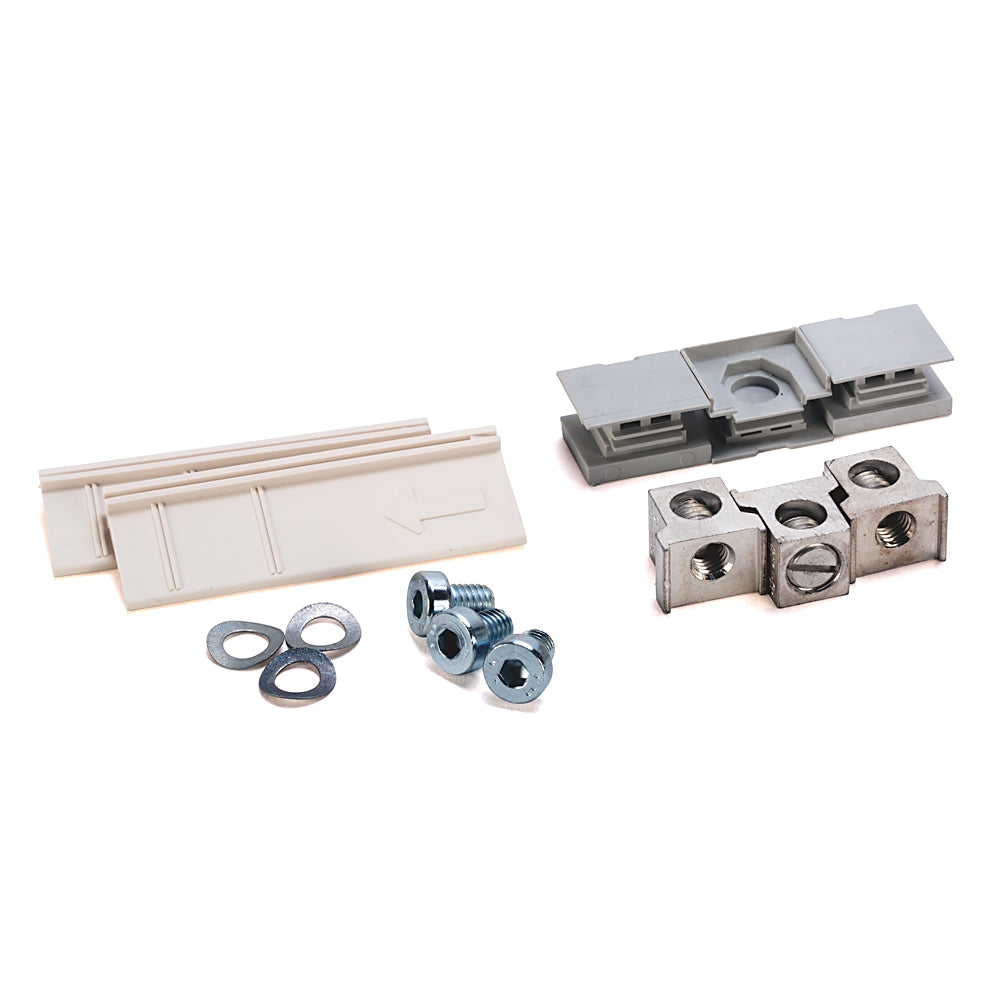

The 140G-J-TLA13 is a factory-packaged terminal lug kit compatible with Allen-Bradley 140G series molded case circuit breakers, specifically for Frame Size J. Each lug accommodates a single conductor ranging from 14 AWG to 1/0 AWG (2.5–50 mm²) and is rated for both Cu (Copper) and Al (Aluminum) wires. The kit includes three lugs per package, matching the three-pole breaker configuration. Manufactured to meet UL standards, this accessory simplifies field wiring and ensures solid, durable electrical connections.
Key Features:
-
Frame J Compatibility: Specifically designed for J-frame 140G molded case circuit breakers.
-
Wide Wire Range: Accepts 14 to 1/0 AWG copper or aluminum conductors (2.5–50 mm²).
-
Aluminum/Copper Rated (Cu/Al): Supports safe termination for both wire types, ensuring installation flexibility.
-
Factory Kit (3 Pieces): Includes three lugs, ideal for standard 3-pole MCCB installations.
-
Series A Accessory: Ensures compatibility with Allen-Bradley’s latest breaker series.
-
UL-Compliant Construction: Built to meet safety and performance standards for industrial and commercial applications.
The 140G-J-TLA13 terminal lug kit offers reliable wire termination for molded case breakers, enabling fast and secure field installations.
