Description

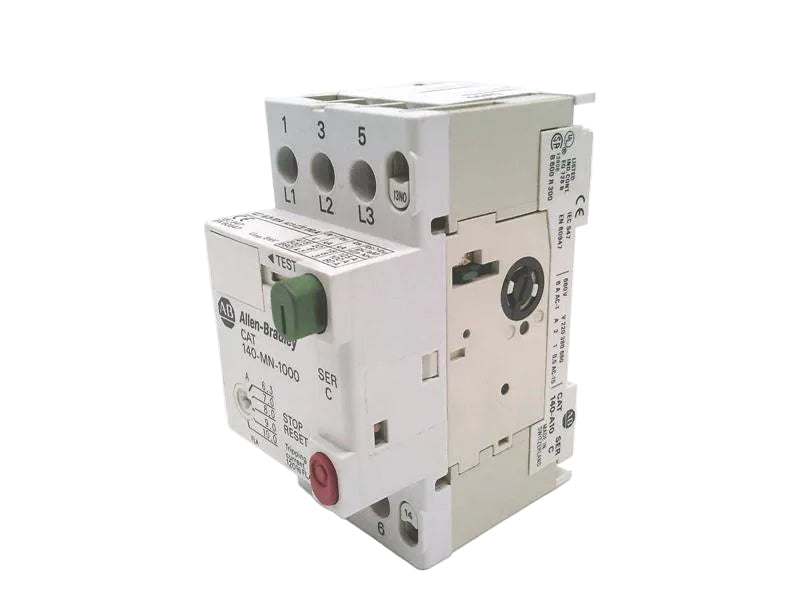

The Allen-Bradley 140-MN-1000 is a 3-pole manual motor starter from the Bulletin 140 series, designed to provide reliable overload and short-circuit protection for motors in industrial applications.
Technical Specifications
| Condition |
New/Never Used Surplus |
| Brand |
Allen-Bradley
|
| Category |
|
| Part Number |
140-MN-1000
|
| Subcatecory |
|
| Current Rating |
6.3 – 10 Amps (adjustable thermal overload) |
Number of Poles
|
3 |
|
Voltage Rating
|
415 / 690 VAC |
| Trip Type |
Thermal-Magnetic |
| Magnetic Trip Setting |
Fixed at 11 × maximum thermal setting |
| Interrupting Capacity |
Up to 100 kA |
| Mounting |
DIN rail |
| Weight |
0.64 lbs |
Information About 140-MN-1000

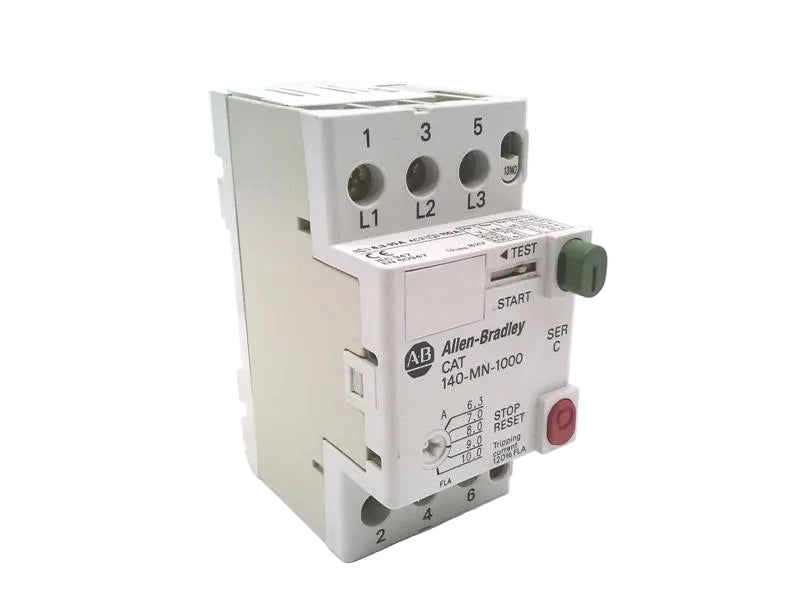

The Allen-Bradley 140-MN-1000 is a 3-pole manual motor starter designed to provide both overload and short-circuit protection for motors in industrial control systems. It features an adjustable thermal overload range and a fixed magnetic trip setting, ensuring dependable protection and operation. With DIN rail mounting and compact design, it is ideal for high-density control panels and machinery requiring straightforward motor protection.
Key Features:
- Product Type: Manual Motor Starter
- Series: Bulletin 140-MN
- Number of Poles: 3

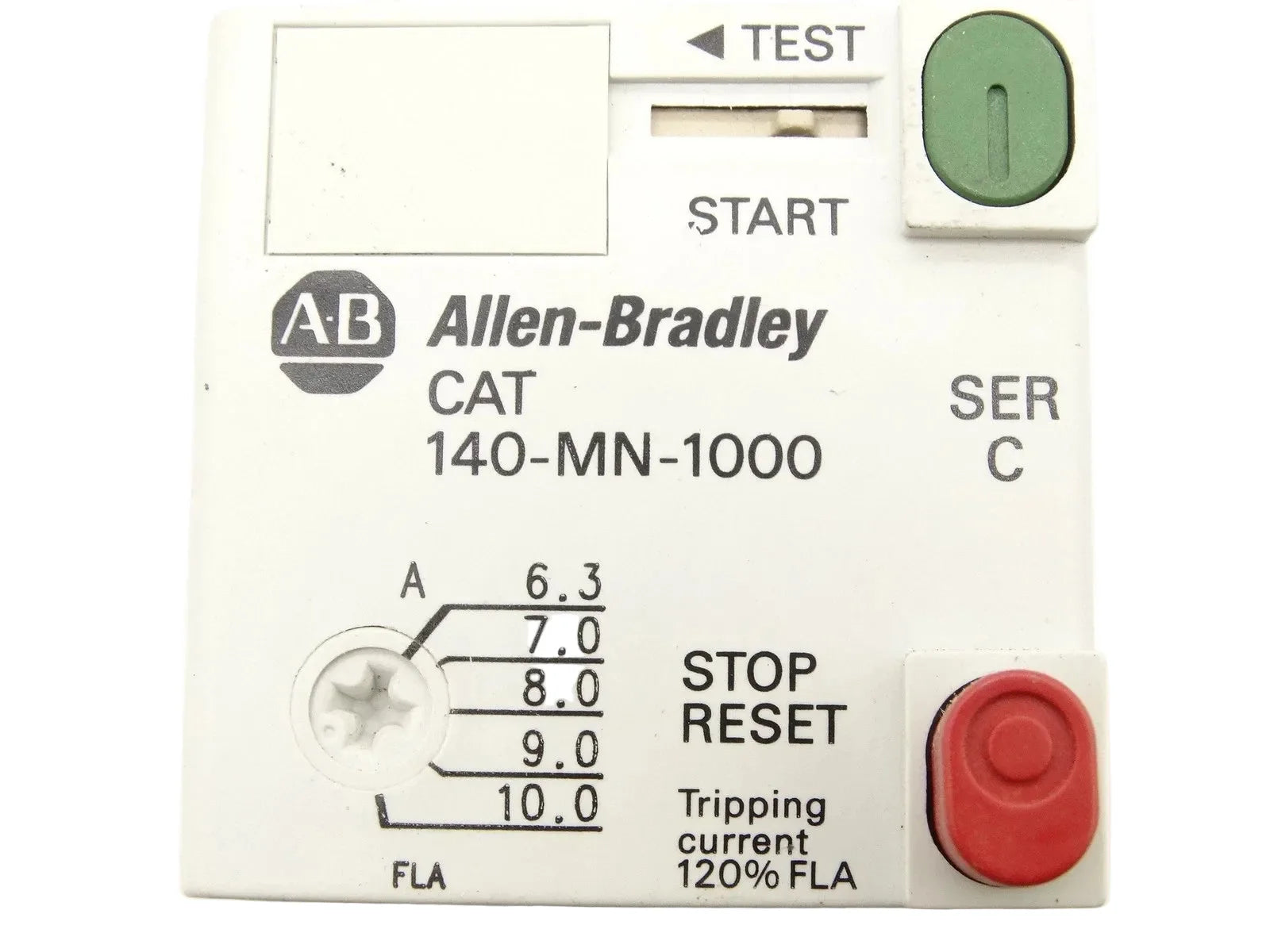

- Thermal Overload Range: 6.3 – 10 A (adjustable)
- Magnetic Trip Setting: Fixed at 11 × thermal setting
- Operational Voltage: Up to 690V AC
- Interrupting Capacity: Up to 100 kA
- Mounting Type: DIN rail (35 mm, EN 50022)
- Trip Class: Class 10
- Switching Duty: AC-3 utilization category
- Operating Temperature: -25 to 55 °C (-13 to 131 °F)
- Storage Temperature: -40 to 85 °C (-40 to 185 °F)
- Relative Humidity: 5% to 95% non-condensing
- Enclosure Type Rating: Open-style
- Certifications: UL Listed, CSA Certified, CE Marked
This motor starter is ideal for protecting small- to medium-sized motors used in fans, pumps, conveyors, and general industrial equipment. Its simple manual operation and compact, robust design make it well-suited for a wide range of automation and control applications.
